59111 - Toro Easy Empty Grass Catcher (SN: 008000001 - 008999999) (1988) Mower Assembly Parts Diagram

Easy Empty Grass Catcher

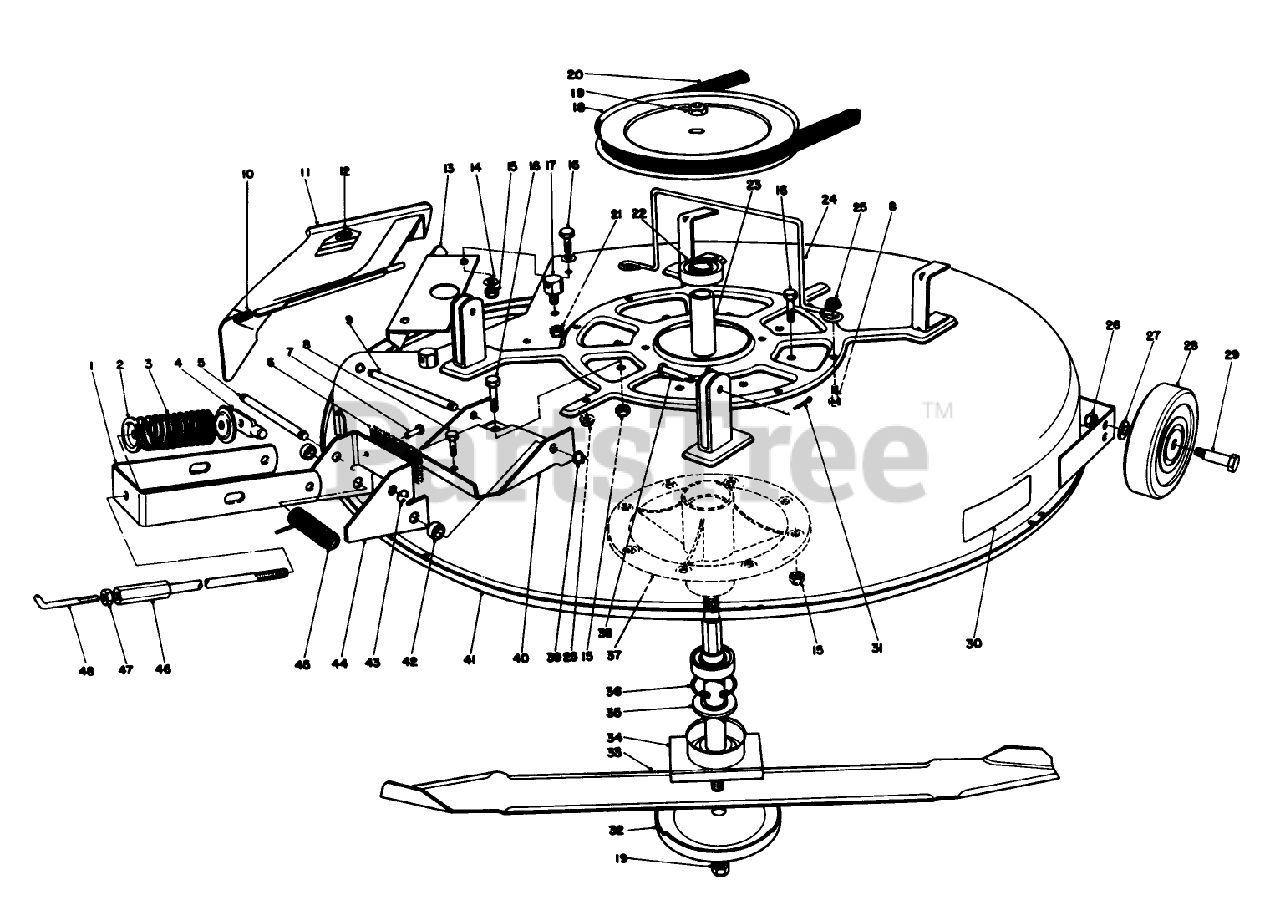

Mower Assembly Parts Diagram

  • Title

1

Toro 47-1180

See Supercession: 47-1180-01
(Superseded to 47-1180-01)

$

$

Not available

2

Toro 47-1140

RETAINER-SPR. TOP

$

$

Not available

3

Toro 47-0960

SPRING-COMPRESSION

$

$

Not available

4

Toro 47-1200

SHAFT-DECK ADJ.

$

$

Not available

5

Toro 47-1230

DISCONTINUE

$

$

Not available

6

Toro 47-4210

Pad-Brake

$

$

Currently unavailable

7

Toro 3295-43

DISCONTINUED

$

$

Not available

8

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

9

Toro 47-1670

CLEVIS PIN

$47.99

$

Usually ships in 3-6 days

0

10

Toro 28-8010

SPRING

$28.99

$

Usually ships in 3-6 days

0

11

Toro 44-5930

DEFLECTOR ASM

$215.99

$

Usually ships in 3-6 days

0

12

Toro 54-9220

See Supercession: 93-1122
(Superseded to 93-1122)

$10.99

$

In Stock, Qty 9

0

13

Toro 44-5720

See Supercession: 44-5720-03
(Superseded to 44-5720-03)

$

$

Not available

14

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

15

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

16

Toro 3224

Screw

$

$

Currently unavailable

17

Toro 28-7350

POST-PIVOT

$42.99

$

Usually ships in 3-6 days

0

18

Toro 47-1350

PULLEY

$302.99

$

In Stock, only 2 left!

0

19

Toro 17-0980

NUT-SPECIAL

$12.99

$

In Stock, only 2 left!

0

20

Toro 47-1420

V-BELT, DECK

$41.99

$

In Stock, only 2 left!

0

21

Toro 32153-2

NUT-LOCK, SIDE
(Superseded to 603773)

$2.99

$

In Stock, Qty 20+

0

22

Toro 251-297

BEARING-BALL

$24.99

$

In Stock, Qty 10

0

23

Toro 47-0100

See Supercession: 83-7020
(Superseded to 83-7020)

$30.99

$

In Stock, only 2 left!

0

24

Toro 60-9730

GUIDE-BELT

$

$

Not available

25

Toro 32128-10

NUT-LOCK, HHF

$0.99

$

In Stock, Qty 7

0

26

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

27

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

28

Toro 61-9760

WHEEL-DECK

$53.99

$

In Stock, only 2 left!

0

29

Toro 56-6590

See Supercession: 136-7198
(Superseded to 136-7198)

$1.99

$

In Stock, Qty 8

0

30

Toro 47-7240

DISCONTINUED

$

$

Not available

31

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

32

Toro 7-3522

See Supercession: 92-6313
(Superseded to 92-6313)

$58.99

$

In Stock, only 2 left!

0

33

Toro 33-4750

See Supercession: 33-4750-03
(Superseded to 33-4750-03)

$63.99

$

In Stock, only 2 left!

0

34

Toro 47-0090

SPINDLE SHAFT WA

$302.99

$

In Stock, only 1 left!

0

35

Toro 47-0110

SPACER-SPINDLE

$1.99

$

Usually ships in 3-6 days

0

36

Toro 32120-11

See Supercession: 32151-75
(Superseded to 32151-75)

$3.49

$

In Stock, Qty 10

0

37

Toro 56-7030

SPINDLE

$

$

Not available

38

Toro 283-2

PIN-CLEVIS

$14.99

$

In Stock, only 1 left!

0

39

Toro 32151-57

RING-RETAINING

$5.99

$

In Stock, only 3 left!

0

40

Toro 47-1240

DISCONTINUED

$

$

Not available

41

Toro 47-1600

See Supercession: 95-7498
(Superseded to 95-7498)

$

$

Not available

42

Toro 47-1900

DISCONTINUED

$

$

Not available

43

Toro 32120-18

E-RING

$1.49

$

In Stock, Qty 16

0

44

Toro 47-1610

DISCONTINUED

$

$

Not available

45

Toro 40-6230

SPRING

$

$

Not available

46

Toro 47-1150

DISCONTINUED

$

$

Not available

47

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 5

0

48

Toro 47-1130

DISCONTINUED

$

$

Not available
