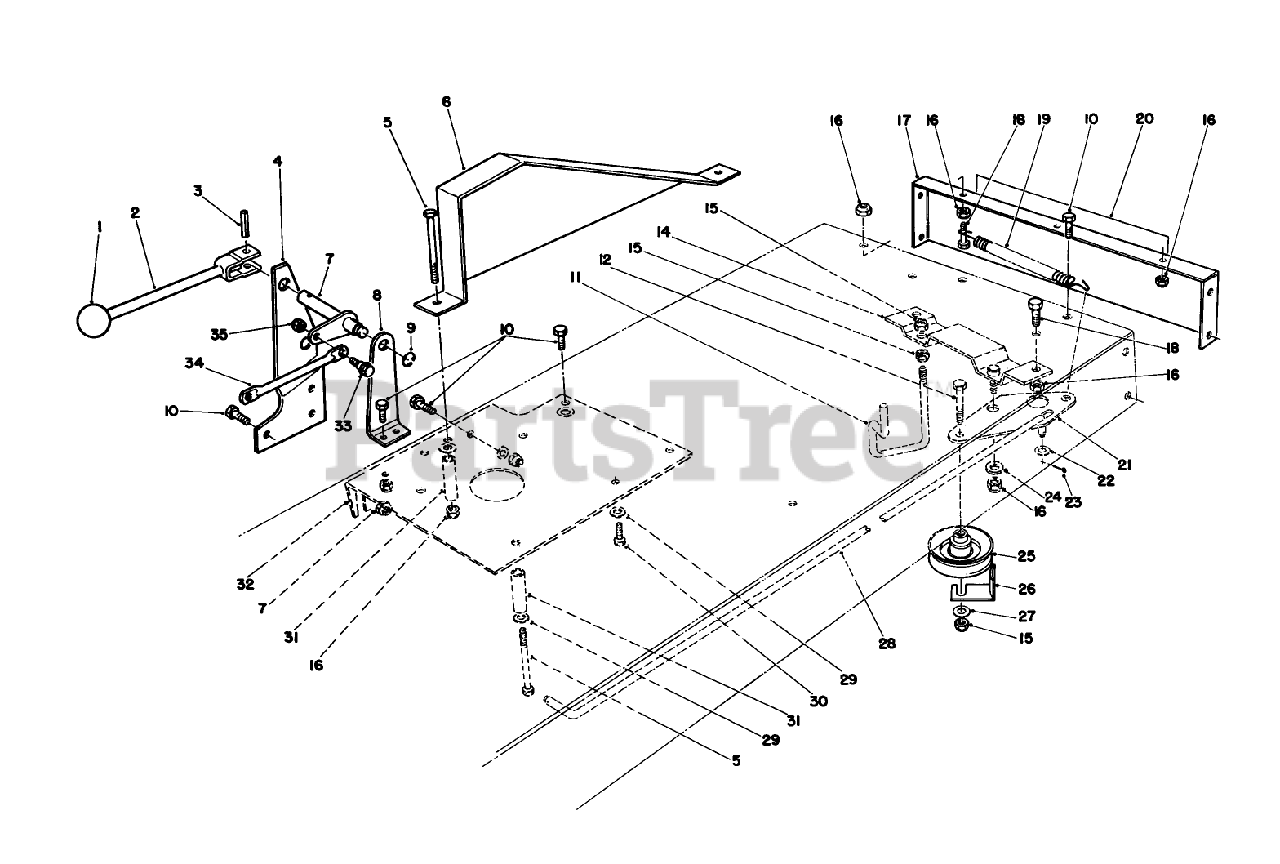

59178 - Toro 32" Easy Empty Bagger (SN: 020000001 - 029999999) (1992) Traction Assembly Parts Diagram

32" Easy Empty Bagger

Traction Assembly Parts Diagram

  • Title

1

Toro 233-48

KNOB

$13.99

$

Usually ships in 3-6 days

0

2

Toro 80-2400

See Supercession: 80-2400-03
(Superseded to 80-2400-03)

$

$

Not available

3

Toro 32121-25

PIN-ROLL

$4.99

$

Usually ships in 3-6 days

0

4

Toro 80-2350

See Supercession: 80-2350-03
(Superseded to 80-2350-03)

$

$

Not available

5

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$2.49

$

In Stock, Qty 13

0

6

Toro 47-1220

DISCONTINUED

$

$

Not available

7

Toro 80-2370

PIVOT SHAFT WA

$

$

Not available

8

Toro 80-2340

See Supercession: 80-2340-03
(Superseded to 80-2340-03)

$24.99

$

Usually ships in 3-6 days

0

9

Toro 32120-47

RING-RETAINING, EXTERNAL

$1.49

$

In Stock, Qty 10

0

10

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

11

Toro 47-0500

DISCONTINUED

$

$

Not available

12

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

14

Toro 80-2500

TRACT SUPT BRKT WA *B

$

$

Not available

15

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

16

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

17

Toro 47-0730

REAR FRAME *R

$250.99

$

Usually ships in 3-6 days

0

18

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

19

Toro 27-8960

TRACTION SPRING

$

$

Not available

20

Toro 76-1330

DECAL - REAR FRAME

$

$

Not available

21

Toro 80-2510

TRACT PIVOT BRKT *B

$31.99

$

Usually ships in 3-6 days

0

22

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

23

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

24

Toro 3256-57

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

25

Toro 12-5820

PULLEY-IDLER

$33.99

$

In Stock, only 2 left!

0

26

Toro 12-9020

DISCONTINUED

$

$

Not available

27

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

28

Toro 47-0490

TRACTION ROD

$301.99

$

Usually ships in 3-6 days

0

29

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

30

Toro 32104-45

Screw-Mach. Hex. Hd.

$

$

Currently unavailable

31

Toro 47-0920

DISCONTINUED

$

$

Not available

32

Toro 47-1950

DISCONTINUED

$

$

Not available

33

Toro 65-5670

SCREW-SHOULDER

$

$

Not available

34

Toro 80-2330

LINK-BELLCRANK

$

$

Not available

35

Toro 3296-8

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0
