59260 - Toro Replacement Engine, 2-Cycle (SN: 006000001 - 006999999) (1986) 5 Qt. Fuel Tank Assembly No. 52-3710 (optional) Parts Diagram

Replacement Engine, 2-Cycle

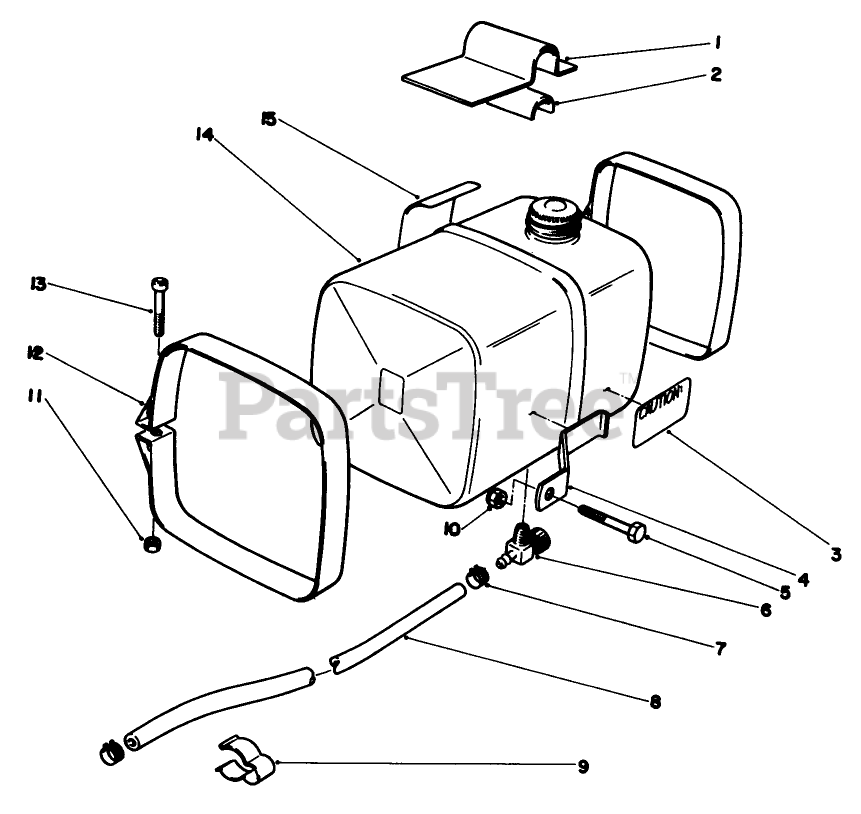

5 Qt. Fuel Tank Assembly No. 52-3710 (optional) Parts Diagram

  • Title

1

Toro 39-6960

DISCONTINUED

$

$

Not available

2

Toro 52-2290

ISOLATOR PAD

Note: Used for 7/8" Diameter Handle Mount Applications only, cut to size.

$

$

Not available

3

Toro 23-6910

Spring

$

$

Currently unavailable

4

Toro 39-5940

DISCONTINUED

$

$

Not available

5

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

6

Toro 304-71

DISCONTINUED

$

$

Not available

7

Toro 2210-185

FUEL HOSE CLAMP

$1.49

$

Usually ships in 3-6 days

0

8

Toro 51-3212

HOSE-FUEL

$17.99

$

Usually ships in 3-6 days

0

9

Toro 3-5181

DISCONTINUED

$

$

Not available

10

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

11

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 9

0

12

Toro 39-0570

TANK STRAP WA

$147.99

$

Usually ships in 3-6 days

0

13

Toro 3274-62

SCREW-HSH

$

$

Not available

14

Toro 52-2331

5 QT GAS TANK

$490.99

$

Usually ships in 3-6 days

0

15

Toro 52-2350

DISCONTINUED

$

$

Not available
