6-1111 - Toro 42" Dozer Blade (1968) Snow Thrower St-3072 St-302 Parts Diagram

42" Dozer Blade

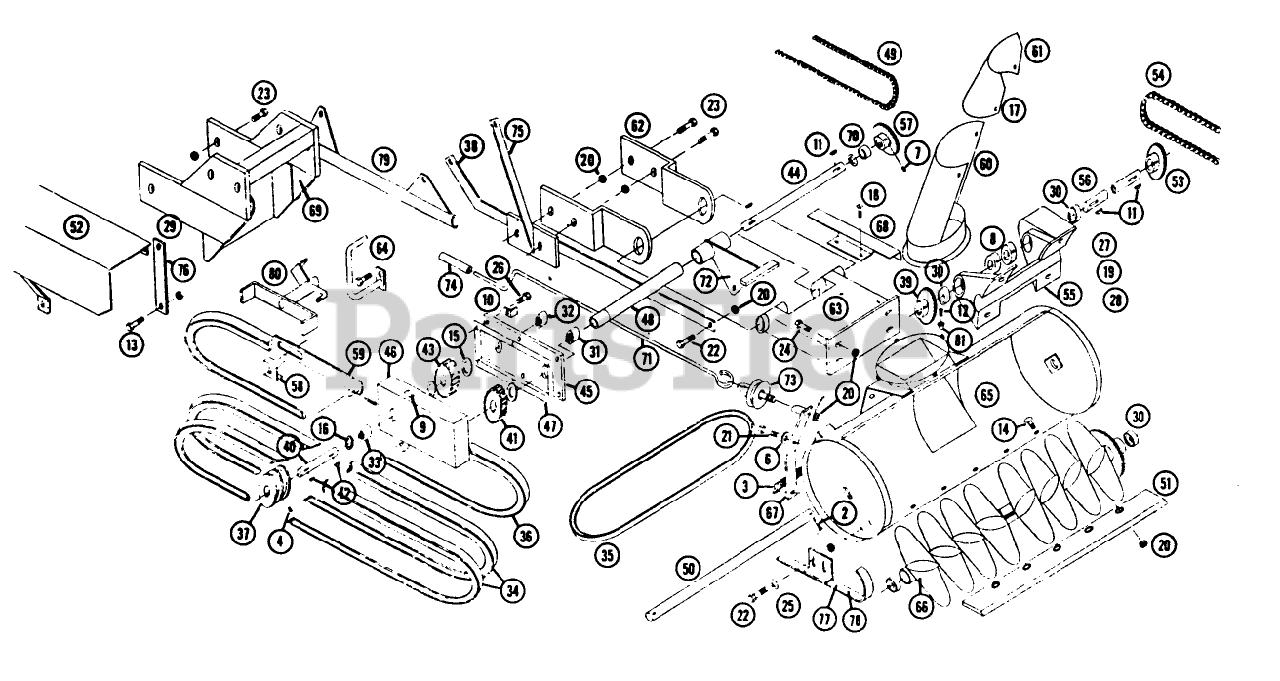

Snow Thrower St-3072 St-302 Parts Diagram

  • Title

1

Toro 1002

Cotter Key
(Superseded to 703201)

$

$

Not available

2

Toro 1012

Cotter Pin
(Superseded to 703239)

$

$

Not available

3

Toro 1014

DUP PART SEE $BOOK

$

$

Not available

4

Toro 1042

Snap Ring
(Superseded to 700097)

$1.49

$

Usually ships in 3-6 days

0

5

Toro 1045

Lockwasher
(Superseded to 254-94)

$9.99

$

In Stock, Qty 11

0

6

Toro 1052

Flat Washer
(Superseded to 742000)

$

$

Not available

7

Toro 1066

Set Screw 1/4-20 x 1

$

$

Currently unavailable

8

Toro 1085

See Supercession: 83-2770
(Superseded to 83-2770)

$

$

Not available

9

Toro 1108

Pipe Plug

$

$

Currently unavailable

10

Toro 1113

Lockwasher 1/4

$

$

Currently unavailable

11

Toro 1122

See Supercession: 3257-5
(Superseded to 3257-5)

$6.49

$

In Stock, Qty 19

0

12

Toro 1166

Hex Head Cap Screw

$

$

Currently unavailable

13

Toro 1195

5/16-24 x 1/2 H.H.C.S.
(Superseded to 741203)

$

$

Not available

14

Toro 1222

3/8-16 x 3/4 Flat Hd. Mach. Screw

$

$

Currently unavailable

15

Toro 1278

WASHER

$2.49

$

In Stock, Qty 14

0

16

Toro 1303

See Supercession: 100441
(Superseded to 100441)

$10.99

$

In Stock, Qty 8

0

17

Toro 1327

1/4-20 Wing Nut

$

$

Currently unavailable

18

Toro 1385

DISCONTINUED

$

$

Not available

19

Toro 1406

1/4-20 Lock Nut

$

$

Currently unavailable

20

Toro 1408

Nut

$

$

Currently unavailable

21

Toro 1423

Bolts 3/8-16 x 3/4

$

$

Currently unavailable

22

Toro 1425

Bolt 3/8-16 x 1

$

$

Not available

23

Toro 1426

Collar w/Setscrew
(Superseded to 701658)

$37.99

$

Usually ships in 3-6 days

0

24

Toro 1433

Key 1/4 x 1/4 x 1

$

$

Currently unavailable

25

Toro 1434

3/8 Washer

$

$

Not available

26

Toro 1435

1/4-20 x 3/4 H.H.C.S.

$

$

Currently unavailable

27

Toro 1436

1/4 Washer

$

$

Currently unavailable

28

Toro 1437

1/4-20 x 1/2 Round Hd. Mach. Screw

$

$

Currently unavailable

29

Toro 1439

Bolt 1/4-20 x 1 CP

$

$

Currently unavailable

30

Toro 1515

See Supercession: 101480
(Superseded to 101480)

$64.99

$

In Stock, only 3 left!

0

31

Toro 1523

BEARING-NEEDLE

$47.99

$

Usually ships in 3-6 days

0

32

Toro 1529

BEARING-NEEDLE

$56.99

$

Usually ships in 3-6 days

0

33

Toro 1538

NEEDLE BEARING

$

$

Not available

34

Toro 1580

DISCONTINUED

$

$

Not available

35

Toro 1581

DISCONTINUED

$

$

Not available

36

Toro 1582

V Belt (A) 74" Lg. for ST-302

$

$

Currently unavailable

37

Toro 1628

Sheave
(Superseded to 704021)

$

$

Not available

38

Toro 1949

Lift Arm

$

$

Currently unavailable

39

Toro 2489

DISCONTINUED

$

$

Not available

40

Toro 2522

Drive Shaft

$

$

Currently unavailable

41

Toro 2524

Jack Shaft Gear

$

$

Currently unavailable

42

Toro 2525

See Supercession: 3257-5
(Superseded to 3257-5)

$6.49

$

In Stock, Qty 19

0

43

Toro 2526

Drive Gear

$

$

Currently unavailable

44

Toro 2527

Lower Drive Shaft

$

$

Currently unavailable

45

Toro 2538

Cover

$

$

Currently unavailable

46

Toro 2536

Gear Box

$

$

Currently unavailable

47

Toro 2537

Gasket

$

$

Currently unavailable

48

Toro 2548

Pivot Tube

$

$

Currently unavailable

49

Toro 3800

Chain

$

$

Currently unavailable

50

Toro 3808

Reel Shaft

$

$

Currently unavailable

51

Toro 3809

Wear Plate

$

$

Currently unavailable

52

Toro 3819

Belt Guard

$

$

Currently unavailable

53

Toro 3860

Sprocket
(Superseded to 704062)

$

$

Not available

54

Toro 3861

See Supercession: 704063
(Superseded to 704063)

$

$

Not available

55

Toro 3866

Mounting Bracket

$

$

Currently unavailable

56

Toro 3872

Jack Shaft

$

$

Currently unavailable

57

Toro 3873

DISCONTINUED

$

$

Not available

58

Toro 4090

Brace

$

$

Currently unavailable

59

Toro 4096

Clutch Rod

$

$

Currently unavailable

60

Toro 4605

Chute

$

$

Currently unavailable

61

Toro 4609

Chute Deflector

$

$

Currently unavailable

62

Toro 2519

Front Mounting Bracket

$

$

Currently unavailable

63

Toro 4613

Mounting Channel

$

$

Currently unavailable

64

Toro 4617

Belt Idler Bracket

$

$

Currently unavailable

65

Toro 4600

Shroud

$

$

Currently unavailable

66

Toro 4620

Reel Ass-y.

$

$

Currently unavailable

67

Toro 4624

Pivot Bar

$

$

Currently unavailable

68

Toro 4628

Shield

$

$

Currently unavailable

69

Toro 4630

Mounting Bracket (Special)

$

$

Currently unavailable

70

Toro 4635

DUP PART SEE $BOOK

$

$

Not available

71

Toro 4637

Snap Ring
(Superseded to 32120-62)

$5.49

$

In Stock, Qty 12

0

72

Toro 4638

Lift Ass-y.

$

$

Not available

73

Toro 4640

Eye Bolt Sheave

$

$

Currently unavailable

74

Toro 4643

Handle

$

$

Currently unavailable

75

Toro 4644

Pivot Crank Support
(Superseded to 742010)

$

$

Not available

76

Toro 4648

Bracket used on ST-302

$

$

Currently unavailable

77

Toro 4649

Skid R.H.

$

$

Currently unavailable

78

Toro 4650

Skid L.H.

$

$

Currently unavailable

79

Toro 4651

Lift Rod

$

$

Currently unavailable

80

Toro 4656

Clutch Pedal for ST-302

$

$

Not available

81

Toro 4636

Bushing

$

$

Not available

82

Toro 4627

SPACER

$

$

Not available
