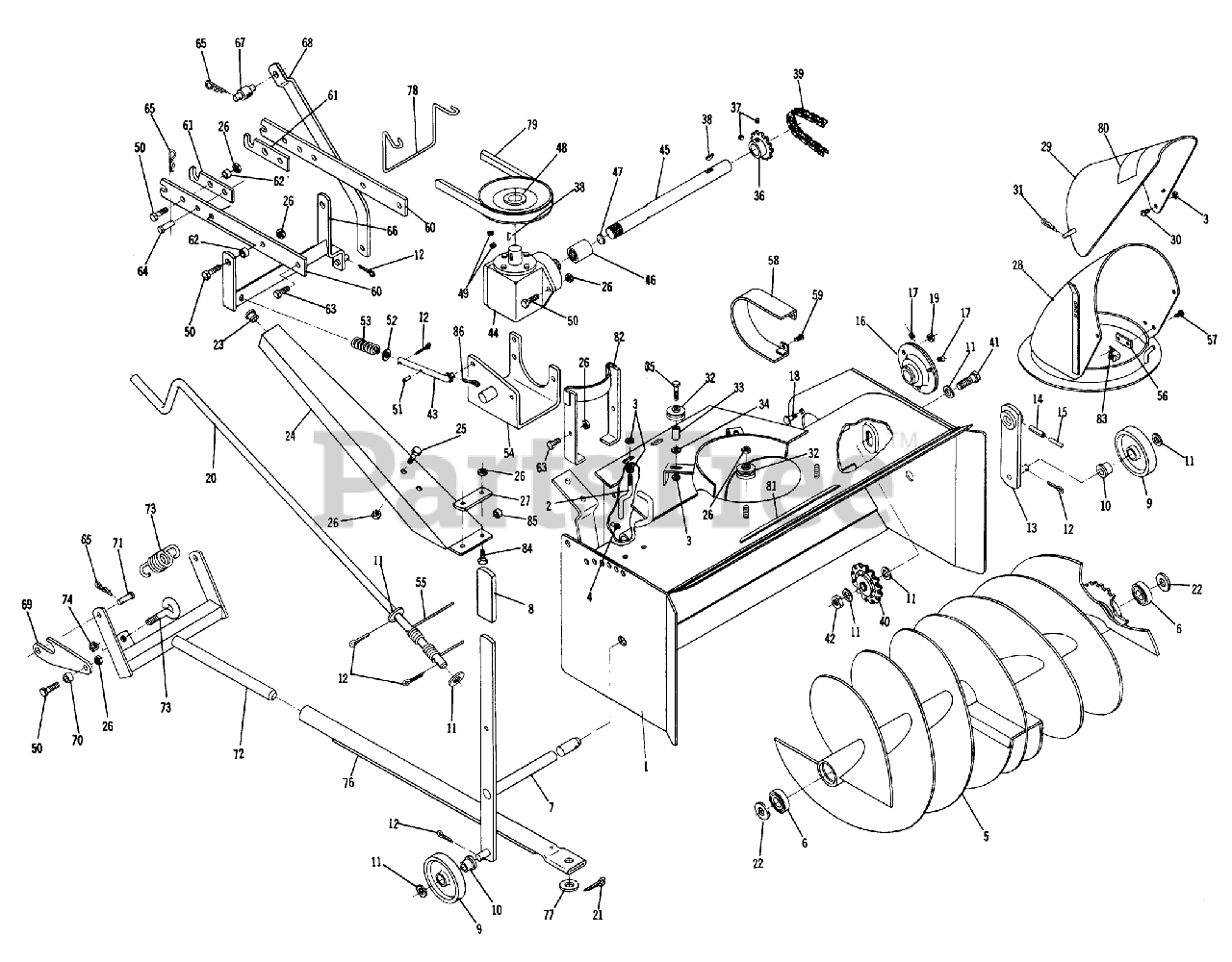

6-3251 - Toro 32" Snow Thrower Attachment (1973) Parts List Snow Thrower 6-3251 Parts Diagram

32" Snow Thrower Attachment

Parts List Snow Thrower 6-3251 Parts Diagram

  • Title

1

Toro 100070

Wrapper Assembly

$

$

Currently unavailable

2

Toro 100273

Stud-Belt Guide

$

$

Currently unavailable

3

Toro 915111-6

Nut-Nylok

$

$

Currently unavailable

4

Toro MW-1455

Fitting

$

$

Currently unavailable

5

Toro 2172

DISCONTINUED

$

$

Not available

6

Toro 101480

BEARING-BALL

$64.99

$

In Stock, only 3 left!

0

7

Toro 5155

DISCONTINUED

$

$

Not available

8

Toro 5459

Grip

$

$

Currently unavailable

9

Toro 1987

DISCONTINUED
(Superseded to 2173)

$

$

Not available

10

Toro 1974

See Supercession: 100284
(Superseded to 100284)

$

$

Not available

11

Toro 920011-4

Washer

$

$

Currently unavailable

12

Toro 932016-4

Cotter Pin

$

$

Currently unavailable

13

Toro 5157

DISCONTINUED

$

$

Not available

14

Toro 933215

ROLL PIN 1/4 X 1-1/4

$2.49

$

Usually ships in 3-6 days

0

15

Toro 933267

PIN-SPIROL

$1.49

$

In Stock, only 3 left!

0

16

Toro 100038

DISCONTINUED

$

$

Not available

17

Toro 909862-2

Set Screw-Nylok 5/16-18 x 5/16

$

$

Currently unavailable

18

Toro 900037-4

Bolt Hex 5/16-18 x 3/4

$

$

Currently unavailable

19

Toro 915112-6

Nut-Nylok

$

$

Currently unavailable

20

Toro 8652

DISCONTINUED

$

$

Not available

21

Toro 932034-4

Cotter Pin 3/16 x 1

$

$

Currently unavailable

22

Toro 920015-4

Washer

$

$

Currently unavailable

23

Toro 5982

NYLINER BUSHING

$

$

Not available

24

Toro 9039

Support-Crank

$

$

Currently unavailable

25

Toro 908031-4

Bolt Hex 3/8-16 x 5/8

$

$

Currently unavailable

26

Toro 915113-6

Nut

$

$

Currently unavailable

27

Toro 7494

DISCONTINUE

$

$

Not available

28

Toro 5220

DISCONTINUED

$

$

Not available

29

Toro 2165

DISCONTINUED
(Superseded to 110978)

$

$

Not available

30

Toro 910836-4

Bolt Pan Head 1/4-20 x 1/2

$

$

Currently unavailable

31

Toro 933503-4

Hairpin

$

$

Currently unavailable

32

Toro 1973

DISCONTINUED

$

$

Not available

33

Toro 2163

DISCONTINUED

$

$

Not available

34

Toro 920007-4

Washer

$

$

Currently unavailable

35

Toro 908006-4

Bolt 1/4 20 x 1 1/4

$

$

Currently unavailable

36

Toro 100057

DISCONTINUED

$

$

Not available

37

Toro 909848-5

Set Screw Nylok

$

$

Currently unavailable

38

Toro 937014

Key
(Superseded to 3257-5)

$6.49

$

In Stock, Qty 19

0

39

Toro 100063

Chain

$

$

Currently unavailable

40

Toro 2174

See Supercession: 93-1614
(Superseded to 93-1614)

$

$

Not available

41

Toro 908060-4

Bolt-1/2-13-1 3/4

$

$

Currently unavailable

42

Toro 915115-6

Locknut-1/2-13

$

$

Currently unavailable

43

Toro 100318

Connecting Rod

$

$

Currently unavailable

44

Toro 100154

Gear Box-Complete

$

$

Currently unavailable

45

Toro 100067

ORDER FROM PEERLESS

$

$

Not available

46

Toro 100155

Coupling

$

$

Currently unavailable

47

Toro 100132

Felt Disc

$

$

Currently unavailable

48

Toro 100128

Pulley "B" Section

$

$

Currently unavailable

49

Toro 909861-5

Set Screw 5/16-18 x 1/4

$

$

Currently unavailable

50

Toro 908035-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

51

Toro 933156-4

Spirol Pin 1/8 x 1

$

$

Currently unavailable

52

Toro 920009-4

Washer

$

$

Currently unavailable

53

Toro 100160

Spring

$

$

Currently unavailable

54

Toro 100062

Gear Box Support

$

$

Currently unavailable

55

Toro 4795

See Supercession: 104460
(Superseded to 104460)

$22.99

$

In Stock, only 1 left!

0

56

Toro 6433

DISCONTINUED

Note: Used Prior to Ser. No. 846851.

$

$

Not available

57

Toro 926372-4

Screw #10-16 x 1/2 Pan Head

Note: Used Prior to Ser. No. 846851.

$

$

Currently unavailable

58

Toro 8672

DISCONTINUED

$

$

Not available

59

Toro 1391

DISCONTINUED

$

$

Not available

60

Toro 100048

Arm

$

$

Currently unavailable

61

Toro 100049

DISCONTINUED

$

$

Not available

62

Toro 100283

SPACER

$18.99

$

Usually ships in 3-6 days

0

63

Toro 908034-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

64

Toro 932963-4

Clevis Pin

$

$

Currently unavailable

65

Toro 933505-4

Hairpin

$

$

Currently unavailable

66

Toro 100064

Hanger

$

$

Currently unavailable

67

Toro 100051

DISCONTINUED

$

$

Not available

68

Toro 100053

DISCONTINUED

$

$

Not available

69

Toro 100094

DISCONTINUED

$

$

Not available

70

Toro 6331

SPACER CLUTCH ARM

$

$

Not available

71

Toro 932961-4

Clevis Pin 3/8 x 3/4

$

$

Currently unavailable

72

Toro 100097

DISCONTINUED

$

$

Not available

73

Toro 100653

EYEBOLT

$

$

Not available

74

Toro 915663-4

3/8-16 E.S.

$

$

Currently unavailable

75

Toro 8594

DISCONTINUED

$

$

Not available

76

Toro 100101

DISCONTINUED

$

$

Not available

77

Toro 920013-4

Washer, 5/8

$

$

Currently unavailable

78

Toro 100141

Guide-Belt

Note: Not Supplied-Req-d on 1969 Rangers only.

$

$

Currently unavailable

79

Toro 100129

DISCONTINUED

$

$

Not available

80

Toro 7637

Decal-Caution

$

$

Currently unavailable

81

Toro 5604

DISCONTINUED
(Superseded to 83-3410)

$

$

Not available

82

Toro 100405

Belt Guide

$

$

Currently unavailable

83

Toro 101447

CLAMP

$

$

Not available

84

Toro 7860

See Supercession: 703325
(Superseded to 703325)

$

$

Not available

85

Toro 938007

Bushing

$125.99

$

Usually ships in 3-6 days

0

86

Toro 932008-4

Hairpin

$

$

Currently unavailable
