60221 (MMX-858H-P) - Toro Mortar Mixer (SN: 404320000 - 999999999) Drum and Paddle Assembly Parts Diagram

Mortar Mixer

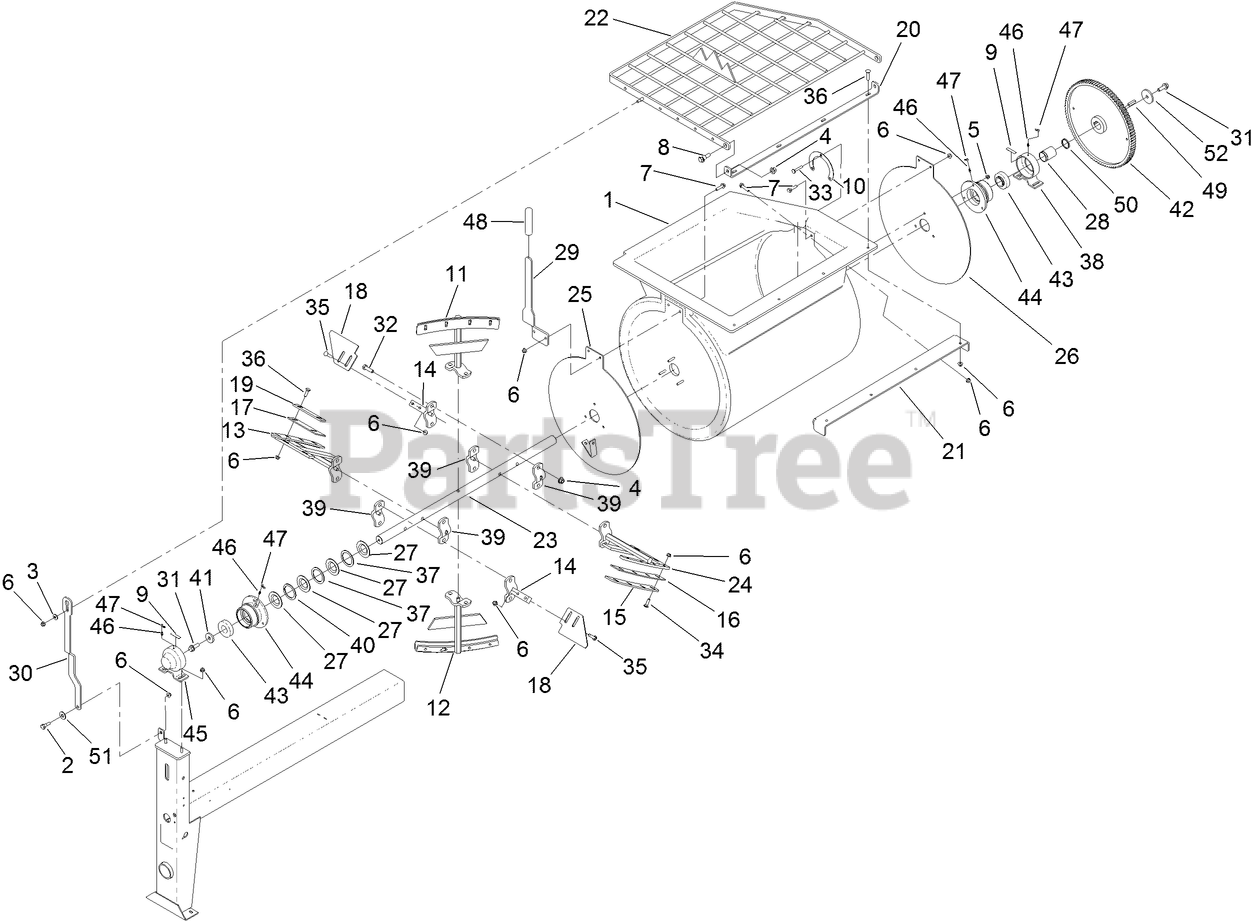

Drum and Paddle Assembly Parts Diagram

  • Title

1

Toro 137-0614

DRUM-PLASTIC

$1857.99

$

Usually ships in 3-6 days

0

2

Toro 80-1300

BOLT-SHOULDER

$52.99

$

Usually ships in 3-6 days

0

3

Toro 80-6990

WASHER-HARDENED

$6.49

$

In Stock, Qty 20+

0

4

Toro 99-5107

NUT-LOCK

$2.49

$

In Stock, Qty 20+

0

5

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

6

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

7

Toro 114-4681

SCREW-HHF

$3.99

$

In Stock, Qty 6

0

8

Toro 116-0780

SCREW-SHOULDER, HHF

$9.49

$

In Stock, Qty 7

0

9

Toro 125-8175

DECAL-GREASE

$1.49

$

Usually ships in 3-6 days

0

10

Toro 127-1666-01

SPACER-BOLT

$188.99

$

Usually ships in 3-6 days

0

11

Toro 137-7614-01

PADDLE-MID

$160.99

$

Usually ships in 3-6 days

0

12

Toro 137-7615-01

PADDLE-MID

$160.99

$

Usually ships in 3-6 days

0

13

Toro 137-0616-01

PADDLE-FRONT

$196.99

$

Usually ships in 3-6 days

0

14

Toro 138-3180-01

PADDLE-PUSHER

$65.99

$

Usually ships in 3-6 days

0

15

Toro 138-3108-01

BAR-BACKER, TOP

$117.99

$

Usually ships in 3-6 days

0

16

Toro 131-5260

PADDLE-RUBBER, TOP

$16.99

$

In Stock, only 1 left!

0

17

Toro 131-5261

PADDLE-RUBBER, MIXER END

$13.99

$

In Stock, only 3 left!

0

18

Toro 138-3177-01

BLADE-SCRAPER

$18.99

$

Usually ships in 3-6 days

0

19

Toro 131-5722-01

BAR-BACKER, END

$14.99

$

In Stock, only 2 left!

0

20

Toro 137-0602-01

MOUNT-GUARD

$63.99

$

Usually ships in 3-6 days

0

21

Toro 137-0603-01

SUPPORT-GUARD

$97.99

$

Usually ships in 3-6 days

0

22

Toro 137-0612-01

GRATE

$1013.99

$

Usually ships in 3-6 days

0

23

Toro 138-3111-01

SHAFT-DRUM, 8 CUBIC FEET

$292.99

$

Usually ships in 3-6 days

0

24

Toro 137-0615-01

PADDLE-REAR

$196.99

$

Usually ships in 3-6 days

0

25

Toro 137-0640-01

END-DRUM

$342.99

$

Usually ships in 3-6 days

0

26

Toro 137-0641-01

END-DRUM

$342.99

$

Usually ships in 3-6 days

0

27

Toro ST32324

SEAL-DRUM

$12.99

$

In Stock, Qty 5

0

28

Toro 138-3159

SPACER

$36.99

$

Usually ships in 3-6 days

0

29

Toro 137-7600-01

HANDLE-DUMP

$55.99

$

Usually ships in 3-6 days

0

30

Toro 137-0672-01

ARM-LIFT, GRATE

$39.99

$

Usually ships in 3-6 days

0

31

Toro 130-6482

SCREW-HHF

$4.49

$

Usually ships in 3-6 days

0

32

Toro 325-7

SCREW-HH

$2.49

$

In Stock, Qty 15

0

33

Toro 3230-6

BOLT-CARR

$1.49

$

In Stock, Qty 9

0

34

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$2.49

$

In Stock, Qty 20+

0

35

Toro 3231-29

SCREW-CARR

$8.49

$

In Stock, Qty 16

0

36

Toro 3231-5

SCREW-CARR

$1.99

$

In Stock, Qty 20+

0

37

Toro ST24017

WASHER-FLAT

$5.99

$

In Stock, only 3 left!

0

38

Toro ST24021-01

TRUNNION

$123.99

$

Usually ships in 3-6 days

0

39

Toro ST24107-01

CLAMP

$40.99

$

Usually ships in 3-6 days

0

40

Toro ST25881

WASHER-SPLIT

$14.99

$

In Stock, only 2 left!

0

41

Toro ST26326

WASHER-FLAT

$4.49

$

Usually ships in 3-6 days

0

42

Toro ST26933-03

GEAR-94 TEETH

$745.99

$

In Stock, only 2 left!

0

43

Toro ST32003

BEARING-BALL

$152.99

$

In Stock, only 2 left!

0

44

Toro ST32326-01

See Supercession: 132-4117
(Superseded to 132-4117)

$207.99

$

Usually ships in 3-6 days

0

45

Toro ST36574-01

TRUNNION-CAPPED

$120.99

$

Usually ships in 3-6 days

0

46

Toro ST46042

FITTING-GREASE

$2.99

$

In Stock, only 2 left!

0

47

Toro ST47001

CAP-PLUG

$0.99

$

In Stock, Qty 8

0

48

Toro 104-9838

GRIP-FOAM

$6.49

$

In Stock, Qty 20+

0

49

Toro ST81060

KEY-SQUARE

$3.49

$

In Stock, only 3 left!

0

50

Toro 138-3163

SPACER-SHAFT, DRUM

$13.99

$

In Stock, only 3 left!

0

51

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 11

0

52

Toro 138-3162

WASHER-PLAIN

$11.99

$

Usually ships in 3-6 days

0
