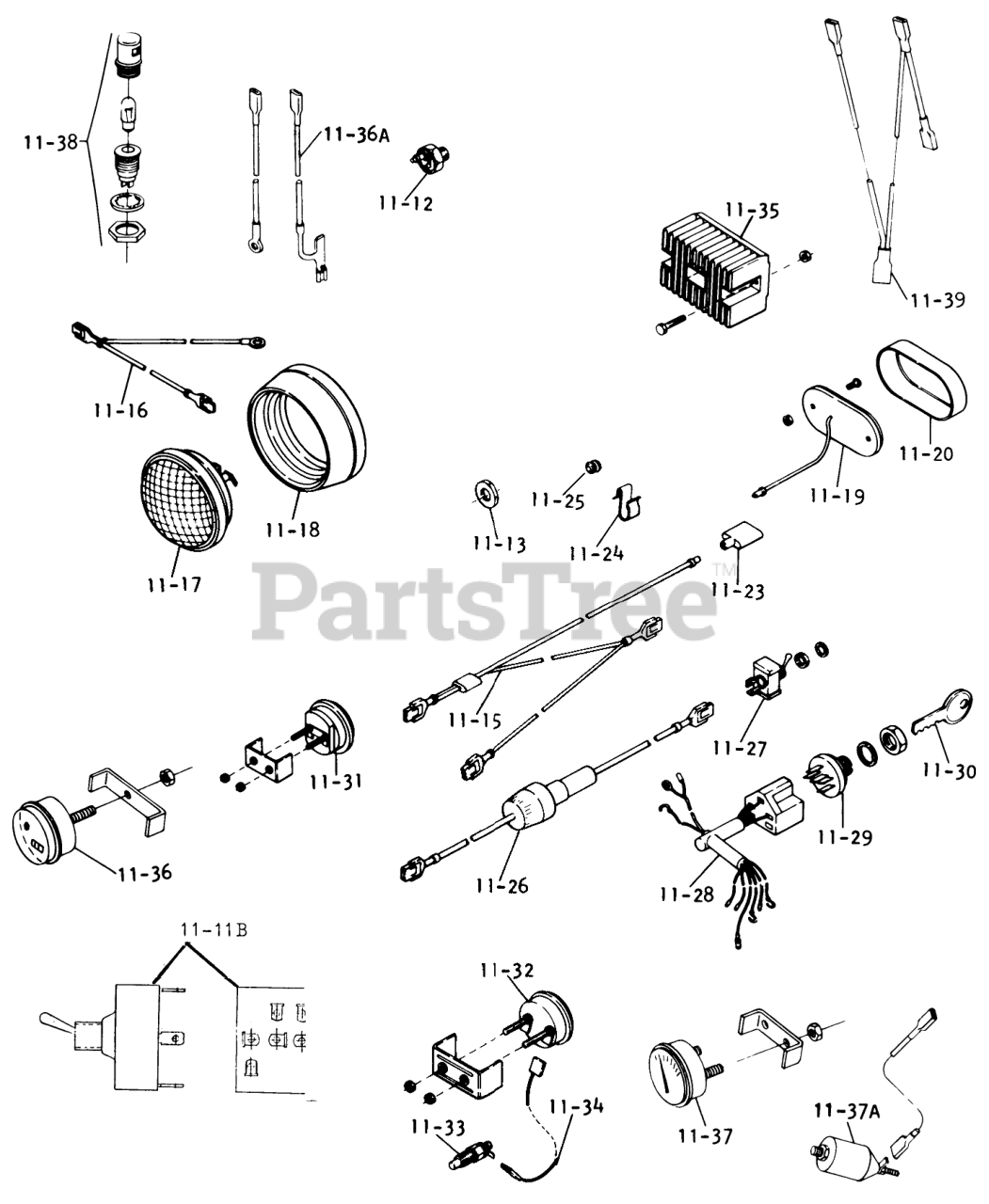

61-16OS01 (D-160) - Toro Lawn Tractor (1976) Electrical System (continued) Parts Diagram

Lawn Tractor

Electrical System (continued) Parts Diagram

  • Title

11-12

Toro 101845

SWITCH SAFETY

$118.99

$

Usually ships in 3-6 days

0

11-13

Toro 102277

NUT-SPECIAL 9/16-18

$

$

Not available

11-15

Toro 102813

DISCONTINUED

$

$

Not available

11-16

Toro 102815

DISCONTINUED

$

$

Not available

11-17

Toro 102881

HEADLAMP

$

$

Not available

11-18

Toro 102081

DISCONTINUED

$

$

Not available

11-19

Toro 105202

DISCONTINUED

$

$

Not available

11-20

Toro 102884

See Supercession: 112564
(Superseded to 112564)

$10.99

$

In Stock, only 4 left!

0

11-20

Toro 910808

See Supercession: 3250-25
(Superseded to 3250-25)

$0.99

$

Usually ships in 3-6 days

0

11-20

Toro 5924

HEX NUT 10-32 E.S. + + USE 3296-21 + +

$

$

Not available

11-23

Toro 7618

DISCONTINUED

$

$

Not available

11-24

Toro 3023

DISCONTINUED

$

$

Not available

11-25

Toro 102893

DISCONTINUED

$

$

Not available

11-26

Toro 101846

DISCONTINUED

$

$

Not available

11-26

Toro 101639

FUSE

$

$

Not available

11-26

Toro 9210

DISCONTINUED

$

$

Not available

11-26

Toro 100571

DISCONTINUED

$

$

Not available

11-27

Toro 102138

SWITCH-LIGHTS

$43.99

$

In Stock, only 1 left!

0

11-27

Toro 8785

DISCONTINUED

$

$

Not available

11-27

Toro 8786

NUT-HEX

$

$

Not available

11-28

Toro 104682

DISCONTINUED

$

$

Not available

11-28

Toro 105026

DISCONTINUED

$

$

Not available

11-29

Toro 103990

SWITCH-IGNITION

$30.99

$

In Stock, Qty 10

0

11-29

Toro 101884

NUT

$7.99

$

In Stock, only 1 left!

0

11-29

Toro 920160

See Supercession: 9201604
(Superseded to 9201604)

$0.99

$

In Stock, only 2 left!

0

11-30

Toro 7262

See Supercession: 62-7770
(Superseded to 62-7770)

$5.49

$

In Stock, Qty 20+

0

11-31

Toro 102046

DISCONTINUED

$

$

Not available

11-31

Toro 102047

DISCONTINUED
(Superseded to 109604)

$

$

Not available

11-31

Toro 5924

HEX NUT 10-32 E.S. + + USE 3296-21 + +

$

$

Not available

11-32

Toro 102885

DISCONTINUED

$

$

Not available

11-32

Toro 102882

DISCONTINUED

$

$

Not available

11-32

Toro 5924

HEX NUT 10-32 E.S. + + USE 3296-21 + +

$

$

Not available

11-33

Toro 102886

DISCONTINUED

$

$

Not available

11-34

Toro 102887

DISCONTINUED

$

$

Not available

11-35

Toro 101450

REGULATOR-RECTIFIER

$368.99

$

Usually ships in 3-6 days

0

11-35

Toro 908003

See Supercession: 321-4
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

11-35

Toro 915111

See Supercession: 3217-5
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 9

0

11-35

Toro 920007

See Supercession: 3256-22
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

11-36

Toro 103717

See Supercession: 108767
(Superseded to 108767)

$545.99

$

Usually ships in 3-6 days

0

11-36

Toro 103718

DISCONTINUED

$

$

Not available

11-36

Toro 915661

See Supercession: 3296-42
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

11-36

Toro 103726

DISCONTINUED

$

$

Not available

11-36A

Toro 104031

DISCONTINUED

$

$

Not available

11-37

Toro 103716

DISCONTINUED
(Superseded to 109651)

$

$

Not available

11-37

Toro 102882

DISCONTINUED

$

$

Not available

11-37

Toro 5924

HEX NUT 10-32 E.S. + + USE 3296-21 + +

$

$

Not available

11-37A

Toro 103728

DISCONTINUED

$

$

Not available

11-37A

Toro 103720

DISCONTINUED

$

$

Not available

11-38

Toro 104032

DISCONTINUED

$

$

Not available

11-38

Toro 103726

DISCONTINUED

$

$

Not available

11-39

Toro 103719

DISCONTINUED

$

$

Not available
