62547 - Lawn-Boy Grass Catcher (SN: L00000001 - L99999999) (1992) Mower Deck Parts List Model: 52161 Parts Diagram

Grass Catcher

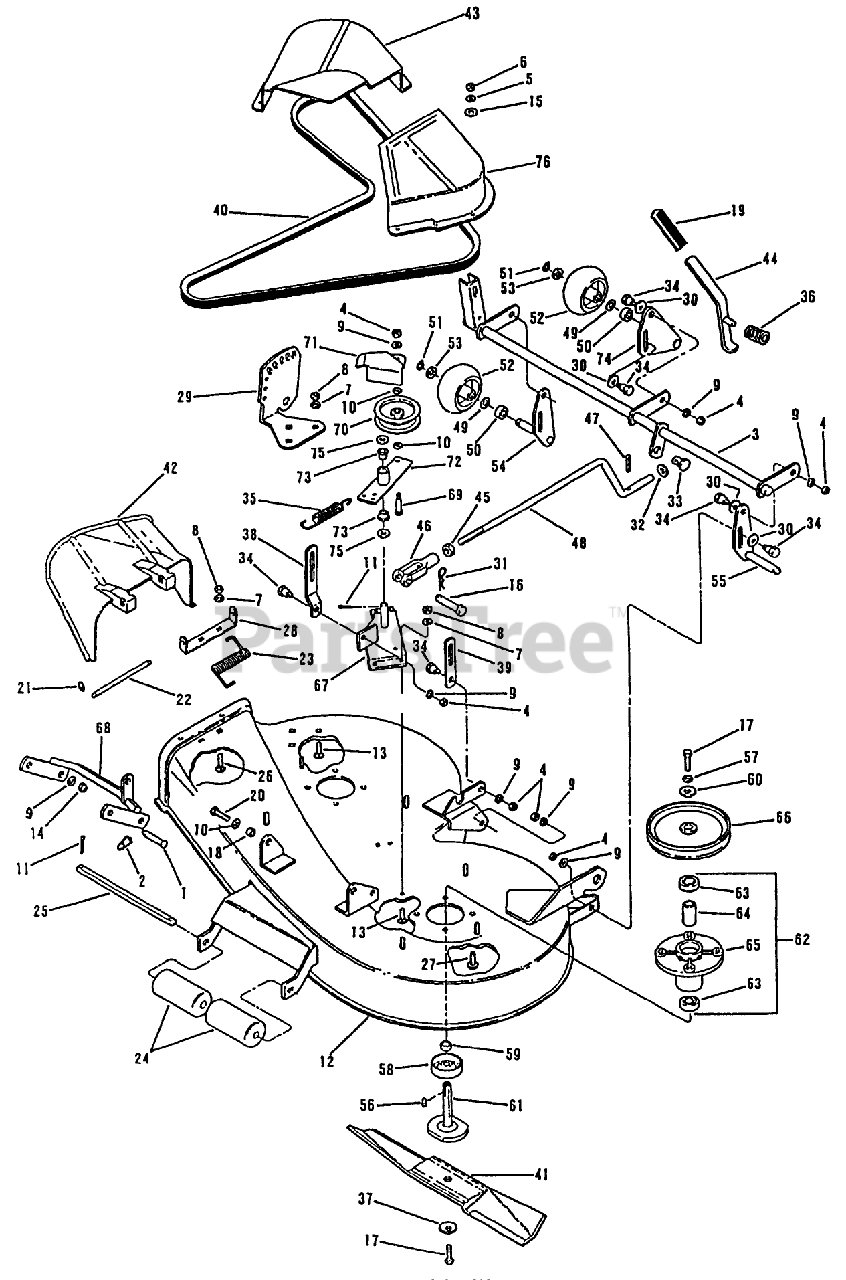

Mower Deck Parts List Model: 52161 Parts Diagram

  • Title

1

Lawn-Boy 700799

PIN CLEVIS

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

2

Lawn-Boy 707319

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

3

Lawn-Boy 744540

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

4

Lawn-Boy 146211

NUT

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$3.49

$

Usually ships in 3-6 days

0

5

Lawn-Boy 146252

See Supercession: 3253-3
(Superseded to 3253-3)

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$0.99

$

In Stock, Qty 20+

0

6

Lawn-Boy 146254

NUT

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

7

Lawn-Boy 146258

See Supercession: 3253-4
(Superseded to 3253-4)

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$0.99

$

In Stock, Qty 20+

0

8

Lawn-Boy 146259

NUT SS

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

9

Lawn-Boy 146260

WASHER

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

10

Lawn-Boy 146304

WASHER

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

11

Lawn-Boy 146374

See Supercession: 3272-10
(Superseded to 3272-10)

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$1.49

$

In Stock, only 4 left!

0

12

Lawn-Boy 744568

See Supercession: 744566
(Superseded to 744566)

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$3781.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 700030

BOLT - CARRIAGE

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$1.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 700032

NUT-LOCKING

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

15

Lawn-Boy 700324

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

16

Lawn-Boy 700799

PIN CLEVIS

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

17

Lawn-Boy 701142

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

18

Lawn-Boy 701189

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

19

Lawn-Boy 701190

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

20

Lawn-Boy 701194

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

21

Lawn-Boy 701197

E-RING

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$3.99

$

Usually ships in 3-6 days

0

22

Lawn-Boy 701198

SHAFT - CHUTE

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

23

Lawn-Boy 701199

See Supercession: 710273
(Superseded to 710273)

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

24

Lawn-Boy 701203

ROLLER

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$74.99

$

Usually ships in 3-6 days

0

25

Lawn-Boy 701212

SHAFT

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

26

Lawn-Boy 701238

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

27

Lawn-Boy 701243

SCREW-THD ROLL, HWH

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$3.49

$

In Stock, Qty 20+

0

28

Lawn-Boy 710257

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

29

Lawn-Boy 740645

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

30

Lawn-Boy 701788

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

31

Lawn-Boy 701570

PIN-HAIR

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

32

Lawn-Boy 702273

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

33

Lawn-Boy 702799

PIN - PIVOT

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$55.99

$

Usually ships in 3-6 days

0

34

Lawn-Boy 706369

BOLT-SHOULDER

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

35

Lawn-Boy 707451

See Supercession: 115-4712
(Superseded to 115-4712)

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$15.99

$

In Stock, only 2 left!

0

36

Lawn-Boy 710027

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

37

Lawn-Boy 710105

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

38

Lawn-Boy 710119

See Supercession: 710118
(Superseded to 710118)

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

39

Lawn-Boy 710121

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

40

Lawn-Boy 710141

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

41

Lawn-Boy 710267

BLADE - LOW LIFT

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

42

Lawn-Boy 710148

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

43

Lawn-Boy 710368

COVER, BELT RH

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$192.99

$

Usually ships in 3-6 days

0

44

Lawn-Boy 740292

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

45

Lawn-Boy 701523

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

46

Lawn-Boy 702275

CLEVIS

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

47

Lawn-Boy 705024

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

48

Lawn-Boy 710147

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

49

Lawn-Boy 700317

WASHER

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$6.99

$

Usually ships in 3-6 days

0

50

Lawn-Boy 710108

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

51

Lawn-Boy 710110

RING

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$1.99

$

Usually ships in 3-6 days

0

52

Lawn-Boy 710138

See Supercession: 1-603299
(Superseded to 1-603299)

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$26.99

$

In Stock, Qty 20+

0

53

Lawn-Boy 710169

SPACER

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$5.99

$

Usually ships in 3-6 days

0

54

Lawn-Boy 744517

See Supercession: 744516
(Superseded to 744516)

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

55

Lawn-Boy 744519

DISCONTINUED
(Superseded to 744518)

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

56

Lawn-Boy 700835

See Supercession: 10-8040
(Superseded to 10-8040)

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$3.49

$

In Stock, Qty 9

0

57

Lawn-Boy 701141

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

58

Lawn-Boy 710124

SHIELD SPINDLE *B

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

59

Lawn-Boy 710125

SPACER

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$16.99

$

Usually ships in 3-6 days

0

60

Lawn-Boy 710128

WASHER

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$4.99

$

Usually ships in 3-6 days

0

61

Lawn-Boy 744515

See Supercession: 744515-03
(Superseded to 744515-03)

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

62

Lawn-Boy 744523

HOUSING ASSEMBLY

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$499.99

$

Usually ships in 3-6 days

0

63

Lawn-Boy 700496

See Supercession: 109842
(Superseded to 109842)

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$34.99

$

In Stock, Qty 8

0

63

Lawn-Boy 700496

See Supercession: 109842
(Superseded to 109842)

Note: ) included with assembly above.

$34.99

$

In Stock, Qty 8

0

63

Lawn-Boy 700496

See Supercession: 109842
(Superseded to 109842)

Note: Parts shown with bullet (

$34.99

$

In Stock, Qty 8

0

64

Lawn-Boy 701257

DISCONTINUED

Note: Parts shown with bullet (

$

$

Not available

64

Lawn-Boy 701257

DISCONTINUED

Note: ) included with assembly above.

$

$

Not available

64

Lawn-Boy 701257

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

65

Lawn-Boy 701264

See Supercession: 744523
(Superseded to 744523)

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$499.99

$

Usually ships in 3-6 days

0

65

Lawn-Boy 701264

See Supercession: 744523
(Superseded to 744523)

Note: ) included with assembly above.

$499.99

$

Usually ships in 3-6 days

0

65

Lawn-Boy 701264

See Supercession: 744523
(Superseded to 744523)

Note: Parts shown with bullet (

$499.99

$

Usually ships in 3-6 days

0

66

Lawn-Boy 744529

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

67

Lawn-Boy 744532

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

68

Lawn-Boy 744535

HANGER ASSEMBLY *B

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

69

Lawn-Boy 701289

See Supercession: 323-10
(Superseded to 323-10)

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$1.49

$

In Stock, Qty 20+

0

70

Lawn-Boy 701231

PULLEY - 4"

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

71

Lawn-Boy 701319

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

72

Lawn-Boy 744531

See Supercession: 744524
(Superseded to 744524)

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$166.99

$

Usually ships in 3-6 days

0

73

Lawn-Boy 701234

BUSHING

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$6.49

$

Usually ships in 3-6 days

0

73

Lawn-Boy 701234

BUSHING

Note: Parts shown with bullet (

$6.49

$

Usually ships in 3-6 days

0

73

Lawn-Boy 701234

BUSHING

Note: ) included with assembly above.

$6.49

$

Usually ships in 3-6 days

0

74

Lawn-Boy 744733

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

75

Lawn-Boy 146204

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

76

Lawn-Boy 710369

COVER, BELT LH

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$244.99

$

Usually ships in 3-6 days

0
