62547 - Lawn-Boy Grass Catcher (SN: L00000001 - L99999999) (1992) Mower Deck Parts List Model: 52163 Parts Diagram

Grass Catcher

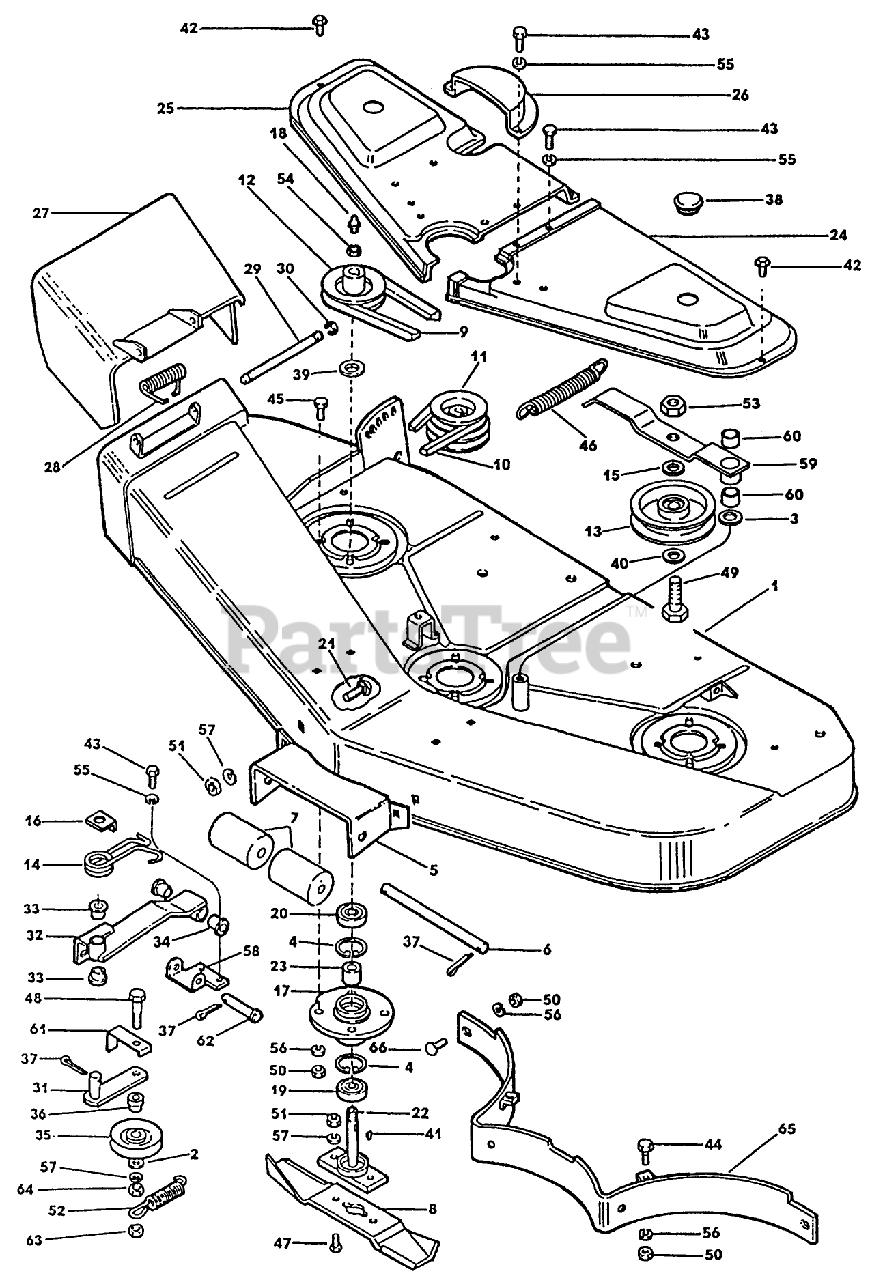

Mower Deck Parts List Model: 52163 Parts Diagram

  • Title

1

Lawn-Boy 744496

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

2

Lawn-Boy 146304

WASHER

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

3

Lawn-Boy 700495

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

4

Lawn-Boy 703279

See Supercession: 32120-62
(Superseded to 32120-62)

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$5.49

$

In Stock, Qty 12

0

5

Lawn-Boy 702852

See Supercession: 702851
(Superseded to 702851)

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

6

Lawn-Boy 701212

SHAFT

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

7

Lawn-Boy 701203

ROLLER

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$74.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 710265

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

9

Lawn-Boy 703859

V-BELT

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

10

Lawn-Boy 702829

V-BELT (DRIVE)

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

11

Lawn-Boy 702816

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

12

Lawn-Boy 702818

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

13

Lawn-Boy 702815

PULLEY - IDLER

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

14

Lawn-Boy 710219

SPRING

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

15

Lawn-Boy 710063

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

16

Lawn-Boy 710224

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

17

Lawn-Boy 710272

HOUSING-SPINDLE S

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$715.99

$

Usually ships in 3-6 days

0

18

Lawn-Boy 701011

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

19

Lawn-Boy 700497

See Supercession: 93-2559
(Superseded to 93-2559)

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$33.99

$

Usually ships in 3-6 days

0

20

Lawn-Boy 700496

See Supercession: 109842
(Superseded to 109842)

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$34.99

$

In Stock, Qty 8

0

21

Lawn-Boy 700031

See Supercession: 3231-1
(Superseded to 3231-1)

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$1.49

$

In Stock, Qty 13

0

22

Lawn-Boy 744691

SPINDLE ASSEMBLY

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

23

Lawn-Boy 710270

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

24

Lawn-Boy 744686

See Supercession: 744682
(Superseded to 744682)

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$654.99

$

Usually ships in 3-6 days

0

25

Lawn-Boy 744685

See Supercession: 744681
(Superseded to 744681)

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$674.99

$

Usually ships in 3-6 days

0

26

Lawn-Boy 710275

See Supercession: 710276
(Superseded to 710276)

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

27

Lawn-Boy 740988

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

28

Lawn-Boy 710273

SPRING - CHUTE

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

29

Lawn-Boy 701198

SHAFT - CHUTE

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

30

Lawn-Boy 701197

E-RING

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$3.99

$

Usually ships in 3-6 days

0

31

Lawn-Boy 740975

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

32

Lawn-Boy 740979

PIVOT ASSEMBLY

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$327.99

$

Usually ships in 3-6 days

0

33

Lawn-Boy 701234

BUSHING

Note: ) included with assembly above.

$6.49

$

Usually ships in 3-6 days

0

33

Lawn-Boy 701234

BUSHING

Note: Parts shown with bullet (

$6.49

$

Usually ships in 3-6 days

0

33

Lawn-Boy 701234

BUSHING

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$6.49

$

Usually ships in 3-6 days

0

34

Lawn-Boy 702841

BUSHING

Note: ) included with assembly above.

$

$

Not available

34

Lawn-Boy 702841

BUSHING

Note: Parts shown with bullet (

$

$

Not available

34

Lawn-Boy 702841

BUSHING

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

35

Lawn-Boy 702824

PULLEY - V-IDLER

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

36

Lawn-Boy 700090

SPACER

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

37

Lawn-Boy 146374

See Supercession: 3272-10
(Superseded to 3272-10)

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$1.49

$

In Stock, only 4 left!

0

38

Lawn-Boy 710268

PLUG - BELT COVER

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

39

Lawn-Boy 700809

SPACER

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$4.99

$

In Stock, only 2 left!

0

40

Lawn-Boy 700358

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

41

Lawn-Boy 700081

See Supercession: 3257-5
(Superseded to 3257-5)

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$6.49

$

In Stock, Qty 19

0

42

Lawn-Boy 701660

SCREW-THREAD FRMG

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

43

Lawn-Boy 700822

SCREW-HH

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$1.99

$

In Stock, Qty 5

0

44

Lawn-Boy 146209

SCREW - HEX

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$1.99

$

Usually ships in 3-6 days

0

45

Lawn-Boy 700342

SCREW

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

46

Lawn-Boy 703368

SPRING

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

47

Lawn-Boy 700973

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

48

Lawn-Boy 702809

SCREW-HH

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$5.99

$

In Stock, only 2 left!

0

49

Lawn-Boy 710064

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

50

Lawn-Boy 146259

NUT SS

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

51

Lawn-Boy 146211

NUT

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$3.49

$

Usually ships in 3-6 days

0

52

Lawn-Boy 702795

SPRING - TENSION *B

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$49.99

$

Usually ships in 3-6 days

0

53

Lawn-Boy 703891

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

54

Lawn-Boy 710269

LOCKNUT-SPECIAL

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

55

Lawn-Boy 146252

See Supercession: 3253-3
(Superseded to 3253-3)

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$0.99

$

In Stock, Qty 20+

0

56

Lawn-Boy 146258

See Supercession: 3253-4
(Superseded to 3253-4)

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$0.99

$

In Stock, Qty 20+

0

57

Lawn-Boy 146260

WASHER

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

58

Lawn-Boy 702830

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

59

Lawn-Boy 744499

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

60

Lawn-Boy 710060

BEARING-SLEEVE

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

60

Lawn-Boy 710060

BEARING-SLEEVE

Note: Parts shown with bullet (

$

$

Not available

60

Lawn-Boy 710060

BEARING-SLEEVE

Note: ) included with assembly above.

$

$

Not available

61

Lawn-Boy 702796

GUIDE - BELT

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

62

Lawn-Boy 702798

PIN - CLEVIS

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

63

Lawn-Boy 700140

NUT

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

64

Lawn-Boy 701512

NUT-HEX JAM

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

65

Lawn-Boy 740986

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

66

Lawn-Boy 709914

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available
