62548 - Lawn-Boy Grass Catcher (SN: L00000001 - L99999999) (1992) 30" GRASS CATCHER PARTS LIST MODEL: 62548 Parts Diagram

Grass Catcher

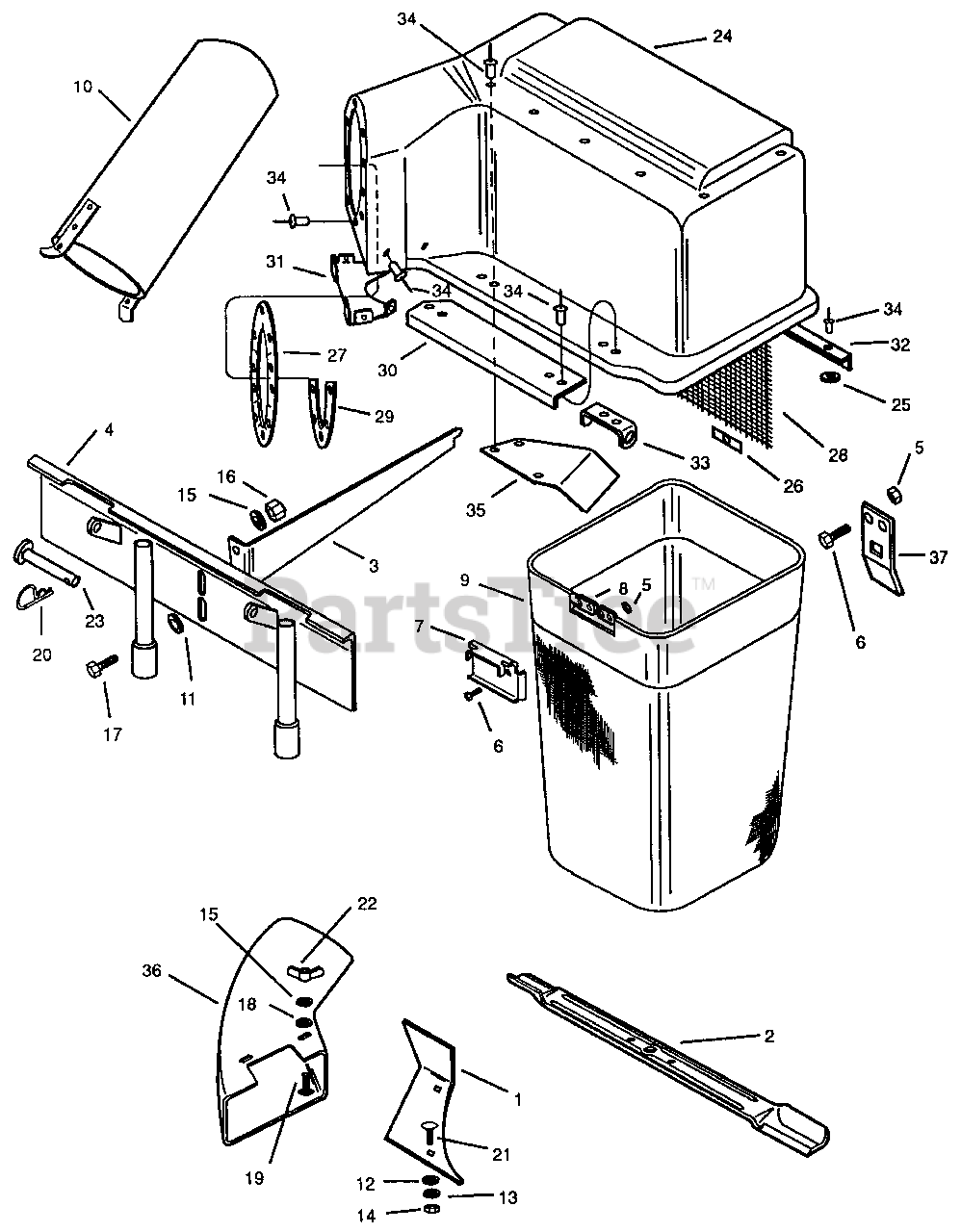

30" GRASS CATCHER PARTS LIST MODEL: 62548 Parts Diagram

  • Title

1

Lawn-Boy 702343

Deflector-Chute

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

2

Lawn-Boy 710335

Blade-Mower

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

3

Lawn-Boy 710352

Bar-Cover Latch

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$108.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 744757

Frame Assembly

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

5

Lawn-Boy 146375

Nut-Hex

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$2.49

$

Usually ships in 3-6 days

0

6

Lawn-Boy 700138

Screw

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

7

Lawn-Boy 710327

Hanger-Bag

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

8

Lawn-Boy 710328

Frame-Bag

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

9

Lawn-Boy 744760

Grass Bag Assembly

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$221.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 744763

Tube Assembly

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$541.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 146205

Washer, Flat

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

12

Lawn-Boy 146251

Washer, Flat

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

13

Lawn-Boy 146252

Washer, Lock
(Superseded to 3253-3)

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$0.99

$

In Stock, Qty 20+

0

14

Lawn-Boy 146254

Nut, Hex

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

15

Lawn-Boy 146258

Washer, Lock
(Superseded to 3253-4)

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$0.99

$

In Stock, Qty 20+

0

16

Lawn-Boy 146259

Nut, Hex

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

17

Lawn-Boy 146299

Screw, Hex

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

18

Lawn-Boy 146368

Washer
(Superseded to 3256-23)

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$2.49

$

In Stock, Qty 20+

0

19

Lawn-Boy 700030

Bolt, Carriage

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$1.99

$

Usually ships in 3-6 days

0

20

Lawn-Boy 700257

Spring Clip

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

21

Lawn-Boy 700327

Bolt, Carriage

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

22

Lawn-Boy 702329

Wing Nut

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

23

Lawn-Boy 710343

Pin, Pivot

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

24

Lawn-Boy 744766

Cover & Decal Assembly

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

25

Lawn-Boy 146490

Washer

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

26

Lawn-Boy 710325

Strap-Screen Mounting

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

27

Lawn-Boy 710331

Gasket-Tube

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

28

Lawn-Boy 710332

Screen-Cover

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

29

Lawn-Boy 710333

Retainer-Gasket

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

30

Lawn-Boy 710334

Plate-Hinge

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

31

Lawn-Boy 710336

Plate-Corner

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

32

Lawn-Boy 710342

Angle-Cover

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$68.99

$

Usually ships in 3-6 days

0

33

Lawn-Boy 710345

Hinge

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

34

Lawn-Boy 710351

Rivet

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

35

Lawn-Boy 710360

Deflector

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

36

Lawn-Boy 744768

Chute & Decal Assembly

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

37

Lawn-Boy 710353

Latch-Cover

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available
