62933 - Toro Lawn Blower, 5hp (SN: 005000001 - 005999999) (1985) Blower Assembly Parts Diagram

Lawn Blower, 5hp

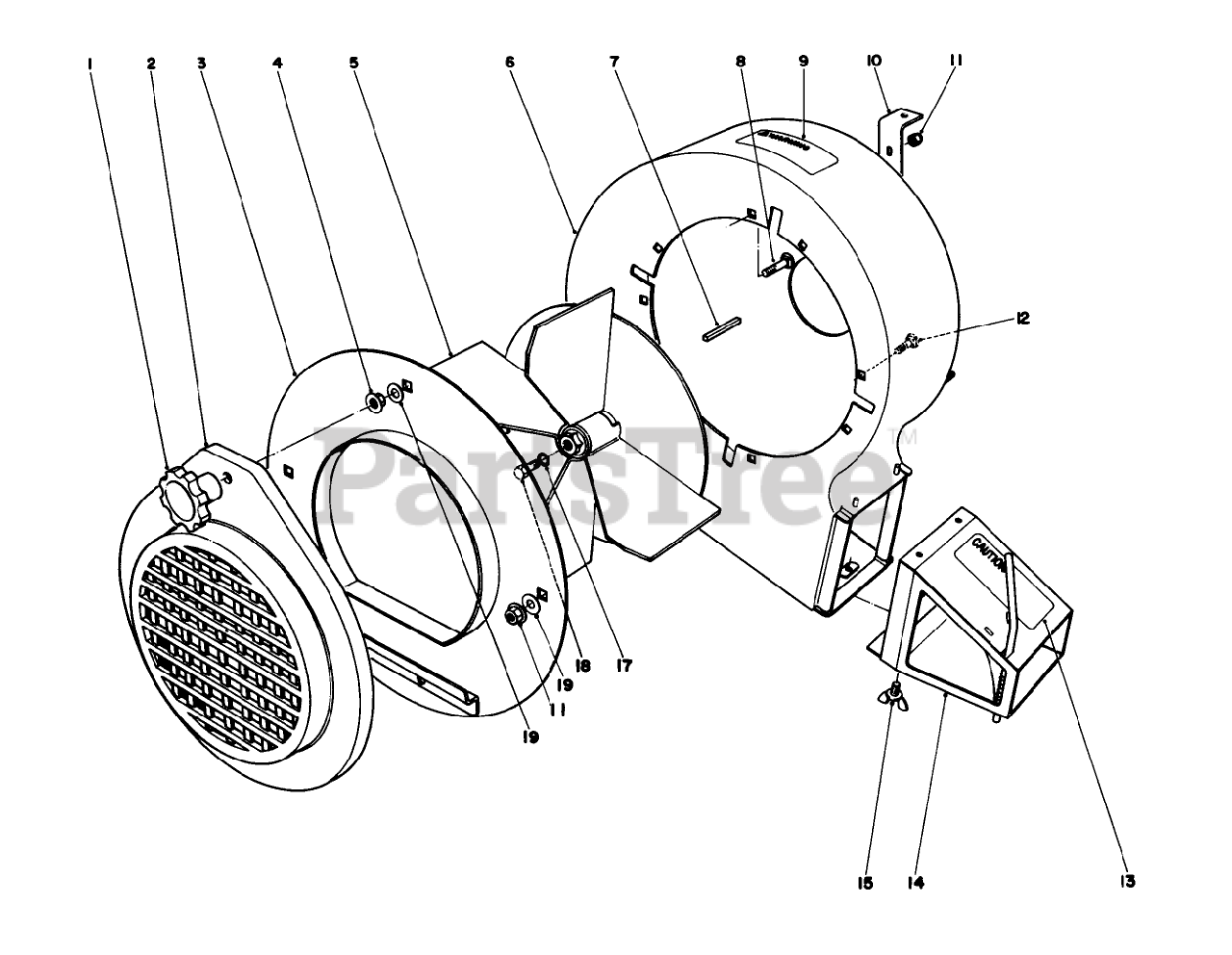

Blower Assembly Parts Diagram

  • Title

1

Toro 19-4050

KNOB

$18.99

$

In Stock, Qty 5

0

2

Toro 20-5780

INTAKE-BLOWER

$140.99

$

Usually ships in 3-6 days

0

3

Toro 20-5450

See Supercession: 20-5450-01
(Superseded to 20-5450-01)

$

$

Not available

4

Toro 32128-26

NUT-FLANGE

$6.99

$

Usually ships in 3-6 days

0

5

Toro 37-9270

DISCONTINUED
(Superseded to 37-9230-03)

$

$

Not available

6

Toro 20-5890

See Supercession: 20-5890-01
(Superseded to 20-5890-01)

$1359.99

$

Usually ships in 3-6 days

0

7

Toro 7-0036

KEY-SQUARE

$

$

Not available

8

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

9

Toro 37-9260

DISCONTINUED

$

$

Not available

10

Toro 39-4660

See Supercession: 39-4660-03
(Superseded to 39-4660-03)

$

$

Not available

11

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 7

0

12

Toro 3230-19

BOLT-CARR

$6.99

$

In Stock, only 3 left!

0

13

Toro 20-7900

DISCONTINUED

$

$

Not available

14

Toro 20-6570

DISCONTINUED

$

$

Not available

15

Toro 3288-6

1/4 - 20 3/4 WING SCR

$

$

Not available

17

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

18

Toro 40-6990

DISCONTINUED

$

$

Not available

19

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, only 2 left!

0
