63707 - Lawn-Boy 48" Side-Discharge Mower Deck (SN: G00000001 - G99999999) (1988) MOWER DECK PARTS LIST-48" MOWER DECK MODEL 63707 Parts Diagram

48" Side-Discharge Mower Deck

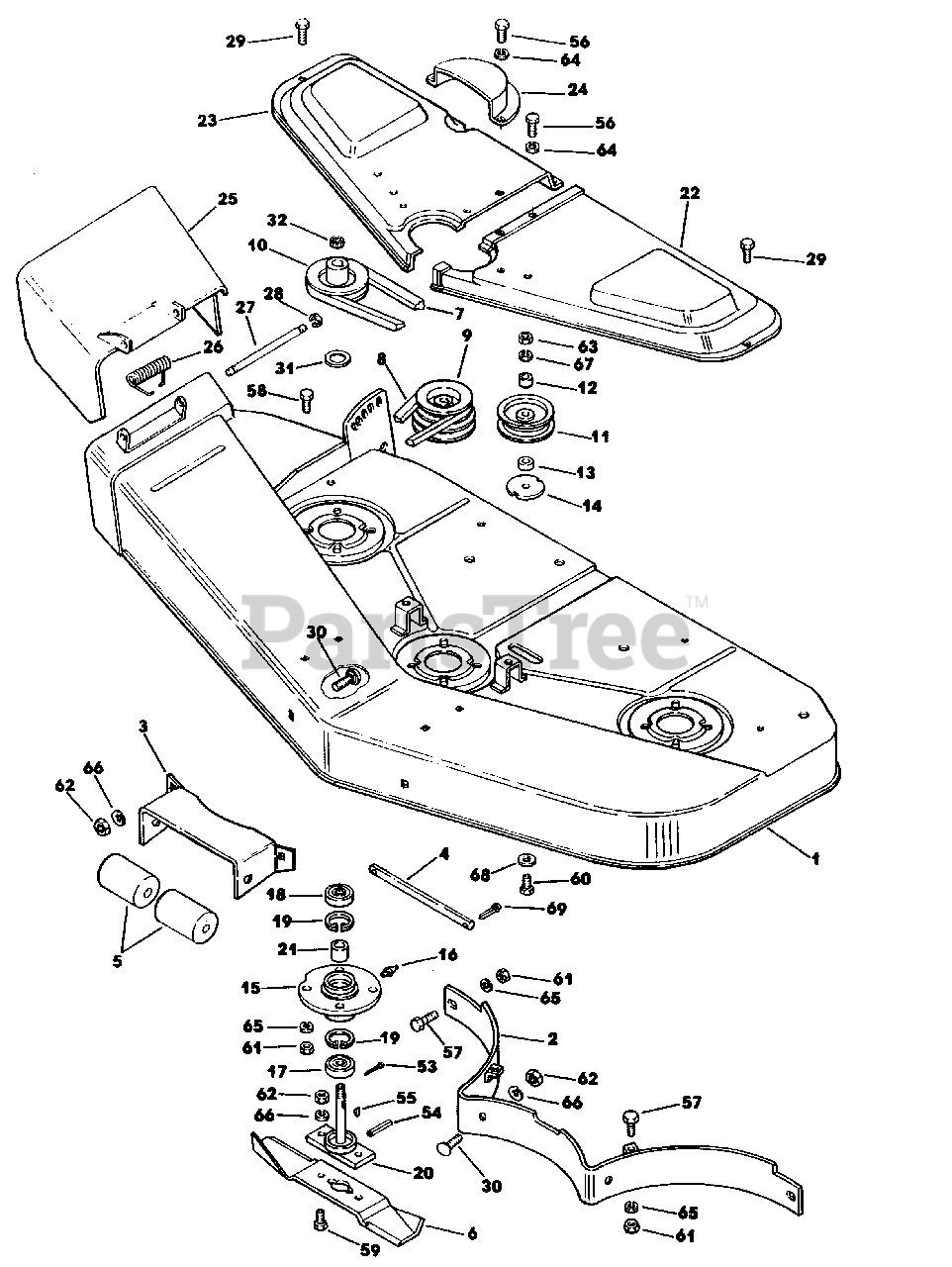

MOWER DECK PARTS LIST-48" MOWER DECK MODEL 63707 Parts Diagram

  • Title

1

Lawn-Boy 242272

Cutter Housing & Decal Assembly (42" Only)
(Superseded to 741449)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

Lawn-Boy 242273

Cutter Housing & Decal Assembly (48" Only)
(Superseded to 741090)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

2

Lawn-Boy 242363

Baffle Assembly (42" Only)
(Superseded to 740986)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

Lawn-Boy 242364

Baffle Assembly (48" Only)
(Superseded to 741066)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

3

Lawn-Boy 242255

Bracket, Roller
(Superseded to 702851)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

4

Lawn-Boy 243570

Shaft, Roller
(Superseded to 701212)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

5

Lawn-Boy 228574

Roller
(Superseded to 701203)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$74.99

$

Usually ships in 3-6 days

0

6

Lawn-Boy 37059

Blade (42" Only)
(Superseded to 702855)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

Lawn-Boy 37059

Blade Center (48" Only)
(Superseded to 702855)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

Lawn-Boy 200928

Blade (48" Only)
(Superseded to 703023)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

7

Lawn-Boy 11793

V-Belt, Deck (42" Only)
(Superseded to 702814)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

Lawn-Boy 11792

V-Belt, Deck (48" Only)
(Superseded to 107-8486)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$137.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 234292

V-Belt Drive
(Superseded to 703025)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

9

Lawn-Boy 33031

Pulley Drive (42" Only)
(Superseded to 702816)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

Lawn-Boy 33030

Pulley Drive (48" Only)
(Superseded to 703026)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

10

Lawn-Boy 33032

Pulley Blade Spindle
(Superseded to 702818)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

11

Lawn-Boy 11795

Pulley, Idler
(Superseded to 702815)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

12

Lawn-Boy 11742

Spacer
(Superseded to 702108)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

13

Lawn-Boy 11753

Spacer
(Superseded to 702109)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

14

Lawn-Boy 12817

Washer
(Superseded to 702811)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$73.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 234192

Spindle Housing
(Superseded to 700491)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

16

Lawn-Boy 236675

Grease Fitting
(Superseded to 302-5)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$3.99

$

In Stock, Qty 20+

0

17

Lawn-Boy 234191

Bearing
(Superseded to 93-2559)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$33.99

$

Usually ships in 3-6 days

0

18

Lawn-Boy 11080

Bearing
(Superseded to 109842)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$34.99

$

In Stock, Qty 8

0

19

Lawn-Boy 4637

Snap Ring
(Superseded to 32120-62)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$5.49

$

In Stock, Qty 12

0

20

Lawn-Boy 11760

Spindle Assembly
(Superseded to 740082)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$531.99

$

Usually ships in 3-6 days

0

21

Lawn-Boy 234189

Sleeve
(Superseded to 700498)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

22

Lawn-Boy 233019

Cover Assembly, L.H. (42" Only)
(Superseded to 740964)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

Lawn-Boy 243496

Cover Assembly, L.H. (48" Only)
(Superseded to 741069)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$571.99

$

Usually ships in 3-6 days

0

23

Lawn-Boy 237691

Cover Assembly, R.H. (42" Only)
(Superseded to 740967)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

Lawn-Boy 243494

Cover Assembly, R.H. (48" Only)
(Superseded to 741070)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

24

Lawn-Boy 237680

Guard, Drive Belt
(Superseded to 702834)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

25

Lawn-Boy 239482

Chute Extension
(Superseded to 740987)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$409.99

$

Usually ships in 3-6 days

0

26

Lawn-Boy 212759

Spring Chute
(Superseded to 710273)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

27

Lawn-Boy 212757

Shaft, Chute
(Superseded to 701198)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

28

Lawn-Boy 212677

E-Ring
(Superseded to 701197)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$3.99

$

Usually ships in 3-6 days

0

29

Lawn-Boy 213294

Screw, Thread Forming Hex Hd. 1/4-20 x 1/2
(Superseded to 701660)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

30

Lawn-Boy 36803

Bolt Carriage 3/8-16 x 3/4
(Superseded to 701911)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

31

Lawn-Boy 1230

Washer

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

32

Lawn-Boy 10933

Nut, Hex Slotted 3/4-16
(Superseded to 700499)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

53

Lawn-Boy 70726

Pin, Cotter 1/8 x 1-1/2 Plated
(Superseded to 3272-13)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$0.99

$

In Stock, Qty 6

0

54

Lawn-Boy 70784

Pin, Roll 5/16 x 1-1/2"
(Superseded to 32121-35)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$1.49

$

Usually ships in 3-6 days

0

55

Lawn-Boy 70812

Key, Woodruff 3/16 x 3/4
(Superseded to 3257-5)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$6.49

$

In Stock, Qty 19

0

56

Lawn-Boy 70090

Cap Screw, Hex Hd. 1/4-20 x 1/2 Plated, Grade 5
(Superseded to 700822)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$1.99

$

In Stock, Qty 5

0

57

Lawn-Boy 70143

Cap Screw, Hex Hd. 5/16-18 x 3/4 Plated, Grade 5
(Superseded to 146209)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$1.99

$

Usually ships in 3-6 days

0

58

Lawn-Boy 70151

Cap Screw, Hex Hd. 5/16-18 x 1" Plated, Grade 5
(Superseded to 700342)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

59

Lawn-Boy 70235

Cap Screw, Hex Hd. 3/8-16 x 1" Plated, Grade 5
(Superseded to 700973)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

60

Lawn-Boy 71195

Cap Screw, Hex Hd. 5/8-11 x 2" Plated, Grade 5
(Superseded to 702106)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

61

Lawn-Boy 70549

Nut, Hex 5/16-18 Plated
(Superseded to 146259)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

62

Lawn-Boy 70553

Nut, Hex 3/8-16 Plated
(Superseded to 146211)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$3.49

$

Usually ships in 3-6 days

0

63

Lawn-Boy 70585

Nut, Hex Jam 5/8-11 Plated
(Superseded to 702806)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

64

Lawn-Boy 70643

Washer, Spring Lock 1/4 Plated
(Superseded to 3253-3)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$0.99

$

In Stock, Qty 20+

0

65

Lawn-Boy 70646

Washer, Spring Lock 5/16 Plated
(Superseded to 325-34)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$3.99

$

In Stock, only 2 left!

0

66

Lawn-Boy 70649

Washer, Spring Lock 3/8 Plated
(Superseded to 146260)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

67

Lawn-Boy 70657

Washer, Spring Lock 5/8 Plated
(Superseded to 702103)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

68

Lawn-Boy 70694

Washer, Flat SAE 5/8 Plated
(Superseded to 146369)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

69

Lawn-Boy 70721

Cotter Pin 1/8 x 3/4 Plated
(Superseded to 3272-10)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$1.49

$

In Stock, only 4 left!

0
