68006 (CM-958H-S) - Toro Concrete Mixer (SN: 314000001 - 314999999) (2014) Frame and Yoke Assembly Parts Diagram

Concrete Mixer

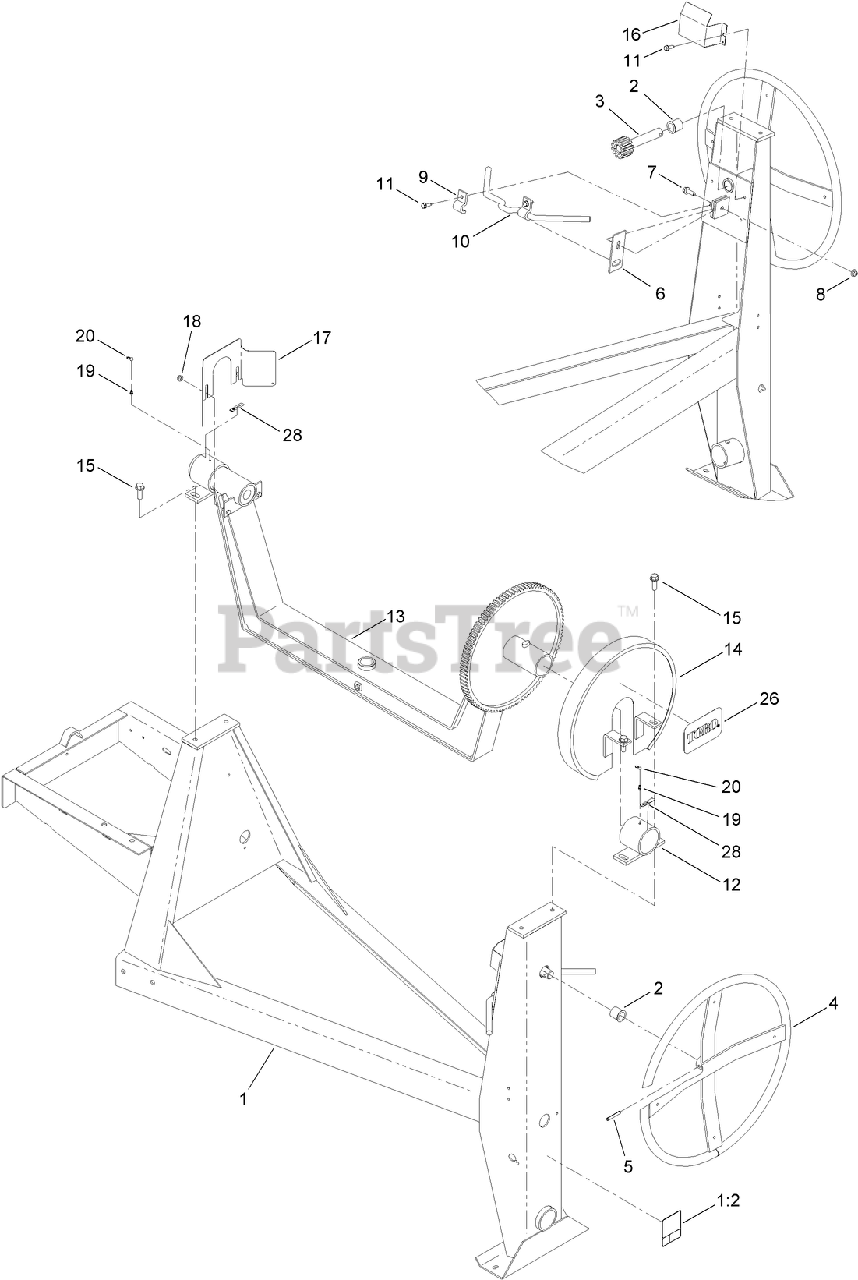

Frame and Yoke Assembly Parts Diagram

  • Title

1

Toro 127-2814

FRAME ASM

$3780.99

$

Usually ships in 3-6 days

0

1:2

Toro 125-8216

DECAL-SAFETY CHAIN, TOWING

$2.49

$

Usually ships in 3-6 days

0

2

Toro ST32032

BUSHING-NYLON

$17.99

$

In Stock, only 2 left!

0

3

Toro ST22029

SHAFT-TILT
(Superseded to 140-5722)

$128.99

$

Usually ships in 3-6 days

0

4

Toro ST22096-03

HANDWHEEL

$434.99

$

In Stock, only 1 left!

0

5

Toro 32121-27

PIN-ROLL

$2.99

$

Usually ships in 3-6 days

0

6

Toro ST27619-03

DOG-BRAKE

$27.99

$

Usually ships in 3-6 days

0

7

Toro 3234-24

SCREW-HHF

$3.99

$

In Stock, Qty 20+

0

8

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Toro ST27559-03

BRACKET-HANDLE

$88.99

$

Usually ships in 3-6 days

0

10

Toro ST27621

HANDLE-BRAKE

$63.99

$

Usually ships in 3-6 days

0

11

Toro 701243

SCREW-THD ROLL, HWH

$3.49

$

In Stock, Qty 20+

0

12

Toro ST24349-03

TRUNNION

$118.99

$

Usually ships in 3-6 days

0

13

Toro 125-6308

YOKE ASM

$2525.99

$

Usually ships in 3-6 days

0

14

Toro ST27617-03

GUARD-BRAKE, UPPER

$212.99

$

Usually ships in 3-6 days

0

15

Toro ST80031

SCREW-HWH

$10.99

$

Usually ships in 3-6 days

0

16

Toro ST27618-03

GUARD-BRAKE, LOWER

$40.99

$

Usually ships in 3-6 days

0

17

Toro ST27144-03

See Supercession: 130-2208-03
(Superseded to 130-2208-03)

$25.99

$

Usually ships in 3-6 days

0

18

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

19

Toro ST46042

FITTING-GREASE

$2.99

$

In Stock, only 2 left!

0

20

Toro ST47001

CAP-PLUG

$0.99

$

In Stock, Qty 8

0

26

Toro 99-4693

DECAL

$27.99

$

In Stock, only 2 left!

0

28

Toro 125-8175

DECAL-GREASE

$1.49

$

Usually ships in 3-6 days

0
