68008 (CM-958H-PED) - Toro Concrete Mixer (SN: 314000001 - 314999999) (2014) Engine and Belt Assembly Parts Diagram

Concrete Mixer

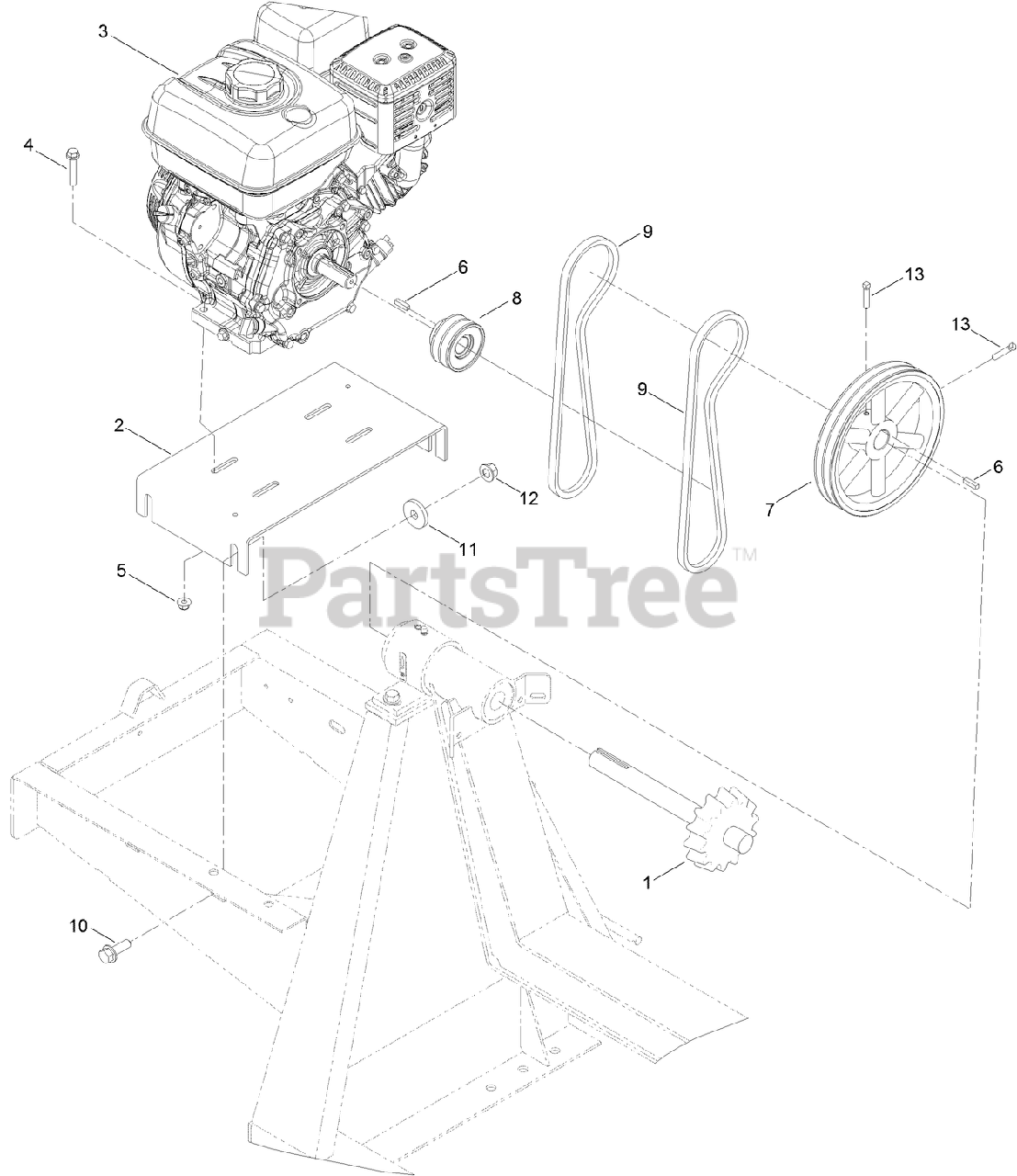

Engine and Belt Assembly Parts Diagram

  • Title

1

Toro ST21487

SHAFT-DRIVE

$272.99

$

Usually ships in 3-6 days

0

2

Toro 127-7579-03

BASE-ENGINE, 95CM

$66.99

$

Usually ships in 3-6 days

0

3

Toro 125-4812

ENGINE-HONDA, GX240

Note: Obtain parts from www.honda-engines.com

$3751.99

$

Usually ships in 3-6 days

0

4

Toro 108-3742

SCREW-HHF

$6.99

$

Usually ships in 3-6 days

0

5

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

6

Toro 5-7280

KEY

$5.99

$

In Stock, Qty 8

0

7

Toro ST34986-03

SHEAVE

$458.99

$

Usually ships in 3-6 days

0

8

Toro ST34984

SHEAVE

$113.99

$

Usually ships in 3-6 days

0

9

Toro 127-0075

BELT-V

$49.99

$

In Stock, Qty 5

0

10

Toro 100-6116

SCREW-HHF

$10.99

$

Usually ships in 3-6 days

0

11

Toro ST26326

WASHER-FLAT

$4.49

$

Usually ships in 3-6 days

0

12

Toro 99-5107

NUT-LOCK

$2.49

$

In Stock, Qty 20+

0

13

Toro 909546

SCREW-SET

$2.49

$

In Stock, only 2 left!

0
