68011 (CM-1258Y-SD) - Toro Concrete Mixer (SN: 314000001 - 314999999) (2014) Engine Assembly Parts Diagram

Concrete Mixer

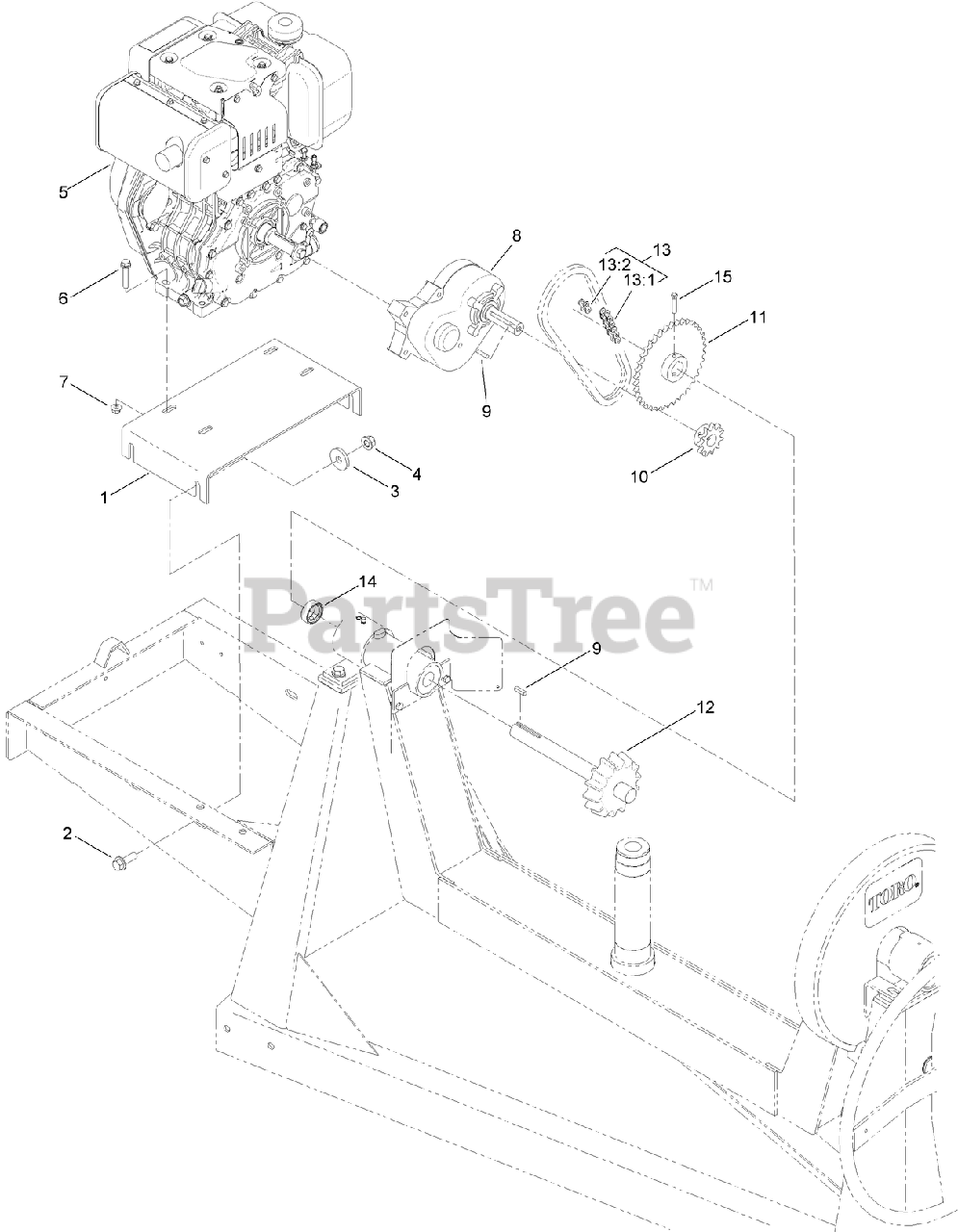

Engine Assembly Parts Diagram

  • Title

1

Toro ST39665-03

BASE-MOTOR

$98.99

$

Usually ships in 3-6 days

0

2

Toro 100-6116

SCREW-HHF

$10.99

$

Usually ships in 3-6 days

0

3

Toro ST26326

WASHER-FLAT

$4.49

$

Usually ships in 3-6 days

0

4

Toro 99-5107

NUT-LOCK

$2.49

$

In Stock, Qty 20+

0

5

Toro 125-8692

See Supercession: 131-2936
(Superseded to 131-2936)

$

$

Not available

6

Toro 108-3742

SCREW-HHF

$6.99

$

Usually ships in 3-6 days

0

7

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Toro ST39667

REDUCER-GEAR

$1921.99

$

Usually ships in 3-6 days

0

9

Toro 5-7280

KEY

$5.99

$

In Stock, Qty 8

0

10

Toro ST35284

SPROCKET

$120.99

$

Usually ships in 3-6 days

0

11

Toro ST34099

SPROCKET

$280.99

$

In Stock, only 1 left!

0

12

Toro ST21487

SHAFT-DRIVE

$272.99

$

Usually ships in 3-6 days

0

13

Toro ST22040

CHAIN SET

$209.99

$

Usually ships in 3-6 days

0

13:1

Toro ST34102

See Supercession: ST22040
(Superseded to ST22040)

$209.99

$

Usually ships in 3-6 days

0

13:2

Toro ST34104

LINK-CONNECTING, NO. 50

$7.99

$

Usually ships in 3-6 days

0

14

Toro ST32176

COLLAR-LOCKING

$15.99

$

Usually ships in 3-6 days

0

15

Toro 909546

SCREW-SET

$2.49

$

In Stock, only 2 left!

0
