68023 (MMX-1158H-S) - Toro Mortar Mixer (SN: 314000001 - 314999999) (2014) Drum, Paddle and Bearing Assembly Parts Diagram

Mortar Mixer

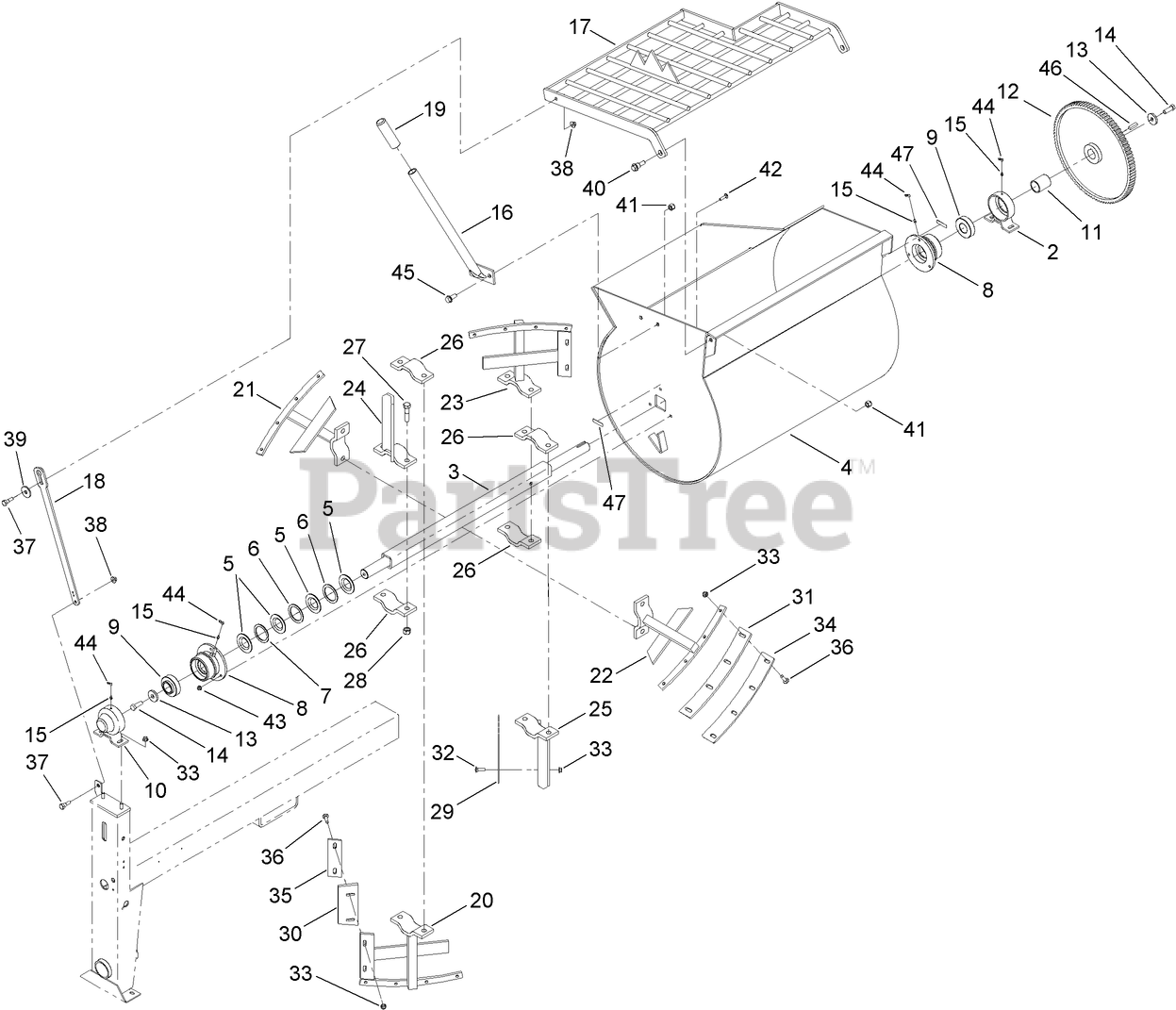

Drum, Paddle and Bearing Assembly Parts Diagram

  • Title

2

Toro ST24021-03

See Supercession: ST24021-01
(Superseded to ST24021-01)

$123.99

$

Usually ships in 3-6 days

0

3

Toro ST57631BD-01

SHAFT-PADDLE

$387.99

$

Usually ships in 3-6 days

0

4

Toro ST57074BD-01

DRUM

$

$

Not available

5

Toro ST32324

SEAL-DRUM

$12.99

$

In Stock, Qty 5

0

6

Toro ST24017

WASHER-FLAT

$5.99

$

In Stock, only 3 left!

0

7

Toro ST25881

WASHER-SPLIT

$14.99

$

In Stock, only 2 left!

0

8

Toro ST32326-01

See Supercession: 132-4117
(Superseded to 132-4117)

$207.99

$

Usually ships in 3-6 days

0

9

Toro ST32003

BEARING-BALL

$152.99

$

In Stock, only 2 left!

0

10

Toro ST36574-03

See Supercession: ST36574-01
(Superseded to ST36574-01)

$120.99

$

Usually ships in 3-6 days

0

11

Toro ST25909

SPACER-SHAFT, DRUM

$18.99

$

Usually ships in 3-6 days

0

12

Toro ST26933-03

GEAR-94 TEETH

$745.99

$

In Stock, only 2 left!

0

13

Toro ST26326

WASHER-FLAT

$4.49

$

Usually ships in 3-6 days

0

14

Toro 325-6

SCREW-HH

$3.99

$

In Stock, only 4 left!

0

15

Toro ST46042

FITTING-GREASE

$2.99

$

In Stock, only 2 left!

0

16

Toro ST24763-01

HANDLE-DUMP

$114.99

$

Usually ships in 3-6 days

0

17

Toro 125-8158-01

GUARD-DRUM

$918.99

$

Usually ships in 3-6 days

0

18

Toro 125-8163-03

GUARD-LIFTER

$

$

Not available

19

Toro ST47023

GRIP-HAND

$11.99

$

Usually ships in 3-6 days

0

20

Toro ST57047BD-01

PADDLE-FRONT

$156.99

$

Usually ships in 3-6 days

0

21

Toro ST57048BD-01

PADDLE-MID

$134.99

$

Usually ships in 3-6 days

0

22

Toro ST57049BD-01

PADDLE-MID

$134.99

$

Usually ships in 3-6 days

0

23

Toro ST57050BD-01

PADDLE-REAR

$162.99

$

Usually ships in 3-6 days

0

24

Toro ST57093BD-01

PADDLE-PUSHER

$68.99

$

Usually ships in 3-6 days

0

25

Toro ST57094BD-01

PADDLE-PUSHER

$68.99

$

Usually ships in 3-6 days

0

26

Toro ST26882-01

CLAMP-PADDLE

$104.99

$

Usually ships in 3-6 days

0

27

Toro ST80084

See Supercession: 327-7
(Superseded to 327-7)

$14.99

$

In Stock, only 1 left!

0

28

Toro 3296-53

NUT-LOCK, NI

$2.99

$

In Stock, Qty 12

0

29

Toro ST57086BD-01

BAR-BACKER, PUSHER END

$13.99

$

Usually ships in 3-6 days

0

30

Toro ST57089BD

See Supercession: 132-4145
(Superseded to 132-4145)

$27.99

$

Usually ships in 3-6 days

0

31

Toro ST57090BD

See Supercession: 132-4146
(Superseded to 132-4146)

$45.99

$

Usually ships in 3-6 days

0

32

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$2.49

$

In Stock, Qty 20+

0

33

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

34

Toro ST57084BD-01

BAR-BACKER, TOP

$182.99

$

Usually ships in 3-6 days

0

35

Toro ST57082BD-01

BAR-BACKER, END

$160.99

$

Usually ships in 3-6 days

0

36

Toro 3231-4

SCREW-CARR

$4.49

$

In Stock, Qty 20+

0

37

Toro 80-1300

BOLT-SHOULDER

$52.99

$

Usually ships in 3-6 days

0

38

Toro 32128-43

NUT-FLANGE

$1.49

$

In Stock, only 4 left!

0

39

Toro 106-2008

WASHER-THRUST

$8.49

$

Usually ships in 3-6 days

0

40

Toro 116-0780

SCREW-SHOULDER, HHF

$9.49

$

In Stock, Qty 7

0

41

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

42

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

43

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

44

Toro ST47001

CAP-PLUG

$0.99

$

In Stock, Qty 8

0

45

Toro 3234-38

SCREW-HHF

$6.99

$

In Stock, Qty 11

0

46

Toro ST81060

KEY-SQUARE

$3.49

$

In Stock, only 3 left!

0

47

Toro 125-8175

DECAL-GREASE

$1.49

$

Usually ships in 3-6 days

0
