68037 (e2500) - Toro Electric Ultra Buggy (SN: 413000000 - 414865902) Handle Assembly Parts Diagram

Electric Ultra Buggy

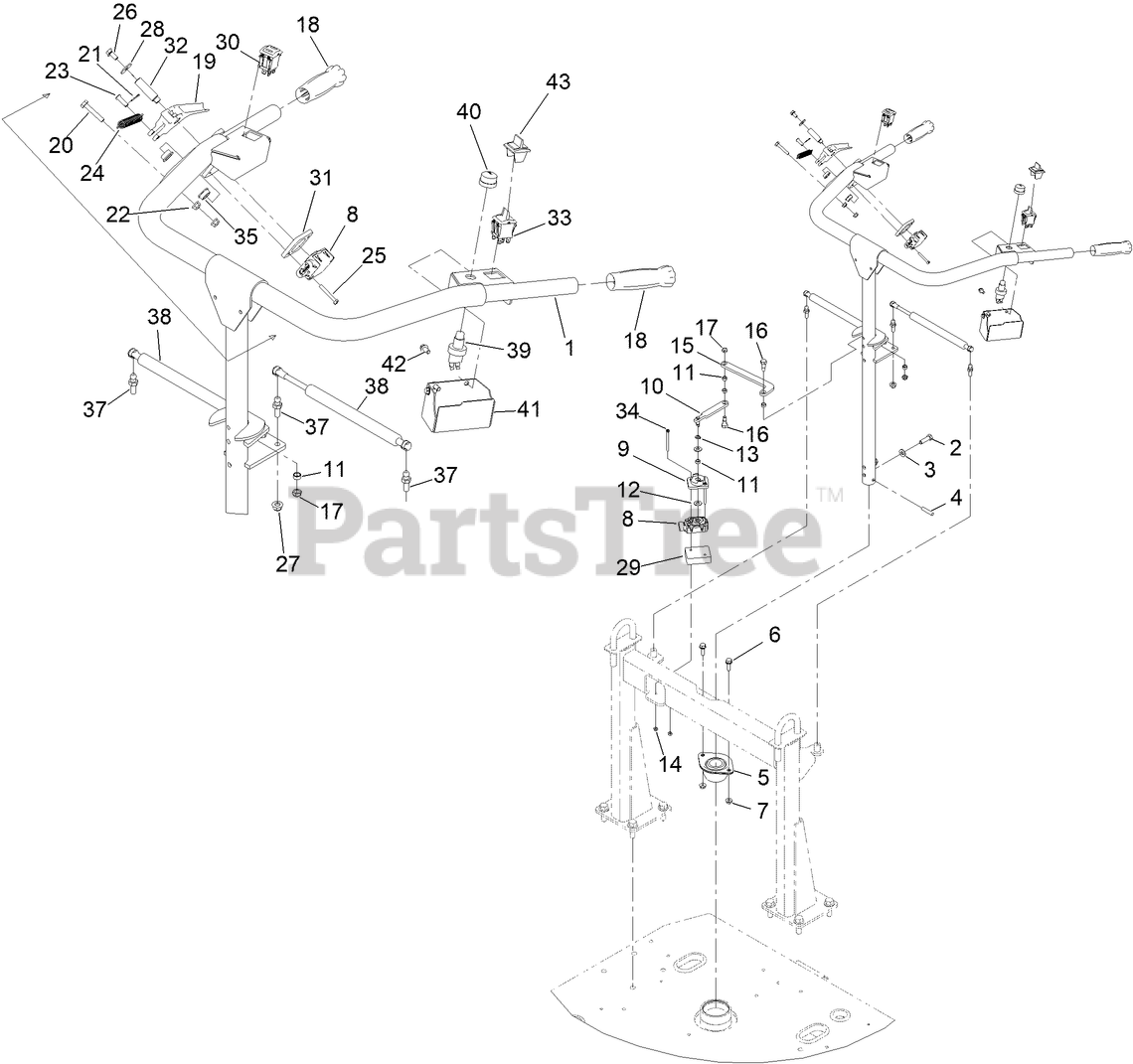

Handle Assembly Parts Diagram

  • Title

1

Toro 145-3199-03

HANDLE ASM [BLACK]
(Superseded to 145-3199-05)

$841.99

$

Usually ships in 3-6 days

0

2

Toro 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

3

Toro 100-4852

WASHER-HARDENED

$6.49

$

Usually ships in 3-6 days

0

4

Toro ST80309

PIN

$9.99

$

Usually ships in 3-6 days

0

5

Toro ST45930

SPHERICAL BEARING ASM

$245.99

$

Usually ships in 3-6 days

0

6

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, only 2 left!

0

7

Toro 32128-26

NUT-FLANGE

$6.99

$

Usually ships in 3-6 days

0

8

Toro 122-0917

SENSOR-POSITION

$227.99

$

Usually ships in 3-6 days

0

9

Toro 144-1731

MOUNT-LINKAGE

$159.99

$

Usually ships in 3-6 days

0

10

Toro 144-1728

LINKAGE ASM

$166.99

$

Usually ships in 3-6 days

0

11

Toro 120-9708

BUSHING

$

$

Currently unavailable

12

Toro 132-4593

WASHER

$1.49

$

Usually ships in 3-6 days

0

13

Toro 105-2410

RING-RETAINING

$

$

Currently unavailable

14

Toro 120-9659

NUT-LOCK, NI

$

$

Currently unavailable

15

Toro 144-1734

LINKAGE-STEERING

$22.99

$

Usually ships in 3-6 days

0

16

Toro 59-5400

BOLT-SHOULDER

$67.99

$

Usually ships in 3-6 days

0

17

Toro 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

18

Toro T62021010

GRIP-VINYL, BLACK

$18.99

$

Usually ships in 3-6 days

0

19

Toro 144-7153

HANDLE

$32.99

$

Usually ships in 3-6 days

0

20

Toro 321-43

CAPSCREW

$0.99

$

In Stock, Qty 7

0

21

Toro 3272-1

PIN-COTTER

$0.99

$

In Stock, Qty 10

0

22

Toro 119-4040

NUT-FLANGE, NI

$0.99

$

In Stock, Qty 8

0

23

Toro 1-808265

PIN-CLEVIS

$3.99

$

Usually ships in 3-6 days

0

24

Toro 137-2591

SPRING-EXTENSION

$6.99

$

Usually ships in 3-6 days

0

25

Toro 32105-1

SCREW-SHH

$3.99

$

In Stock, Qty 5

0

26

Toro 119-1065

SCREW-HWH

$2.99

$

Usually ships in 3-6 days

0

27

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

28

Toro 137-3106

WASHER-PLAIN

$3.99

$

Usually ships in 3-6 days

0

29

Toro 144-7124-0P

SPACER, STEERING-SENSOR

$75.99

$

Usually ships in 3-6 days

0

30

Toro 145-1152

SWITCH-DIRECTIONAL

$82.99

$

Usually ships in 3-6 days

0

31

Toro 144-1729-0P

PLATE-MOUNT, LINKAGE

$8.49

$

Usually ships in 3-6 days

0

32

Toro 145-1153

SHAFT-SENSOR

$46.99

$

Usually ships in 3-6 days

0

33

Toro MSC13973

SWITCH,(ON)OFF(ON),PINNED,CB

$67.99

$

Usually ships in 3-6 days

0

34

Toro 32105-30

SCREW-SHH

$

$

Currently unavailable

35

Toro 145-1154

BUSHING

$3.49

$

Usually ships in 3-6 days

0

37

Toro 145-4951

STUD-BALL

$8.99

$

Usually ships in 3-6 days

0

38

Toro 145-4921

DAMPER-GAS

$63.99

$

Usually ships in 3-6 days

0

39

Toro 112-3324

SWITCH-HORN

$53.99

$

Usually ships in 3-6 days

0

40

Toro 112-3313

NUT-WEATHERPROOF

$8.49

$

Usually ships in 3-6 days

0

41

Toro 147-3282-03

COVER-SWITCH

$11.99

$

Usually ships in 3-6 days

0

42

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

43

Toro MSC13972

BOOT,K2 PADDLE SWITCH

$20.99

$

Usually ships in 3-6 days

0
