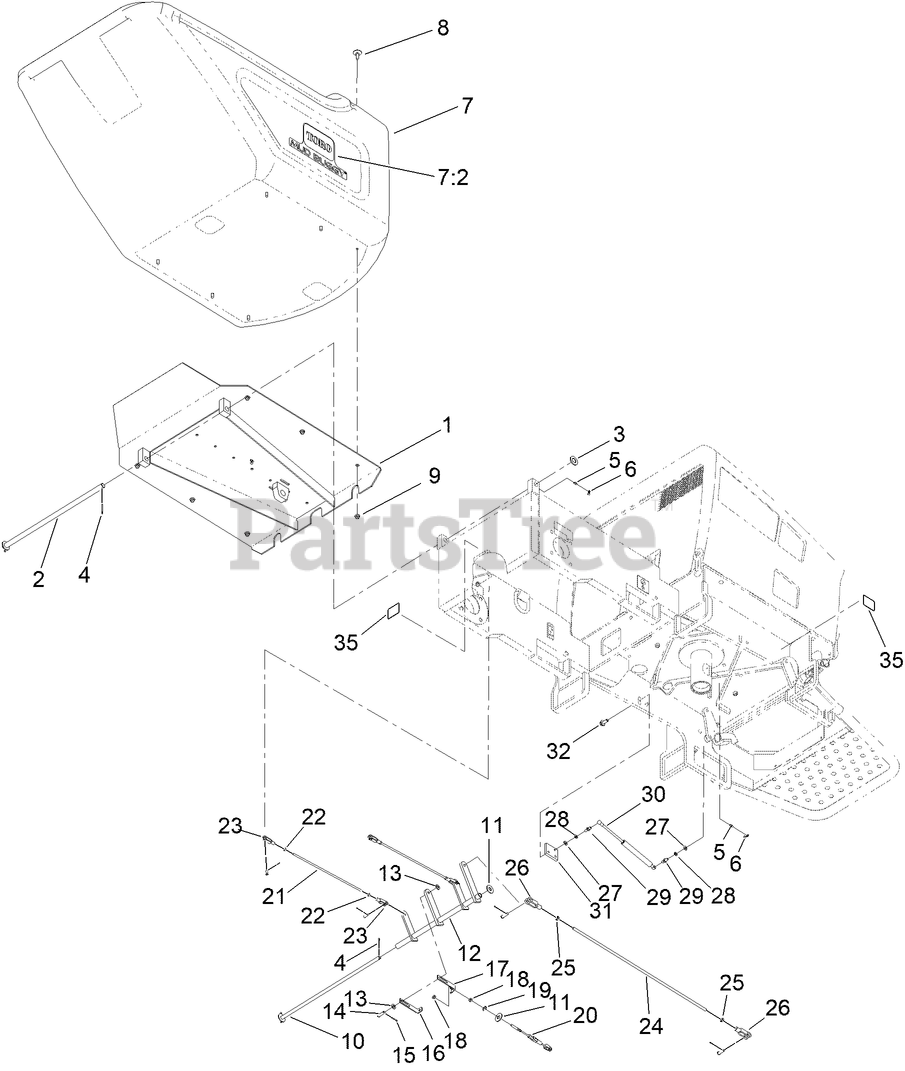

68038 (2500) - Toro Ultra Buggy (SN: 413000000 - 415299999) Brake and Hopper Assembly Parts Diagram

Ultra Buggy

Brake and Hopper Assembly Parts Diagram

  • Title

1

Toro 140-7666-03

HOPPER BASE ASM [BLACK]

$1259.99

$

Usually ships in 3-6 days

0

2

Toro ST45096

SHAFT-PIVOT

$117.99

$

Usually ships in 3-6 days

0

3

Toro 3256-28

WASHER-FLAT

$3.99

$

In Stock, Qty 20+

0

4

Toro 3272-13

PIN-COTTER

$0.99

$

In Stock, Qty 6

0

5

Toro 302-5

FITTING-GREASE

$3.99

$

In Stock, Qty 20+

0

6

Toro ST47001

CAP-PLUG

$0.99

$

In Stock, Qty 8

0

7

Toro 139-7240

HOPPER-MORTAR, ASM
(Superseded to 139-7216)

$1585.99

$

Usually ships in 3-6 days

0

7:2

Toro 147-3262

DECAL-TUB, ULTRA BUGGY

$24.99

$

Usually ships in 3-6 days

0

8

Toro ST80740

BOLT-ELEVATOR

$2.49

$

Usually ships in 3-6 days

0

9

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

10

Toro ST50925

SHAFT-PIVOT, LEVER (BRAKE)

$54.99

$

Usually ships in 3-6 days

0

11

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 11

0

12

Toro ST50571-03

LEVER-BRAKE

$514.99

$

Usually ships in 3-6 days

0

13

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Toro ST81110

PIN-CLEVIS

$20.99

$

Usually ships in 3-6 days

0

15

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 6

0

16

Toro ST45129

CLEVIS-HALF

$55.99

$

Usually ships in 3-6 days

0

17

Toro ST45128

CLEVIS-HALF (NOTCHED)

$56.99

$

Usually ships in 3-6 days

0

18

Toro 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 19

0

19

Toro 32120-47

RING-RETAINING, EXTERNAL

$1.49

$

In Stock, Qty 10

0

20

Toro ST45199

CABLE-BRAKE, BUGGY

$396.99

$

Usually ships in 3-6 days

0

21

Toro ST50995

ROD-BRAKE, FRONT

$29.99

$

Usually ships in 3-6 days

0

22

Toro 3219-1

NUT-HEX

$0.99

$

In Stock, only 2 left!

0

23

Toro 103509

YOKE

$51.99

$

Usually ships in 3-6 days

0

24

Toro ST45222

ROD-BRAKE

$50.99

$

Usually ships in 3-6 days

0

25

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 20+

0

26

Toro 1-633131

YOKE-LINKAGE, BRAKE

$17.99

$

In Stock, Qty 9

0

27

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

28

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

29

Toro 103-5752

STUD-BALL

$8.49

$

Usually ships in 3-6 days

0

30

Toro ST36571

SPRING-GAS

$186.99

$

Usually ships in 3-6 days

0

31

Toro ST57435

PLATE-PIVOT, SPRING (GAS)

$91.99

$

Usually ships in 3-6 days

0

32

Toro 33105-025

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

35

Toro 125-6694

DECAL-TIE DOWN

$3.99

$

Usually ships in 3-6 days

0
