68038 (2500) - Toro Ultra Buggy (SN: 413000000 - 415299999) Hydraulic Hard Line Routing Assembly Parts Diagram

Ultra Buggy

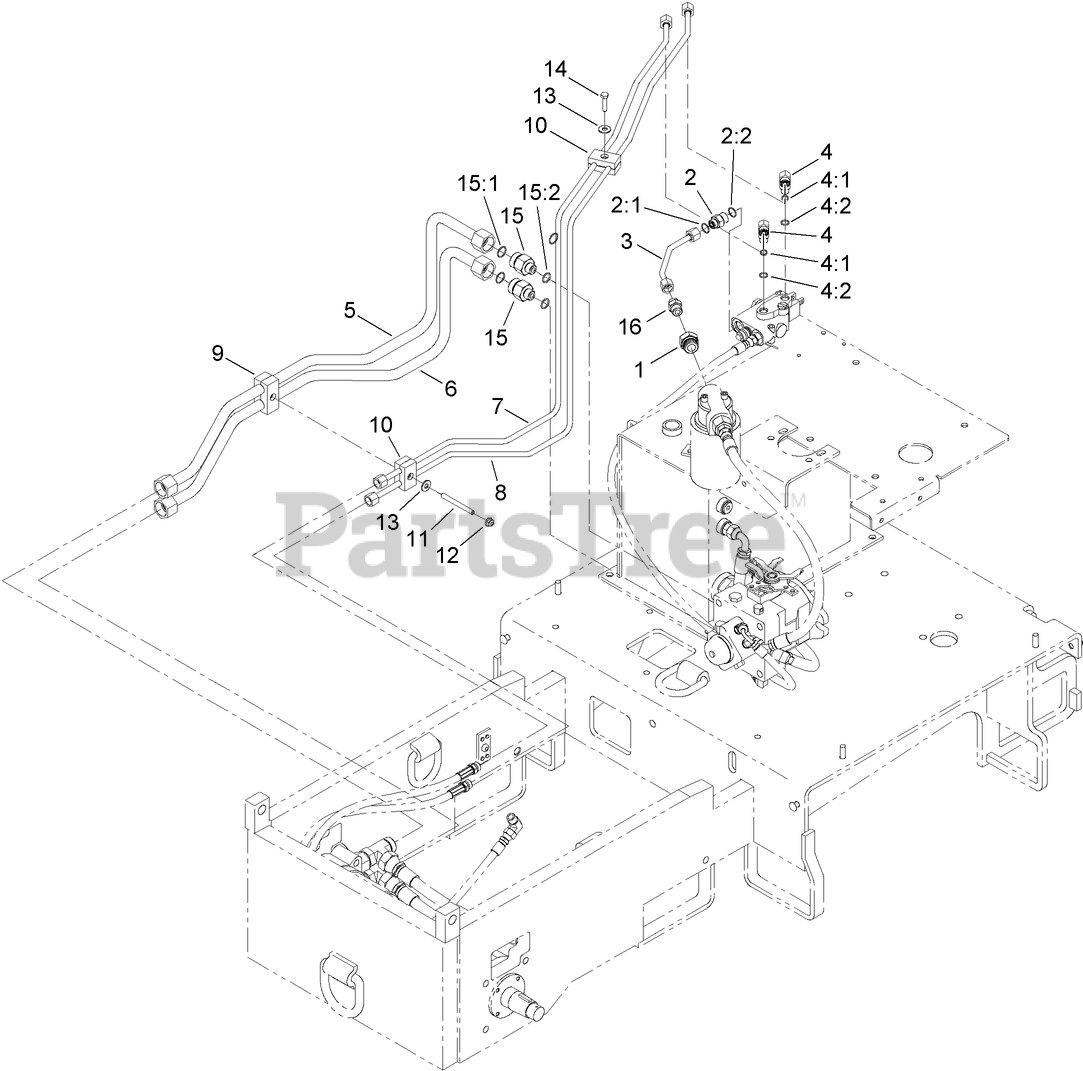

Hydraulic Hard Line Routing Assembly Parts Diagram

  • Title

1

Toro ST50971

FITTING-HYD

$

$

Currently unavailable

2

Toro 340-3

FITTING-STRAIGHT

$12.99

$

Usually ships in 3-6 days

0

2:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 16

0

2:2

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

3

Toro 125-8566

HYD TUBE ASM

$

$

Currently unavailable

4

Toro 340-77

FITTING-ELBOW, 90 DEG

$30.99

$

Usually ships in 3-6 days

0

4:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 16

0

4:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

5

Toro 125-8564

HYD TUBE ASM

$394.99

$

Usually ships in 3-6 days

0

6

Toro 125-8565

HYD TUBE ASM

$394.99

$

Usually ships in 3-6 days

0

7

Toro 125-8567

HYD TUBE ASM

$175.99

$

Usually ships in 3-6 days

0

8

Toro 125-8568

HYD TUBE ASM

$237.99

$

Usually ships in 3-6 days

0

9

Toro ST50985

CLAMP-TWIN

$12.99

$

Usually ships in 3-6 days

0

10

Toro ST37530

CLAMP-TWIN

$8.99

$

Usually ships in 3-6 days

0

11

Toro ST50990

ROD-CLAMP, HOSE

$

$

Currently unavailable

12

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

13

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

15

Toro 98-9921

FITTING-STRAIGHT

$57.99

$

Usually ships in 3-6 days

0

15:1

Toro 237-145

See Supercession: 237-58
(Superseded to 237-58)

$2.99

$

Usually ships in 3-6 days

0

15:2

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

16

Toro ST46679

FITTING-HYD

$8.99

$

Usually ships in 3-6 days

0
