68038 (2500) - Toro Ultra Buggy (SN: 413000000 - 415299999) Hydraulic Hose and Fitting Assembly Parts Diagram

Ultra Buggy

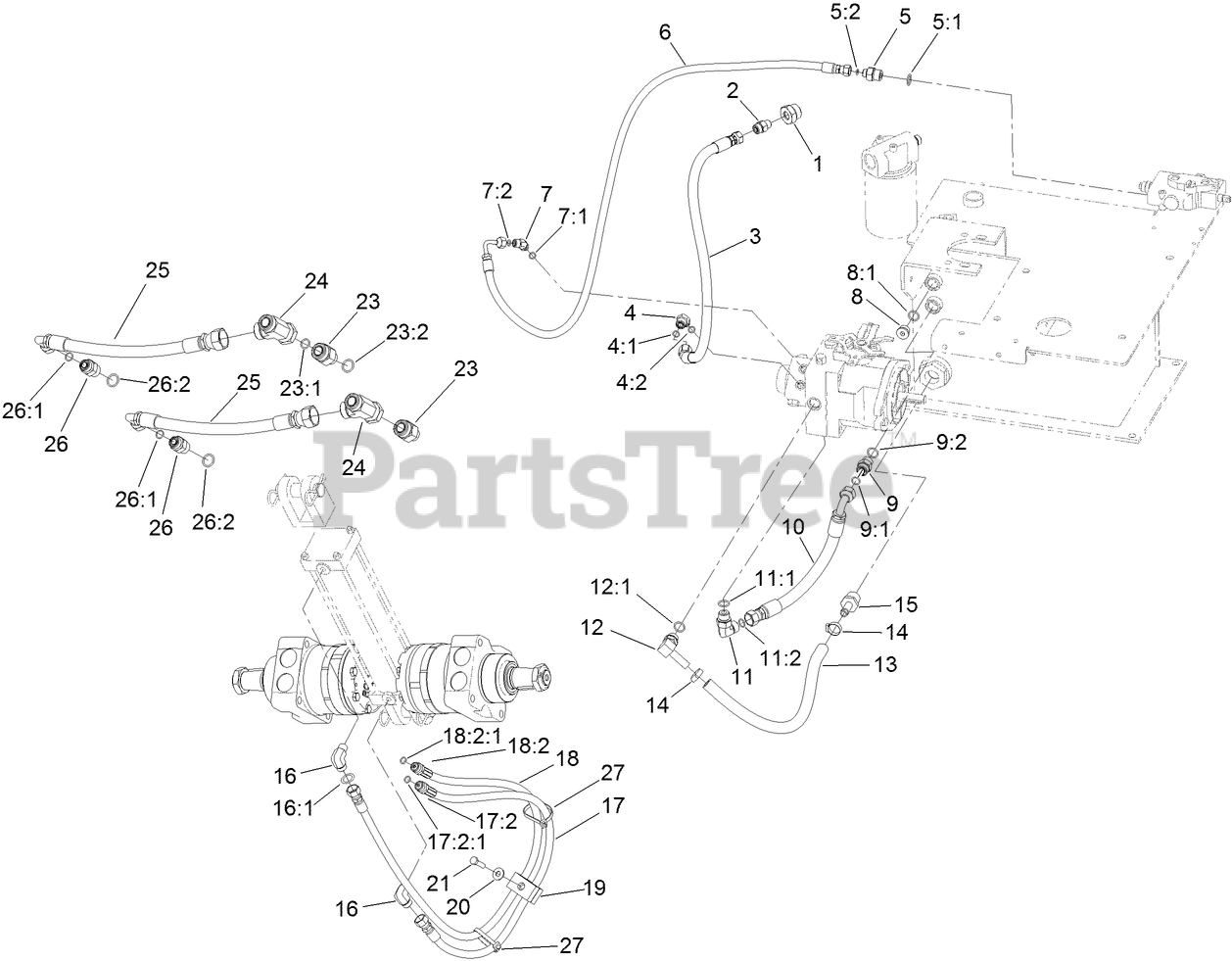

Hydraulic Hose and Fitting Assembly Parts Diagram

  • Title

1

Toro ST50971

FITTING-HYD

$

$

Currently unavailable

2

Toro ST46679

FITTING-HYD

$8.99

$

Usually ships in 3-6 days

0

3

Toro 125-8561

HYD HOSE ASM

$79.99

$

Usually ships in 3-6 days

0

4

Toro 340-54

ELBOW-45 DEG

$65.99

$

Usually ships in 3-6 days

0

4:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 16

0

4:2

Toro 237-78

O-RING

$4.99

$

In Stock, Qty 11

0

5

Toro 340-133

FITTING-STR

$47.99

$

Usually ships in 3-6 days

0

5:1

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

5:2

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

6

Toro 125-8562

HYD HOSE ASM

$110.99

$

Usually ships in 3-6 days

0

7

Toro 340-103

FITTING-HYD, 45 DEG

$49.99

$

Usually ships in 3-6 days

0

7:1

Toro 237-78

O-RING

$4.99

$

In Stock, Qty 11

0

7:2

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

8

Toro 353-988

PLUG-HEX

$14.99

$

Usually ships in 3-6 days

0

8:1

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

9

Toro 340-4

FITTING-STRAIGHT

$13.99

$

In Stock, only 3 left!

0

9:1

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

9:2

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

10

Toro 125-8560

HYD HOSE ASM

$85.99

$

Usually ships in 3-6 days

0

11

Toro 340-98

FITTING-ELBOW, 90 DEG

$37.99

$

In Stock, only 2 left!

0

11:1

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

11:2

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

12

Toro 354-120

FITTING-ELBOW, 90

$37.99

$

Usually ships in 3-6 days

0

12:1

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

13

Toro 98-8153

HOSE-RETURN

$18.99

$

Usually ships in 3-6 days

0

14

Toro 2412-141

CLAMP-DRIVE, WORM

$3.49

$

In Stock, Qty 7

0

15

Toro ST37528

FITTING-HYD

$

$

Not available

16

Toro 340-112

FITTING-ELBOW, 90

$50.99

$

Usually ships in 3-6 days

0

16:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 16

0

17

Toro 125-8569

HYD HOSE ASM

$111.99

$

Usually ships in 3-6 days

0

17:2

FITTING-STRAIGHT,RGD

Note: Not serviced separately

$

$

Not available

17:2:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 16

0

18

Toro 125-8570

HYD HOSE ASM

$123.99

$

Usually ships in 3-6 days

0

18:2

FITTING-STRAIGHT,RGD

Note: Not serviced separately

$

$

Not available

18:2:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 16

0

19

Toro ST37529

CLAMP-TWIN

$19.99

$

Usually ships in 3-6 days

0

20

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

21

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

23

Toro 340-66

FITTING-STRAIGHT

$30.99

$

Usually ships in 3-6 days

0

23:1

Toro 237-80

O-RING

$7.49

$

In Stock, Qty 7

0

23:2

Toro 237-58

O-RING

$2.99

$

Usually ships in 3-6 days

0

24

Toro ST50975

FITTING-HYD

$44.99

$

Usually ships in 3-6 days

0

25

Toro 125-8559

HYD HOSE ASM

$120.99

$

Usually ships in 3-6 days

0

26

Toro 340-6

FITTING-STRAIGHT

$22.99

$

Usually ships in 3-6 days

0

26:1

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

26:2

Toro 237-80

O-RING

$7.49

$

In Stock, Qty 7

0

27

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0
