68038 (2500) - Toro Ultra Buggy (SN: 413000000 - 415299999) Hydraulic Motor Assembly No. ST50926 Parts Diagram

Ultra Buggy

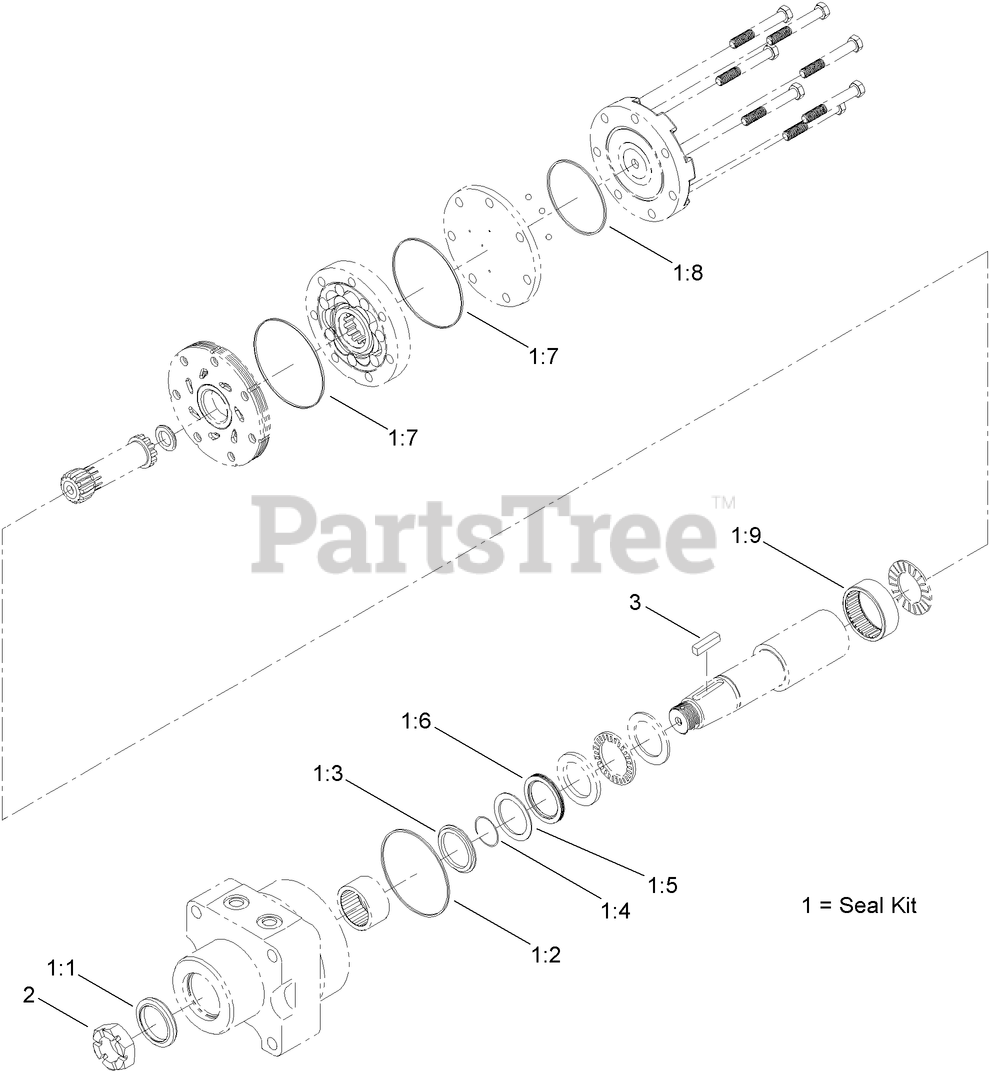

Hydraulic Motor Assembly No. ST50926 Parts Diagram

  • Title

1

Toro 127-5568

SEAL KIT

$168.99

$

Usually ships in 3-6 days

0

1:1

SEAL-DUST

Note: Not serviced separately

$

$

Not available

1:2

SEAL-HOUSING

Note: Not serviced separately

$

$

Not available

1:3

RING-BACK UP, METAL

Note: Not serviced separately

$

$

Not available

1:4

SHIM-BACK UP

Note: Not serviced separately

$

$

Not available

1:5

Seal-Back Up

Note: Not serviced separately

$

$

Not available

1:6

SEAL-Shaft

Note: Not serviced separately

$

$

Not available

1:7

SEAL-BODY

Note: Not serviced separately

$

$

Not available

1:8

SEAL-ENDCOVER

Note: Not serviced separately

$

$

Not available

1:9

BEARING-HOUSING, REAR

Note: Not serviced separately

$

$

Not available

2

Toro 127-5569

NUT-SHAFT

$119.99

$

Usually ships in 3-6 days

0

3

Toro 127-5570

KEY-SHAFT

$34.99

$

Usually ships in 3-6 days

0
