68038 (2500) - Toro Ultra Buggy (SN: 413000000 - 415299999) Steering Handle and Axle Assembly Parts Diagram

Ultra Buggy

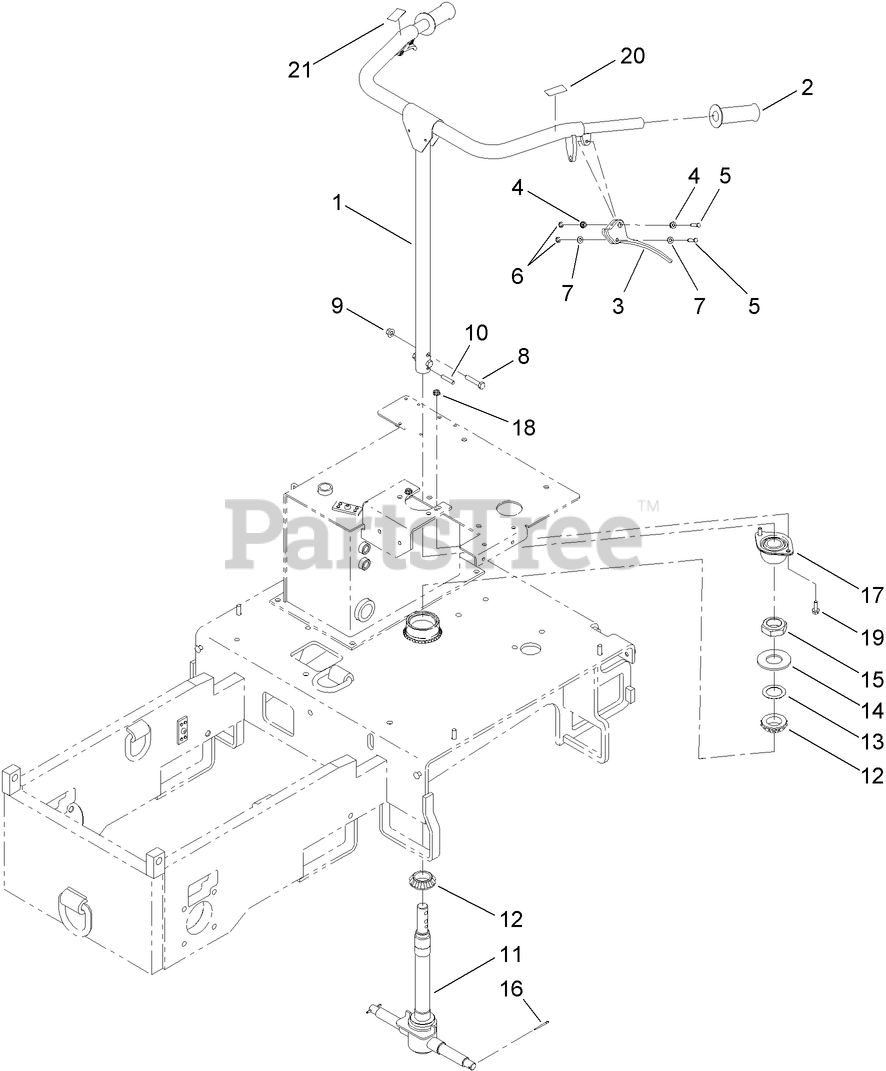

Steering Handle and Axle Assembly Parts Diagram

  • Title

1

Toro ST50941-03

HANDLE-STEERING

$1031.99

$

Usually ships in 3-6 days

0

2

Toro ST47125

GRIP-HANDLE

$15.99

$

In Stock, only 1 left!

0

3

Toro ST50937

HANDLE-CONTROL,

$166.99

$

Usually ships in 3-6 days

0

4

Toro ST50938

BUSHING-LEVER, CONTROL

$21.99

$

In Stock, only 2 left!

0

5

Toro ST81220

PIN-CLEVIS

$11.99

$

Usually ships in 3-6 days

0

6

Toro 32151-86

E-RING

$2.99

$

In Stock, Qty 15

0

7

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

8

Toro 33115-050

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

9

Toro 33005-00

NUT-HF

$2.49

$

In Stock, only 3 left!

0

10

Toro ST80309

PIN

$9.99

$

Usually ships in 3-6 days

0

11

Toro ST37358-03

AXLE-STEERING

$928.99

$

Usually ships in 3-6 days

0

12

Toro ST32161

BEARING-ROLLER

$170.99

$

Usually ships in 3-6 days

0

13

Toro ST81109

WASHER-THRUST

$29.99

$

Usually ships in 3-6 days

0

14

Toro ST36934

PLATE-COVER, BEARING

$20.99

$

Usually ships in 3-6 days

0

15

Toro ST81108

NUT

$44.99

$

Usually ships in 3-6 days

0

16

Toro 3272-13

PIN-COTTER

$0.99

$

In Stock, Qty 6

0

17

Toro ST45930

SPHERICAL BEARING ASM

$245.99

$

Usually ships in 3-6 days

0

18

Toro 32128-26

NUT-FLANGE

$6.99

$

Usually ships in 3-6 days

0

19

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, only 2 left!

0

20

Toro 125-4961

DECAL-REVERSE

$14.99

$

Usually ships in 3-6 days

0

21

Toro 125-4960

DECAL-FORWARD

$14.99

$

Usually ships in 3-6 days

0
