68038 (2500) - Toro Ultra Buggy (SN: 413000000 - 415299999) Wheel and Brake Assembly Parts Diagram

Ultra Buggy

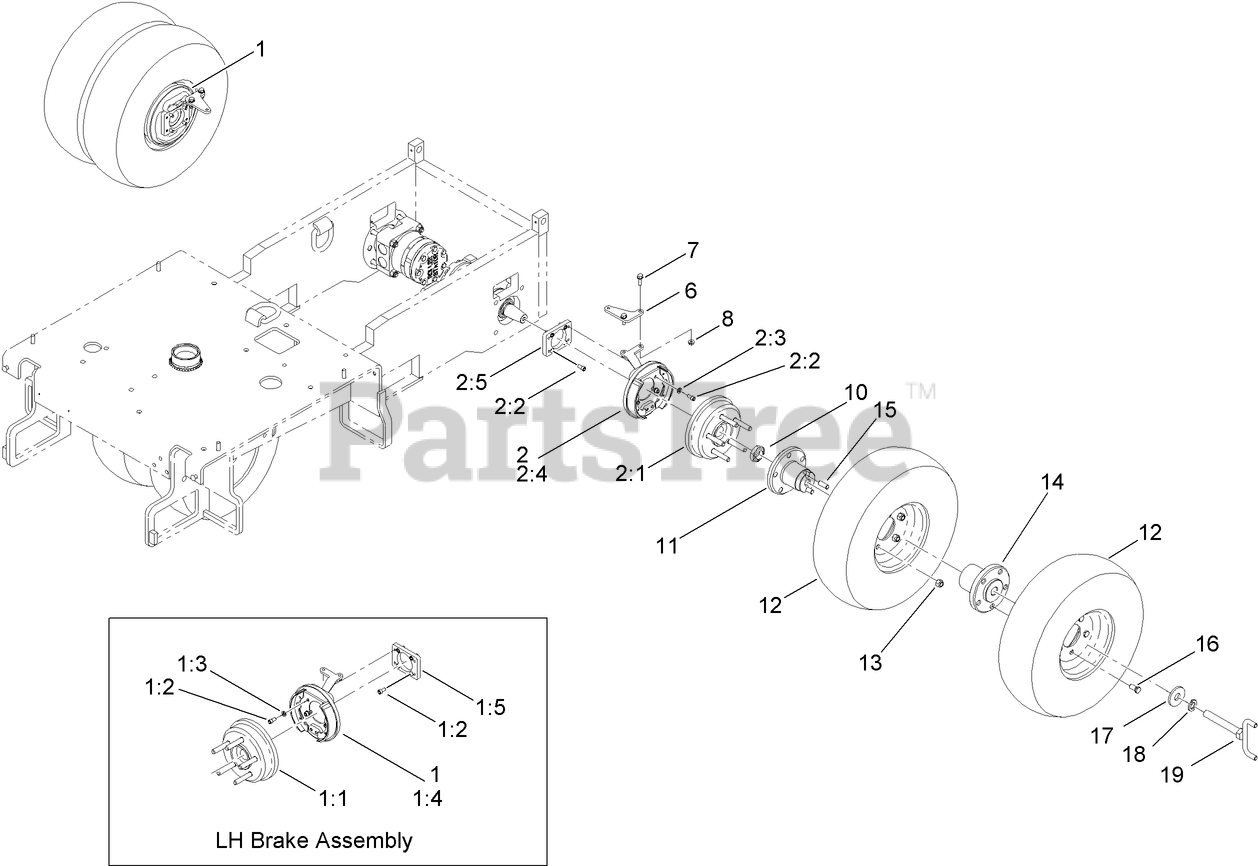

Wheel and Brake Assembly Parts Diagram

  • Title

1

Toro ST50927

LH BRAKE ASM

$625.99

$

Usually ships in 3-6 days

0

1:1

Toro 127-5562

5 LUG HUB ASM

$272.99

$

Usually ships in 3-6 days

0

1:2

Toro 127-5563

BOLT

$0.99

$

Usually ships in 3-6 days

0

1:3

Toro 127-5564

WASHER-LOCK

$0.99

$

Usually ships in 3-6 days

0

1:4

Toro 127-5565

BRAKE-LH

$441.99

$

Usually ships in 3-6 days

0

1:5

Toro 127-5567

BLOCK-BRAKE MOUNT

$56.99

$

Usually ships in 3-6 days

0

2

Toro ST50928

RH BRAKE ASM

$625.99

$

Usually ships in 3-6 days

0

2:1

Toro 127-5562

5 LUG HUB ASM

$272.99

$

Usually ships in 3-6 days

0

2:2

Toro 127-5563

BOLT

$0.99

$

Usually ships in 3-6 days

0

2:3

Toro 127-5564

WASHER-LOCK

$0.99

$

Usually ships in 3-6 days

0

2:4

Toro 127-5566

BRAKE-RH

$420.99

$

Usually ships in 3-6 days

0

2:5

Toro 127-5567

BLOCK-BRAKE MOUNT

$56.99

$

Usually ships in 3-6 days

0

6

Toro ST50923

PLATE-LINKAGE, BRAKE

$14.99

$

Usually ships in 3-6 days

0

7

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, only 1 left!

0

8

Toro 32128-26

NUT-FLANGE

$6.99

$

Usually ships in 3-6 days

0

10

Toro 127-5569

NUT-SHAFT

$119.99

$

Usually ships in 3-6 days

0

11

Toro ST50994

SPACER-WHEEL, 5 BOLT

$959.99

$

Usually ships in 3-6 days

0

12

Toro ST45197

WHEEL ASM (WITH FOAM)

$587.99

$

Usually ships in 3-6 days

0

13

Toro ST80045

NUT-LUG

$3.49

$

Usually ships in 3-6 days

0

14

Toro ST45080

SPACER-WHEEL

$579.99

$

Usually ships in 3-6 days

0

15

Toro ST80423

PIN-ROD, CONNECTING

$7.49

$

Usually ships in 3-6 days

0

16

Toro ST81114

BOLT-LUG

$10.99

$

Usually ships in 3-6 days

0

17

Toro ST81014

WASHER-FLAT

$5.99

$

Usually ships in 3-6 days

0

18

Toro 100-7607

WASHER-LOCK

$4.49

$

Usually ships in 3-6 days

0

19

Toro ST45106

PIN-QUICK RELEASE

$53.99

$

Usually ships in 3-6 days

0
