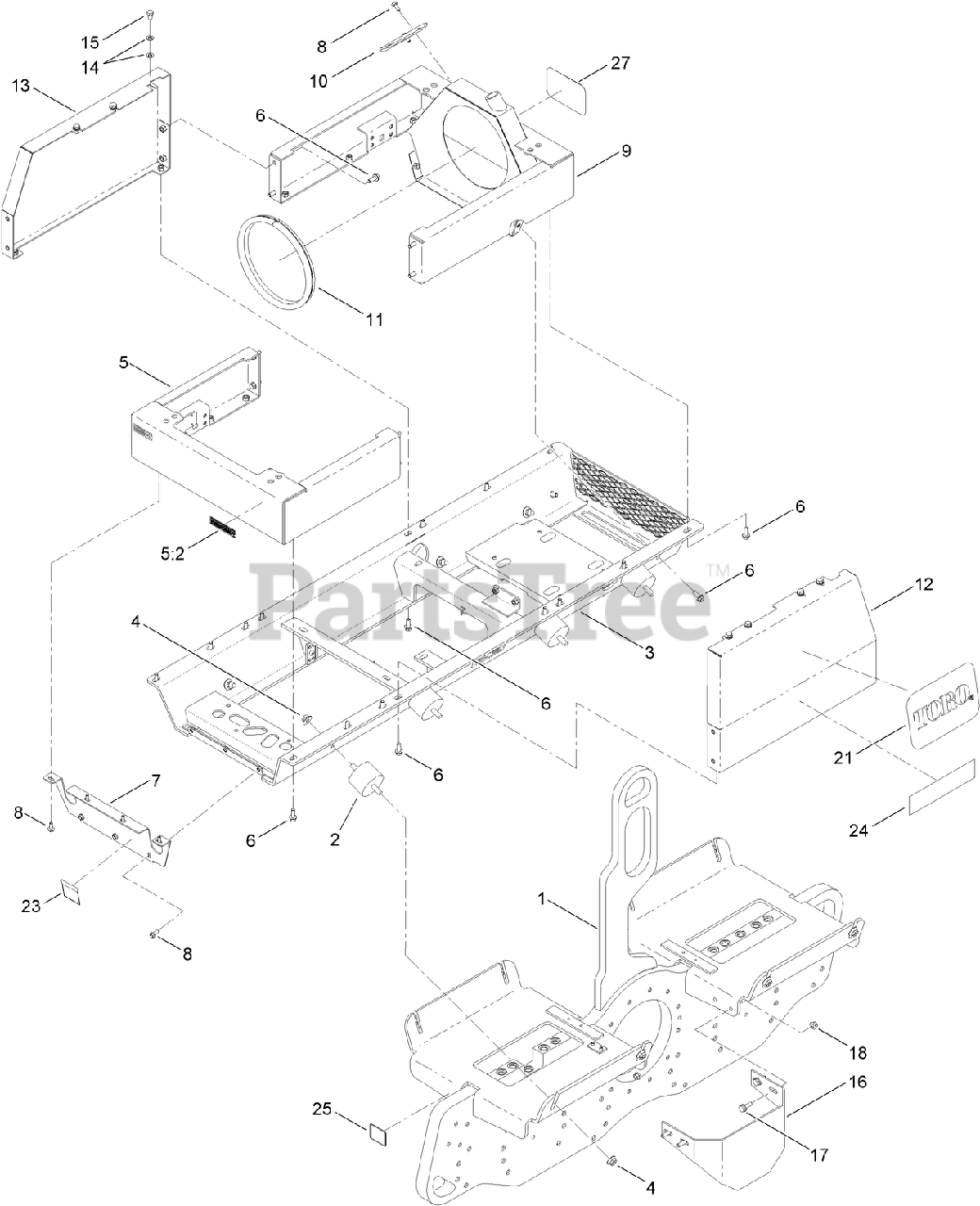

68039 (TR-34 D) - Toro Trench Roller (SN: 314000001 - 314999999) (2014) Frame Assembly Parts Diagram

Trench Roller

Frame Assembly Parts Diagram

  • Title

1

Toro 125-6379

FRAME-LOWER

$

$

Currently unavailable

2

Toro ST47443

MOUNT-SHOCK, FRAME

$199.99

$

Usually ships in 3-6 days

0

3

Toro 125-8230-03

FRAME-UPPER

$

$

Currently unavailable

4

Toro 32128-56

NUT-HF

$12.99

$

Usually ships in 3-6 days

0

5

Toro 127-2870

OPERATOR HOOD RAIL ASM

$621.99

$

Usually ships in 3-6 days

0

5:2

Toro 117-2718

DECAL-ARRESTER, SPARK

$7.99

$

Usually ships in 3-6 days

0

6

Toro 3234-42

SCREW-HHF

$3.99

$

In Stock, Qty 20+

0

7

Toro ST39983-03

COVER-FRAME, LOWER (BACK)

$53.99

$

Usually ships in 3-6 days

0

8

Toro 98-9940

SCREW-HHF

$2.49

$

In Stock, Qty 10

0

9

Toro 125-6389-03

RAIL-HOOD, ENGINE

$

$

Currently unavailable

10

Toro ST36483-03

BRACKET-MOUNTING, AIR FILTER

$39.99

$

Usually ships in 3-6 days

0

11

Toro ST47454

SEAL-INLET, AIR

$30.99

$

Usually ships in 3-6 days

0

12

Toro 125-8224-03

COVER-RIGHT

$231.99

$

Usually ships in 3-6 days

0

13

Toro 125-8225-03

COVER-LEFT

$231.99

$

Usually ships in 3-6 days

0

14

Toro 33095-00

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

15

Toro 33115-016

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

16

Toro ST57781-03

GUARD-MOTOR, ECCENTRIC

$129.99

$

Usually ships in 3-6 days

0

17

Toro 33105-030

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0

18

Toro 33005-00

NUT-HF

$2.49

$

In Stock, only 3 left!

0

21

Toro 105-4222

DECAL

$14.99

$

In Stock, only 1 left!

0

23

Toro 125-8189

DECAL-PARKING BRAKE

$15.99

$

Usually ships in 3-6 days

0

24

Toro 125-8186

DECAL

$12.99

$

Usually ships in 3-6 days

0

25

Toro 125-6694

DECAL-TIE DOWN

$3.99

$

Usually ships in 3-6 days

0

27

Toro 99-4693

DECAL

$27.99

$

In Stock, only 2 left!

0
