68039 (TR-34 D) - Toro Trench Roller (SN: 314000001 - 314999999) (2014) Hydraulic Routing Assembly Main Frame Parts Diagram

Trench Roller

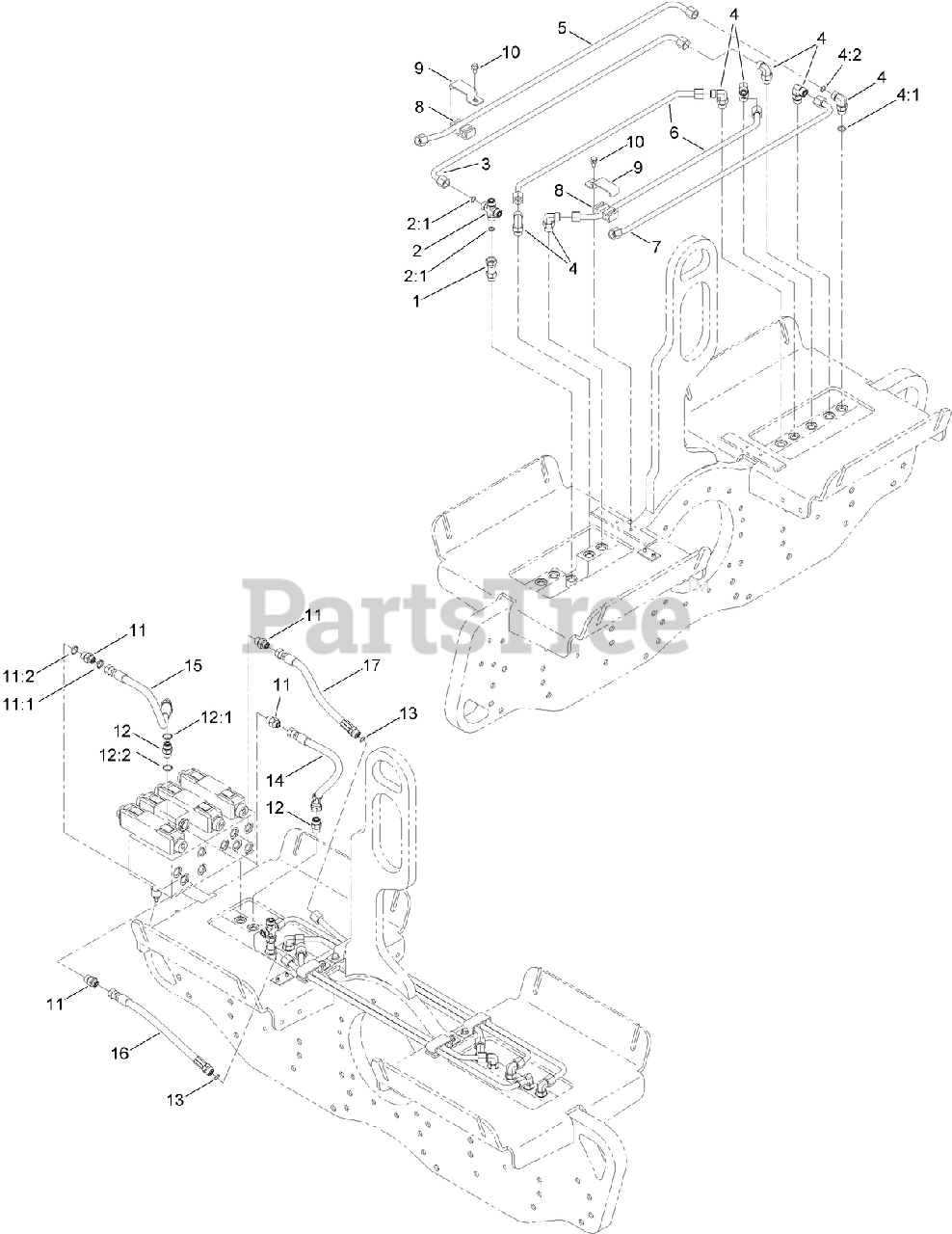

Hydraulic Routing Assembly Main Frame Parts Diagram

  • Title

1

Toro ST46912

FITTING-HYD

$69.99

$

Usually ships in 3-6 days

0

2

Toro 100-7670

ADAPTER-HYD

$181.99

$

Usually ships in 3-6 days

0

2:1

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

3

Toro 125-8577

HYD TUBE ASM

$92.99

$

Usually ships in 3-6 days

0

4

Toro 340-98

FITTING-ELBOW, 90 DEG

$37.99

$

In Stock, only 2 left!

0

4:1

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

4:2

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

5

Toro 125-8576

HYD TUBE ASM

$168.99

$

Usually ships in 3-6 days

0

6

Toro 125-8578

HYD TUBE ASM

$

$

Currently unavailable

7

Toro 125-8579

HYD TUBE ASM

$68.99

$

Usually ships in 3-6 days

0

8

Toro ST36493

TUBE-CAPTIVATOR

$85.99

$

Usually ships in 3-6 days

0

9

Toro ST36484

See Supercession: ST36484-03
(Superseded to ST36484-03)

$

$

Not available

10

Toro 33104-016

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

11

Toro 340-3

FITTING-STRAIGHT

$12.99

$

Usually ships in 3-6 days

0

11:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 16

0

11:2

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

12

Toro 340-4

FITTING-STRAIGHT

$13.99

$

In Stock, only 3 left!

0

12:1

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

12:2

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

13

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

14

Toro 127-7498

HOSE ASM

$

$

Not available

15

Toro 127-7499

HOSE ASM

$77.99

$

Usually ships in 3-6 days

0

16

Toro 127-7500

HOSE ASM

$86.99

$

Usually ships in 3-6 days

0

17

Toro 127-7501

HOSE ASM

$74.99

$

Usually ships in 3-6 days

0
