68040 (VIB-1) - Toro Concrete Vibrator (SN: 313000001 - 313999999) (2013) 1.0 Vibratory Assembly Parts Diagram

Concrete Vibrator

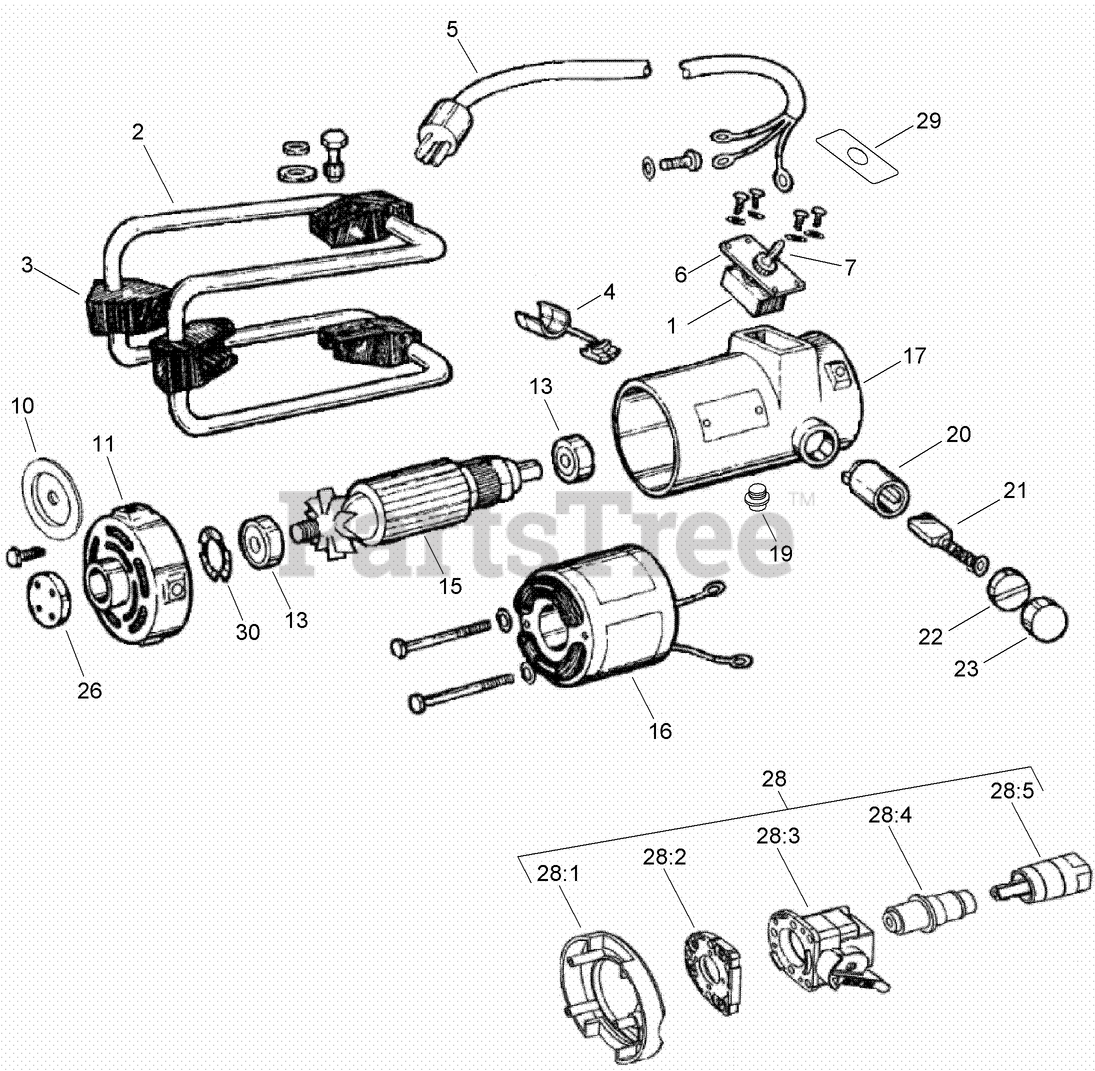

1.0 Vibratory Assembly Parts Diagram

  • Title

1

Toro 127-5499

SEE WWW.ADVANCEDCONCRETESCREEDS.COM

$

$

Not available

2

Toro 127-5500

FRAME ASM

$

$

Not available

3

Toro 127-5501

MOUNT-SHOCK

$

$

Not available

4

Toro 127-5502

STRAIN RELIEF ASM

$

$

Not available

5

Toro 127-5503

CORD ASM

$

$

Not available

6

Toro 127-5504

SWITCH PLATE ASM

$

$

Not available

7

Toro 127-5625

BOOT-RUBBER, SWITCH

$

$

Not available

10

Toro 127-5626

BAFFLE ASM

$

$

Not available

11

Toro 127-5627

BELL-END

$

$

Not available

13

Toro 127-5629

BEARING

$

$

Not available

15

Toro 127-5631

ARMATURE (115V)

$468.99

$

Usually ships in 3-6 days

0

16

Toro 127-5632

FIELD (115V)

$

$

Not available

17

Toro 127-5633

HOUSING

$

$

Not available

19

Toro 127-5634

PLUG-PORT, ACCESS

$

$

Not available

20

Toro 127-5635

HOLDER-BRUSH

$

$

Not available

21

Toro 127-5636

BRUSH

$

$

Not available

22

Toro 127-5637

CAPSCREW

$

$

Not available

23

Toro 127-5638

PROTECTIVE CAP, THREADED

$

$

Not available

26

Toro 127-5641

COVER

$

$

Not available

28

Toro 127-5581

QUICK DISCONNECT KIT

$

$

Not available

28:1

Toro ST63855

BAFFLE-RH

$

$

Not available

28:2

Toro ST64073

SPACER

$

$

Not available

28:3

Toro ST63859

CASING-ADAPTOR

$90.99

$

Usually ships in 3-6 days

0

28:4

Toro ST63860

CORE ADAPTOR ASM

$117.99

$

Usually ships in 3-6 days

0

28:5

Toro ST30428

COUPLER-SHAFT

$30.99

$

Usually ships in 3-6 days

0

29

Toro 125-8195

DECAL-SWITCH PLATE

$

$

Currently unavailable

30

Toro ST35856

RING-TOLERANCE

$6.99

$

Usually ships in 3-6 days

0
