68044 (VIB-3) - Toro Concrete Vibrator (SN: 313000001 - 313999999) (2013) 3.0 Vibratory Assembly Parts Diagram

Concrete Vibrator

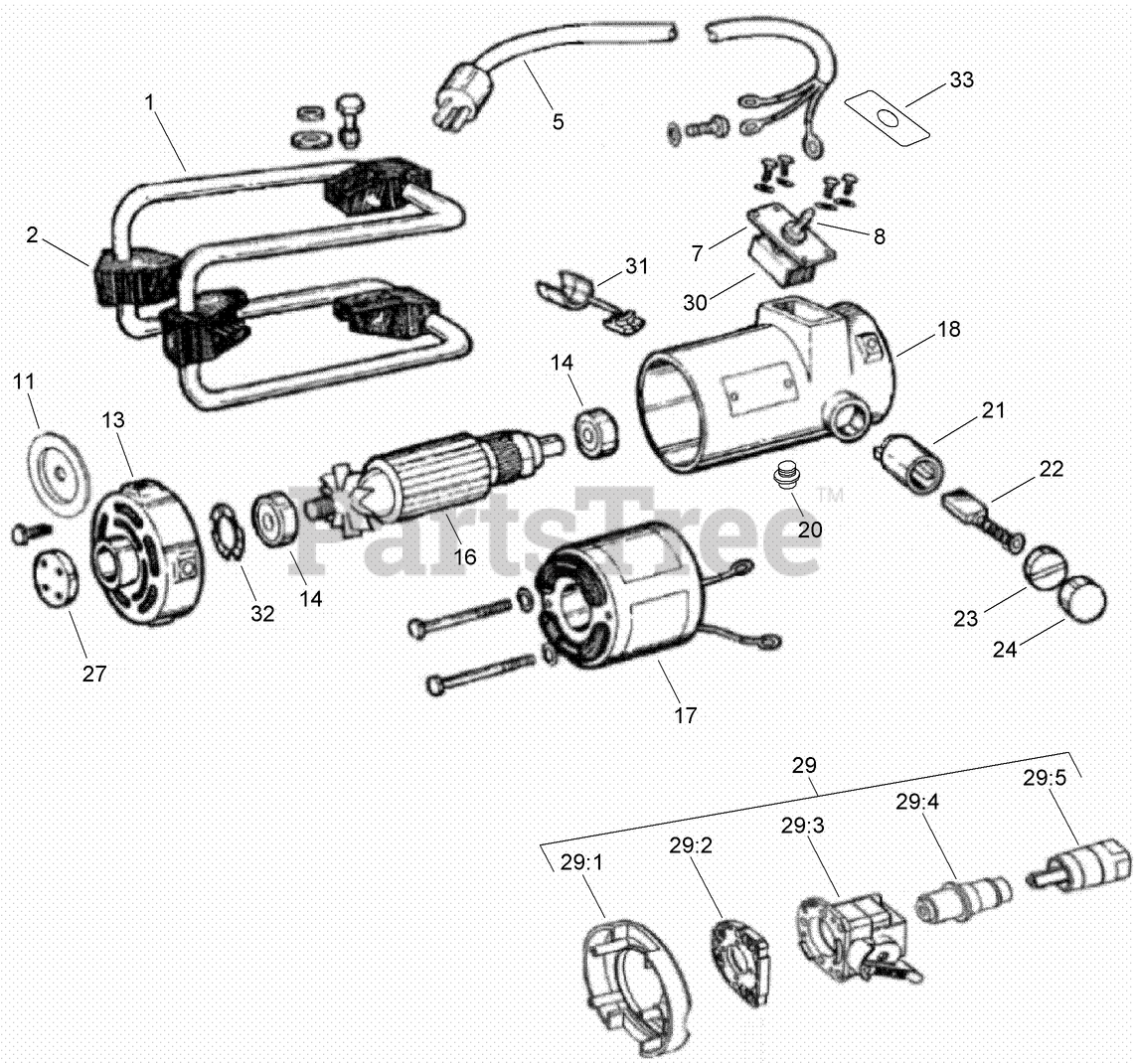

3.0 Vibratory Assembly Parts Diagram

  • Title

1

Toro 127-5689

FRAME ASM

$

$

Currently unavailable

2

Toro 127-5663

MOUNT-SHOCK

$

$

Not available

5

Toro 127-5664

CORD ASM

$

$

Not available

7

Toro 127-5504

SWITCH PLATE ASM

$

$

Not available

8

Toro 127-5625

BOOT-RUBBER, SWITCH

$

$

Not available

11

Toro 127-5691

BAFFLE ASM

$

$

Currently unavailable

13

Toro 127-5692

DISCONTINUED

$

$

Not available

14

Toro 127-5652

BEARING

$100.99

$

Usually ships in 3-6 days

0

16

Toro 127-5693

ARMATURE (115V)

$

$

Not available

17

Toro 127-5694

FIELD (115V)

$

$

Not available

18

Toro 127-5695

HOUSING

$

$

Not available

20

Toro 127-5634

PLUG-PORT, ACCESS

$

$

Not available

21

Toro 127-5696

HOLDER-BRUSH

$

$

Not available

22

Toro 127-5697

BRUSH

$

$

Not available

23

Toro 127-5659

SCREW-CAP

$

$

Not available

24

Toro 127-5660

CAP-THREADED, PROTECTIVE

$

$

Not available

27

Toro 127-5641

COVER

$

$

Not available

29

Toro 127-5584

QUICK DISCONNECT KIT

$

$

Not available

29:1

Toro ST63857

BAFFLE-RH

$

$

Not available

29:2

Toro ST63858

SPACER

$

$

Not available

29:3

Toro ST63859

CASING-ADAPTOR

$90.99

$

Usually ships in 3-6 days

0

29:4

Toro ST63860

CORE ADAPTOR ASM

$117.99

$

Usually ships in 3-6 days

0

29:5

Toro ST30428

COUPLER-SHAFT

$30.99

$

Usually ships in 3-6 days

0

30

Toro 127-5499

SEE WWW.ADVANCEDCONCRETESCREEDS.COM

$

$

Not available

31

Toro 127-5502

STRAIN RELIEF ASM

$

$

Not available

32

Toro ST35856

RING-TOLERANCE

$6.99

$

Usually ships in 3-6 days

0

33

Toro 125-8195

DECAL-SWITCH PLATE

$

$

Currently unavailable
