680503 - Lawn-Boy Walk-Behind Mower (SN: L00000001 - L99999999) (1992) DRIVE MODELS: 680503 Parts Diagram

Walk-Behind Mower

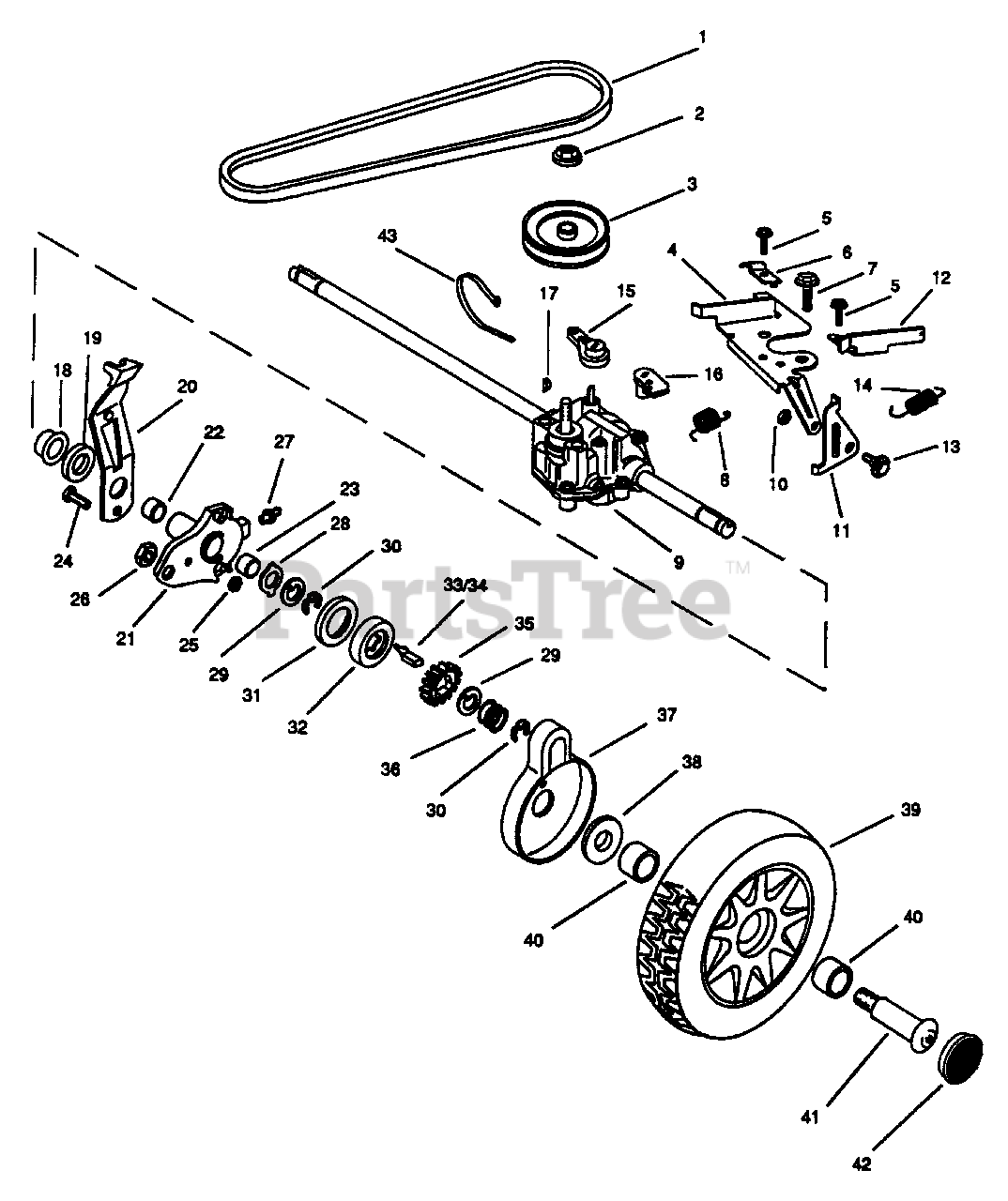

DRIVE MODELS: 680503 Parts Diagram

  • Title

1

Lawn-Boy 613842

V-Belt

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

2

Lawn-Boy 613770

Nut
(Superseded to 95-1579)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

3

Lawn-Boy 613445

Transmission Pulley

Note: Important Note: Replacement parts may not always be available in matching colors.

$130.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 614524

Actuator Plate

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

5

Lawn-Boy 613387

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

6

Lawn-Boy 613385

Clamp

Note: Important Note: Replacement parts may not always be available in matching colors.

$5.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 146134

Screw-Plate to Transmission

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

8

Lawn-Boy 614525

Spring

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

9

Lawn-Boy 684617

Transmission

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

10

Lawn-Boy 603773

Nut

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 20+

0

11

Lawn-Boy 614523

Arm-Transmission Engagement

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

12

Lawn-Boy 614526

Guide-Belt

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

13

Lawn-Boy 614527

Shoulder Bolt

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

14

Lawn-Boy 614529

Spring-Extension

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

15

Lawn-Boy 614316

Arm-Shift

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

16

Lawn-Boy 614317

Arm-Clutch

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

17

Lawn-Boy 611840

Key

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

18

Lawn-Boy 614443

Isolator Ring

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

19

Lawn-Boy 614447

Spacer

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.99

$

In Stock, Qty 17

0

20

Lawn-Boy 684618

Knob & Spring Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

21

Lawn-Boy 684616

Pivot Arm Assembly (Inc. 22-23)
(Superseded to 92-7746)

Note: Important Note: Replacement parts may not always be available in matching colors.

$54.99

$

In Stock, only 2 left!

0

22

Lawn-Boy 614439

Bushing
(Superseded to 70-9760)

Note: Important Note: Replacement parts may not always be available in matching colors.

$5.49

$

In Stock, Qty 20+

0

23

Lawn-Boy 614440

Bushing
(Superseded to 47-2900)

Note: Important Note: Replacement parts may not always be available in matching colors.

$6.99

$

In Stock, Qty 17

0

24

Lawn-Boy 602480

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

25

Lawn-Boy 602315

Locknut

Note: Important Note: Replacement parts may not always be available in matching colors.

$5.49

$

Usually ships in 3-6 days

0

26

Lawn-Boy 610358

Nut

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, Qty 15

0

27

Lawn-Boy 614442

Grease Fitting

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

28

Lawn-Boy 614435

Washer-Inner Thrust
(Superseded to 65-4730)

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, Qty 20+

0

29

Lawn-Boy 614436

Washer-Keyed
(Superseded to 65-4740)

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, Qty 20+

0

30

Lawn-Boy 614444

Ring-Retaining
(Superseded to 65-2720)

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 20+

0

31

Lawn-Boy 614448

Ring-Friction
(Superseded to 65-4710)

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.99

$

In Stock, Qty 20+

0

32

Lawn-Boy 614437

Washer-Clutch
(Superseded to 65-4760)

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, Qty 20+

0

33

Lawn-Boy 614445

Key, Rocking-R.H. (Not Shown)
(Superseded to 66-6040)

Note: Important Note: Replacement parts may not always be available in matching colors.

$8.49

$

In Stock, Qty 11

0

34

Lawn-Boy 614446

Key, Rocking-L.H.
(Superseded to 66-6050)

Note: Important Note: Replacement parts may not always be available in matching colors.

$8.49

$

In Stock, Qty 20+

0

35

Lawn-Boy 614438

Gear-Pinion 15T
(Superseded to 65-4750)

Note: Important Note: Replacement parts may not always be available in matching colors.

$12.99

$

In Stock, Qty 20+

0

36

Lawn-Boy 614449

Spring-Compression
(Superseded to 65-4720)

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 20+

0

37

Lawn-Boy 614427

Cover-Wheel
(Superseded to 94-1609)

Note: Important Note: Replacement parts may not always be available in matching colors.

$11.99

$

In Stock, Qty 11

0

38

Lawn-Boy 614426

Washer-Stepped

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, Qty 20+

0

39

Lawn-Boy 684646

Wheel Assembly (Inc. 40)
(Superseded to 92-1042)

Note: Important Note: Replacement parts may not always be available in matching colors.

$58.99

$

In Stock, Qty 20+

0

40

Lawn-Boy 27-6250

Bushing

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 20+

0

41

Lawn-Boy 614430

Wheel Bolt

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

42

Lawn-Boy 614428

Cap-Hub

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, only 4 left!

0

43

Lawn-Boy 613911

Tie Strap

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available
