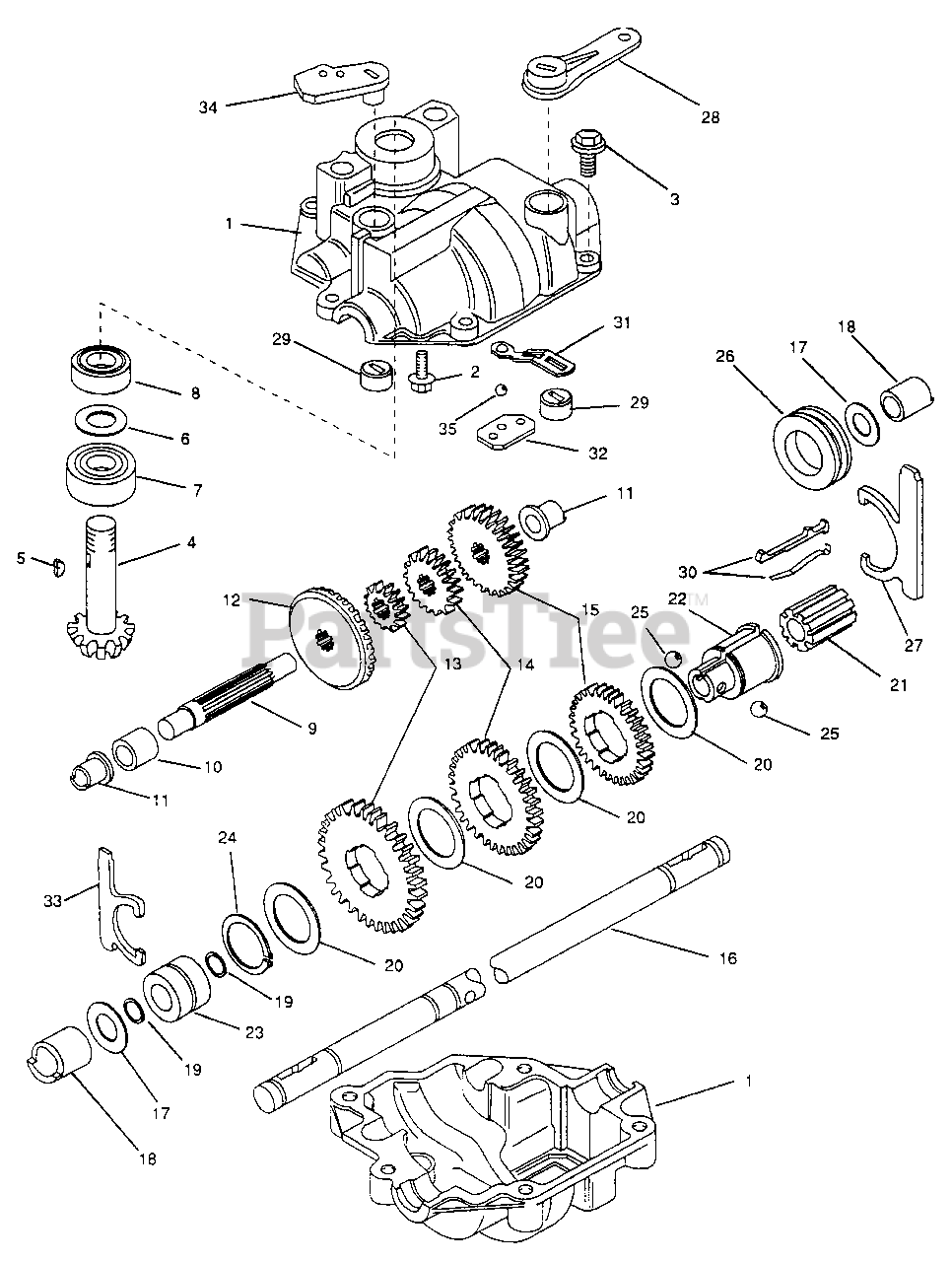

680563 - Lawn-Boy Walk-Behind Mower (SN: L00000001 - L99999999) (1992) TRANSMISSION MODELS: 680563à Parts Diagram

Walk-Behind Mower

TRANSMISSION MODELS: 680563à Parts Diagram

  • Title

1

Lawn-Boy 684731

Upper & Lower Case Kit (Inc. Sealant)

$

$

Not available

2

Lawn-Boy 614625

Tapping Screw

$

$

Not available

3

Lawn-Boy 614626

Tapping Screw

$

$

Not available

4

Lawn-Boy 614600

Shaft-Input

$

$

Not available

5

Lawn-Boy 611840

Woodruff Key

$

$

Not available

6

Lawn-Boy 614601

Washer

$

$

Not available

7

Lawn-Boy 614602

Bearing-Lower

$

$

Not available

8

Lawn-Boy 614603

Bearing-Upper

$

$

Not available

9

Lawn-Boy 684736

Shaft, Reduction Kit (Inc. 10-11)

$

$

Not available

10

Lawn-Boy 614606

Collar

$29.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 684732

Bushing Set

$

$

Not available

12

Lawn-Boy 614604

Ring Gear

$

$

Not available

13

Lawn-Boy 684733

Gear Set

$

$

Not available

14

Lawn-Boy 684734

Gear Set

$

$

Not available

15

Lawn-Boy 684735

Gear Set

$

$

Not available

16

Lawn-Boy 684740

Axle Shaft Kit (Inc. 17-19)

$

$

Not available

17

Lawn-Boy 614611

Washer

$

$

Not available

18

Lawn-Boy 684737

Bushing Set

$

$

Not available

19

Lawn-Boy 614613

Snap Ring

$

$

Not available

20

Lawn-Boy 614607

Washer

$

$

Not available

21

Lawn-Boy 614608

Holder, Key

$

$

Not available

22

Lawn-Boy 614609

Collar, Shift

$

$

Not available

23

Lawn-Boy 614610

Slider

$

$

Not available

24

Lawn-Boy 614614

Snap Ring

$

$

Not available

25

Lawn-Boy 614615

Ball
(Superseded to 92-0784)

$1.99

$

Usually ships in 3-6 days

0

26

Lawn-Boy 614616

Collar, Sliding

$106.99

$

Usually ships in 3-6 days

0

27

Lawn-Boy 614617

Fork, Shift

$

$

Not available

28

Lawn-Boy 614316

Arm, Shift

$

$

Not available

29

Lawn-Boy 614618

Support, Fork

$

$

Not available

30

Lawn-Boy 684739

Spring & Key, Shift

$

$

Not available

31

Lawn-Boy 614619

Spring

$

$

Not available

32

Lawn-Boy 614620

Plate

$

$

Not available

33

Lawn-Boy 614621

Fork, Clutch

$

$

Not available

34

Lawn-Boy 614317

Arm, Clutch

$

$

Not available

35

Lawn-Boy 614622

Ball

$

$

Not available
