68071 (RP-500) - Toro Reversible Plate Compactor (SN: 313000001 - 313999999) (2013) Vibratory Assembly No. 127-5052 Parts Diagram

Reversible Plate Compactor

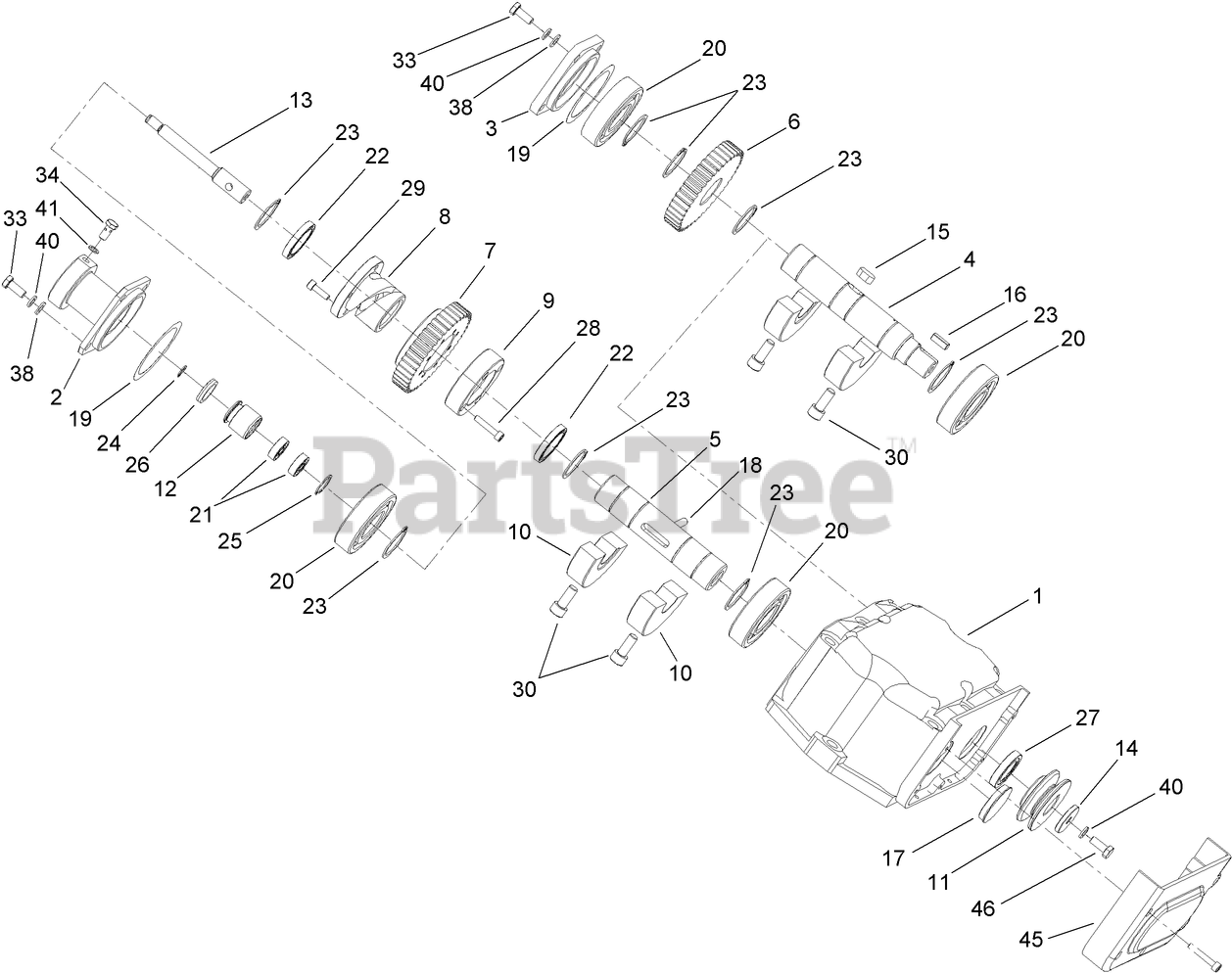

Vibratory Assembly No. 127-5052 Parts Diagram

  • Title

1

Toro 127-5153

GEARBOX

$

$

Currently unavailable

2

Toro 127-5154

CYLINDER

$

$

Not available

3

Toro 127-5155

COVER

$

$

Not available

4

Toro 127-5156

SHAFT-INPUT

$

$

Not available

5

Toro 127-5157

SHAFT

$

$

Not available

6

Toro 127-5158

GEAR

$

$

Not available

7

Toro 127-5159

GEAR

$

$

Not available

8

Toro 127-5160

BUSHING

$

$

Not available

9

Toro 127-5161

RING-CLAMP

$

$

Not available

10

Toro 127-5162

WEIGHT

$

$

Not available

11

Toro 127-5163

PULLEY

$

$

Not available

12

Toro 127-5164

PISTION

$

$

Not available

13

Toro 127-5165

PUSHROD

$

$

Not available

14

Toro 127-5166

WASHER-PULLEY

$

$

Not available

15

Toro 127-5167

KEY

$

$

Not available

16

Toro 127-5168

KEY

$

$

Not available

17

Toro 127-5169

PLUG

$

$

Not available

18

Toro 127-5170

BEARING-NEEDLE

$

$

Not available

19

Toro 127-5171

O-RING

$

$

Not available

20

Toro 127-5172

BEARING

$207.99

$

Usually ships in 3-6 days

0

21

Toro 127-5173

BEARING

$

$

Not available

22

Toro 127-5174

BEARING

$

$

Not available

23

Toro 127-5175

RING-LOCKING

$2.49

$

Usually ships in 3-6 days

0

24

Toro 127-5176

RING-LOCKING

$

$

Not available

25

Toro 127-5177

RING-LOCKING

$

$

Not available

26

Toro 127-5142

PACKING

$17.99

$

Usually ships in 3-6 days

0

27

Toro 127-5178

RING-PACKING

$120.99

$

Usually ships in 3-6 days

0

28

Toro 127-5179

BOLT

$

$

Not available

29

Toro 127-5098

BOLT

$

$

Not available

30

Toro 127-5180

BOLT

$

$

Not available

33

Toro 127-5099

BOLT

$

$

Not available

34

Toro 127-5181

BOLT

$

$

Not available

38

Toro 127-5104

WASHER

$

$

Not available

40

Toro 127-5182

WASHER

$

$

Not available

41

Toro 127-5624

RING-PACKING

$

$

Not available

45

Toro 127-5183

COVER

$

$

Not available

46

Toro 127-5184

BOLT

$

$

Not available
