68072 (RP-700) - Toro Reversible Plate Compactor (SN: 313000001 - 313999999) (2013) Control and Handle Assembly Parts Diagram

Reversible Plate Compactor

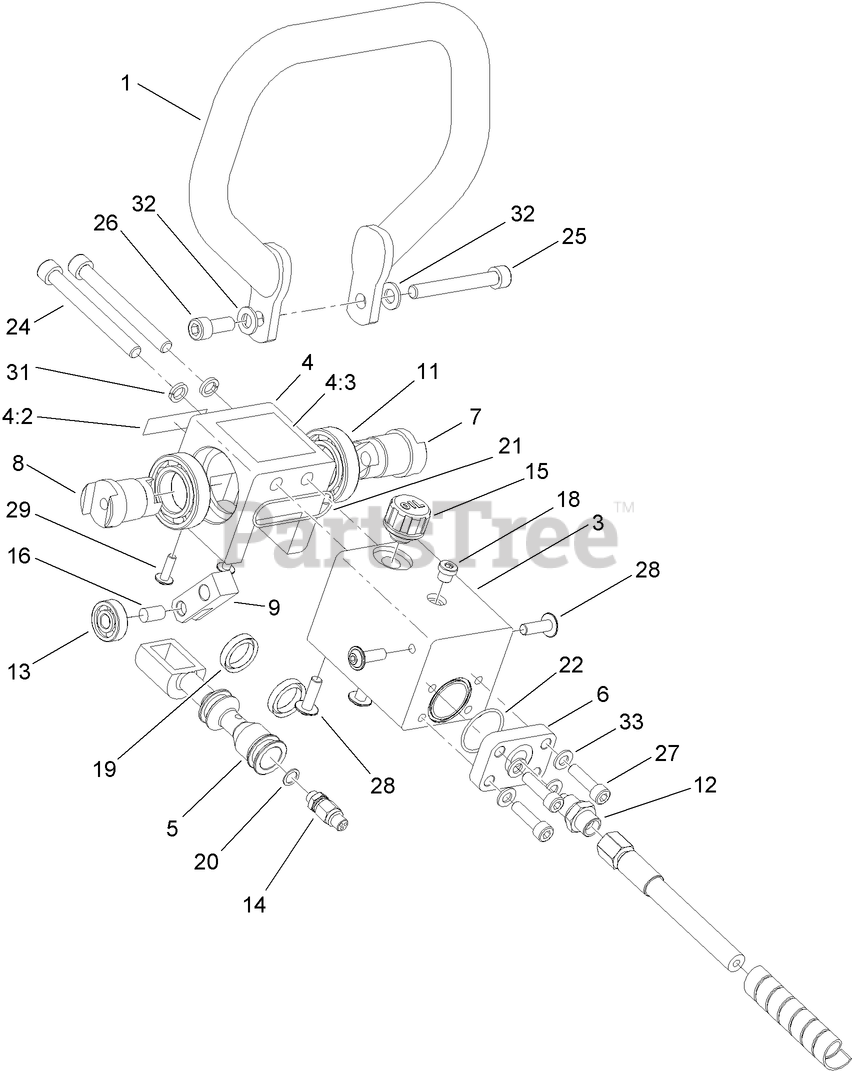

Control and Handle Assembly Parts Diagram

  • Title

1

Toro 127-5128

HANDLE-CONTROL, TRAVEL

$

$

Not available

3

Toro 127-5129

MANIFOLD-VALVE

$

$

Not available

4

Toro 127-5051

MANIFOLD-VALVE, UPPER

$

$

Not available

4:2

Toro 125-8206

DECAL-CAUTION

$

$

Not available

4:3

Toro 125-8205

DECAL-OPERATION

$

$

Not available

5

Toro 127-5130

SPOOL-VALVE

$

$

Not available

6

Toro 127-5131

COVER-END

$

$

Not available

7

Toro 127-5132

PIVOT-LEFT

$

$

Not available

8

Toro 127-5133

PIVOT-RIGHT

$

$

Not available

9

Toro 127-5134

ARM-PIVOT

$

$

Not available

11

Toro 127-5135

BEARING

$20.99

$

Usually ships in 3-6 days

0

12

Toro 127-5136

SOCKET

$

$

Not available

13

Toro 127-5137

See Supercession: 132-7174
(Superseded to 132-7174)

$17.99

$

Usually ships in 3-6 days

0

14

Toro 127-5138

VALVE-CHECK

$244.99

$

Usually ships in 3-6 days

0

15

Toro 127-5139

PLUG

$

$

Not available

16

Toro 127-5140

PIN

$2.49

$

Usually ships in 3-6 days

0

18

Toro 127-5141

PLUG

$

$

Not available

19

Toro 127-5142

PACKING

$17.99

$

Usually ships in 3-6 days

0

20

Toro 127-5143

RING-ALUMINUM

$

$

Not available

21

Toro 127-5144

O-RING

$

$

Not available

22

Toro 127-5145

O-RING

$

$

Not available

24

Toro 127-5146

BOLT

$

$

Not available

25

Toro 127-5147

BOLT

$

$

Not available

26

Toro 127-5109

BOLT

$

$

Not available

27

Toro 127-5148

BOLT

$

$

Not available

28

Toro 127-5149

BOLT

$

$

Not available

29

Toro 127-5150

BOLT

$

$

Not available

31

Toro 127-5151

WASHER

$

$

Not available

32

Toro 127-5084

WASHER

$

$

Not available

33

Toro 127-5104

WASHER

$

$

Not available
