68074 (RP-1200 D) - Toro Reversible Plate Compactor (SN: 313000001 - 313999999) (2013) Frame and Cover Assembly Parts Diagram

Reversible Plate Compactor

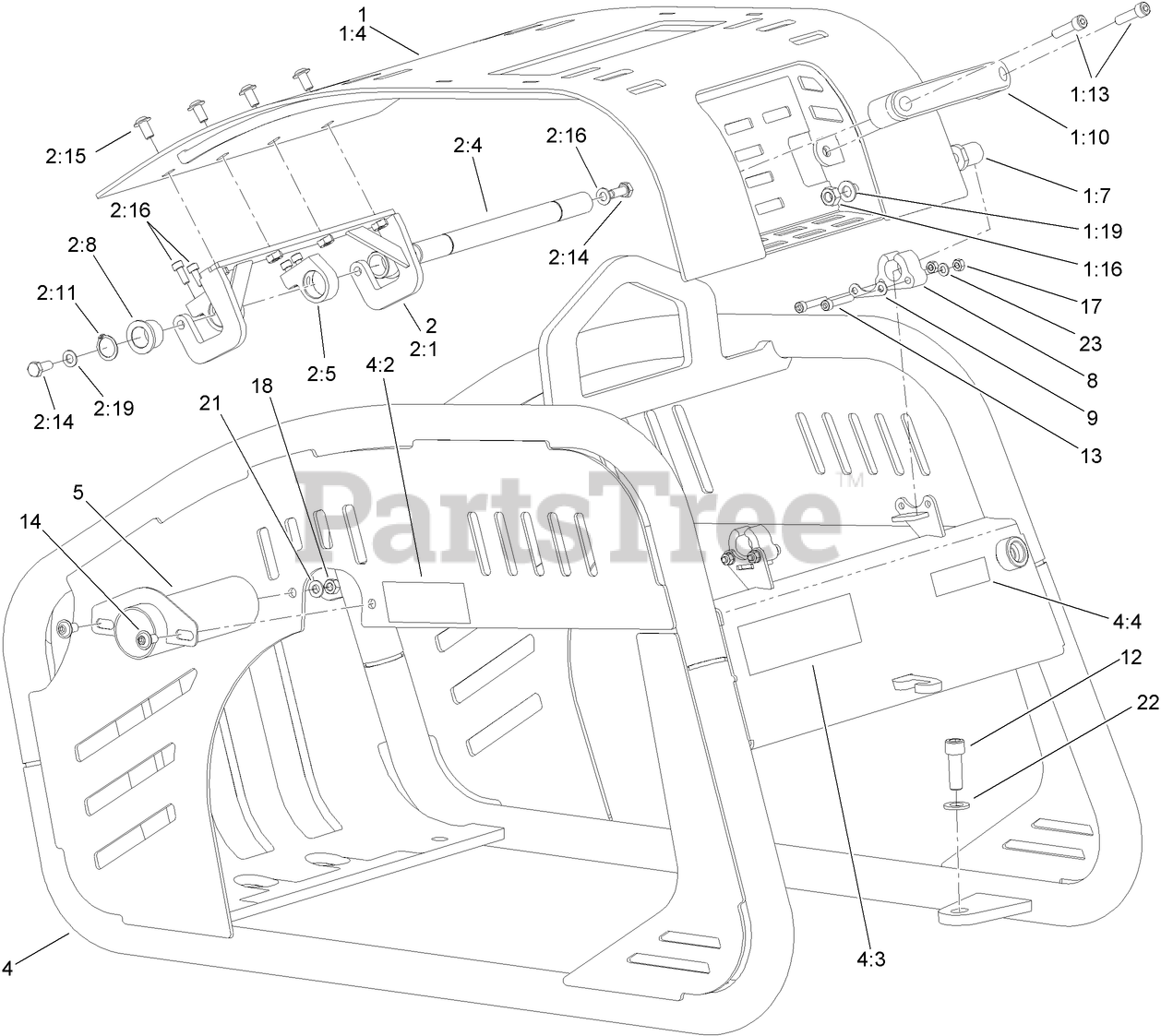

Frame and Cover Assembly Parts Diagram

  • Title

1

Toro 127-5066

TOP COVER ASM

$

$

Not available

1:4

Toro 127-5452

COVER

$897.99

$

Usually ships in 3-6 days

0

1:7

Toro 127-5421

PIN-HANDLE

$

$

Not available

1:10

Toro 127-5422

HANDLE

$

$

Not available

1:13

Toro 127-5148

BOLT

$

$

Not available

1:16

Toro 33025-00

NUT-LOCK, NI

$1.49

$

In Stock, only 1 left!

0

1:19

Toro 127-5084

WASHER

$

$

Not available

2

Toro 127-5067

SHAFT AND FRONT BRACKET ASM

$

$

Not available

2:1

Toro 127-5423

BRACKET-FRONT

$

$

Not available

2:4

Toro 127-5424

SHAFT

$

$

Not available

2:5

Toro 127-5453

EYE-FRONT

$

$

Not available

2:8

Toro 127-5426

BUSHING

$

$

Not available

2:11

Toro 127-5427

RING-SEALING

$

$

Not available

2:14

Toro 127-5184

BOLT

$

$

Not available

2:15

Toro 127-5149

BOLT

$

$

Not available

2:16

Toro 127-5454

BOLT

$

$

Currently unavailable

2:19

Toro 127-5104

WASHER

$

$

Not available

4

Toro 127-5065

FRAME ASM

$

$

Not available

4:2

Toro 125-4963

DECAL-SURFACE, HOT

$6.99

$

Usually ships in 3-6 days

0

4:3

Toro 125-4943

DECAL-WARNING, PLATE

$3.99

$

Usually ships in 3-6 days

0

4:4

Toro 117-2718

DECAL-ARRESTER, SPARK

$7.99

$

Usually ships in 3-6 days

0

5

Toro 127-5441

EXHAUST

$73.99

$

Usually ships in 3-6 days

0

8

Toro 127-5357

SECURING-COVER

$150.99

$

Usually ships in 3-6 days

0

9

Toro 127-5358

WASHER-SECURING

$

$

Not available

12

Toro 127-5359

BOLT

$

$

Not available

13

Toro 127-5081

BOLT

$

$

Not available

14

Toro 127-5149

BOLT

$

$

Not available

17

Toro 127-5360

NUT

$

$

Currently unavailable

18

Toro 127-5466

NUT

$

$

Not available

21

Toro 127-5104

WASHER

$

$

Not available

22

Toro 127-5083

WASHER

$

$

Not available

23

Toro 127-5105

WASHER

$

$

Currently unavailable
