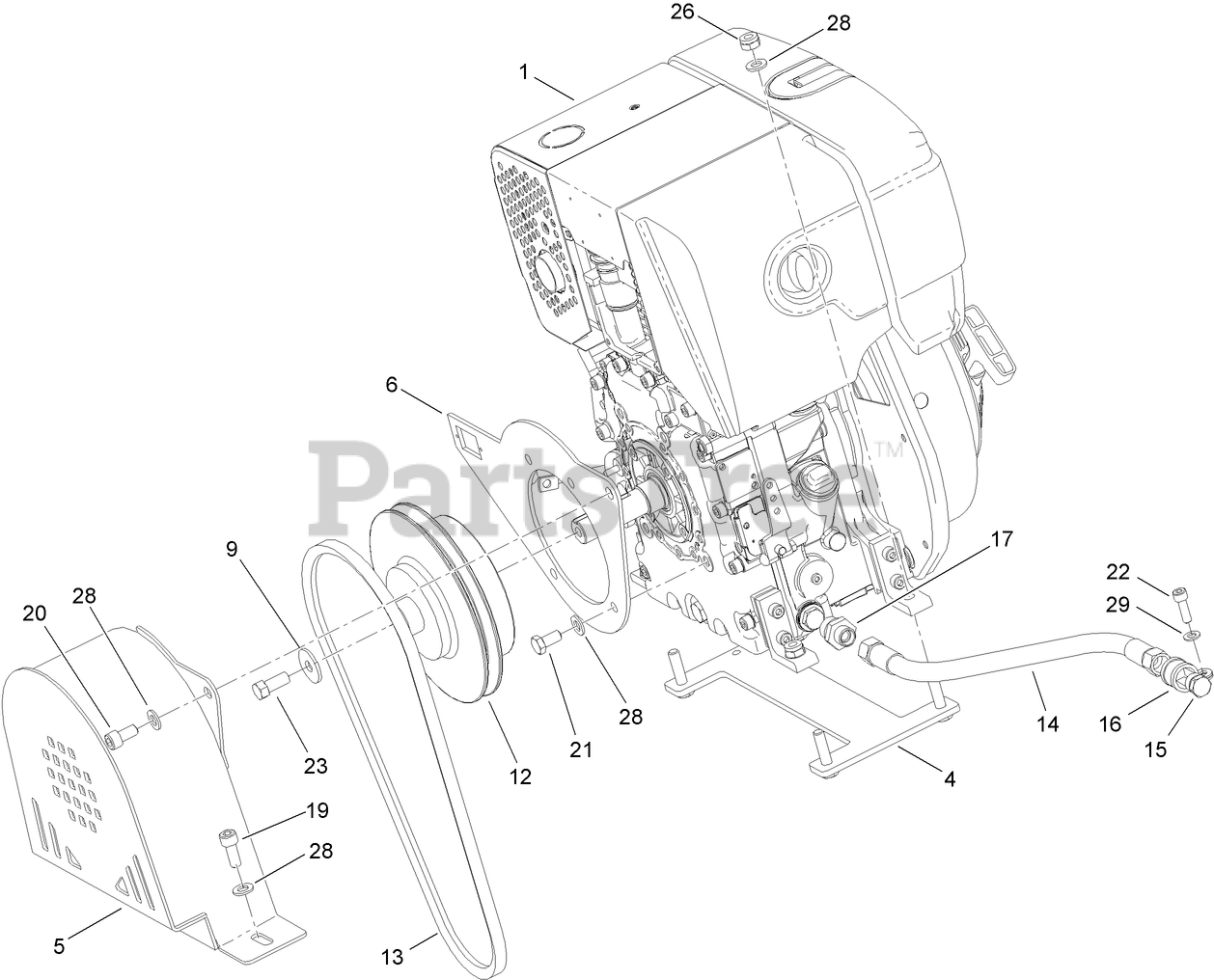

68075 (RP-1400 D) - Toro Reversible Plate Compactor (SN: 313000001 - 313999999) (2013) Engine Assembly Parts Diagram

Reversible Plate Compactor

Engine Assembly Parts Diagram

  • Title

1

Toro 127-5457

ENGINE ASM

$

$

Currently unavailable

4

Toro 127-5458

CONTROL-ENGINE

$

$

Not available

5

Toro 127-5459

COVER-PULLEY

$396.99

$

Usually ships in 3-6 days

0

6

Toro 127-5460

HOLDER-COVER

$

$

Not available

9

Toro 127-5433

WASHER

$

$

Not available

12

Toro 127-5461

COUPLING

$3350.99

$

Usually ships in 3-6 days

0

13

Toro 127-5462

V-BELT

$

$

Not available

14

Toro 127-5436

HOSE

$

$

Not available

15

Toro 127-5437

PLUG

$

$

Not available

16

Toro 127-5438

CLIP-HOSE

$

$

Not available

17

Toro 127-5353

SOCKET-STRAIGHT

$

$

Not available

19

Toro 127-5180

BOLT

$

$

Not available

20

Toro 127-5101

BOLT

$

$

Not available

21

Toro 33115-020

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

22

Toro 127-5439

BOLT

$

$

Not available

23

Toro 127-5463

BOLT

$

$

Not available

26

Toro 127-5355

NUT

$

$

Not available

28

Toro 127-5084

WASHER

$

$

Not available

29

Toro 127-5104

WASHER

$

$

Not available
