68138 (MB TX 2500) - Toro Mud Buggy (SN: 408000000 - 410399999) Track Assembly Parts Diagram

Mud Buggy

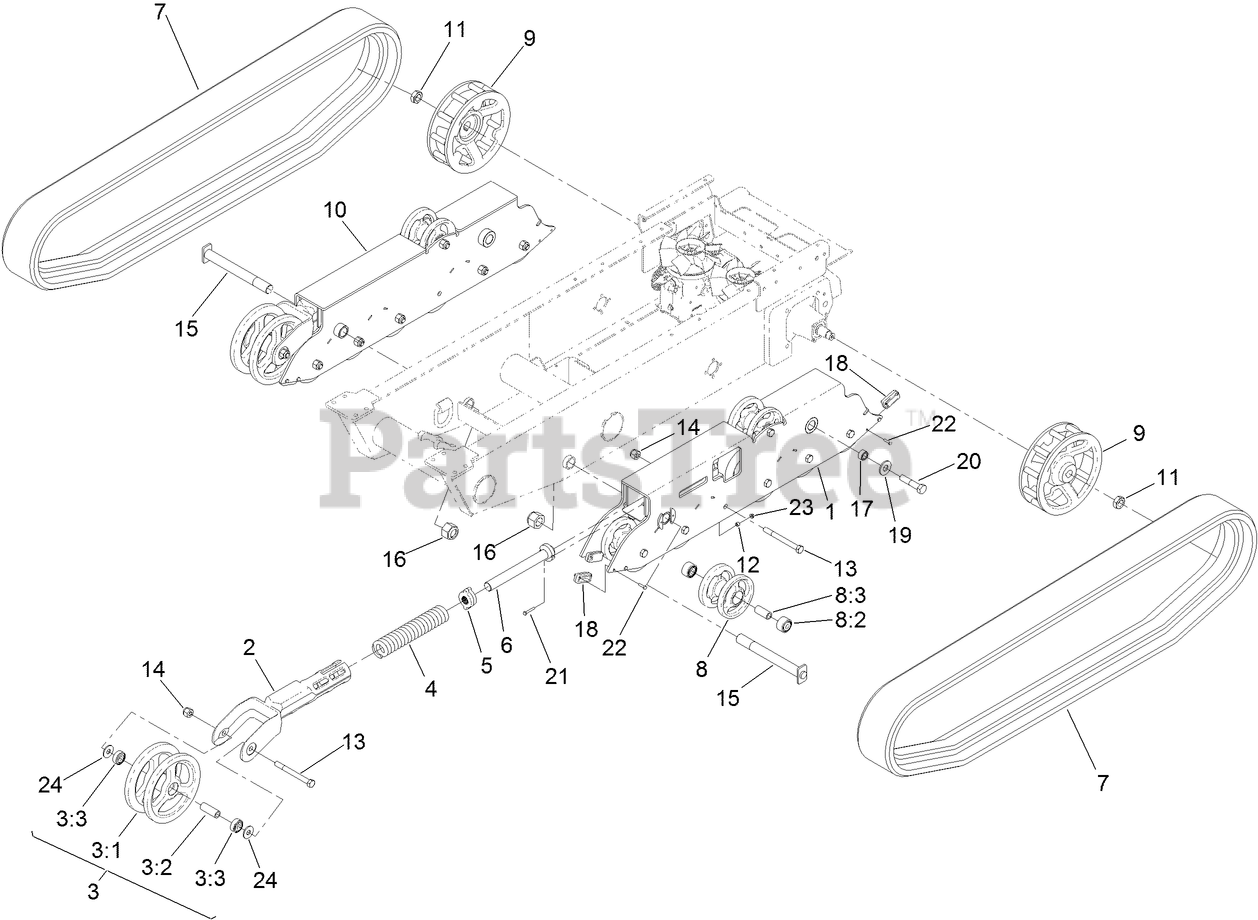

Track Assembly Parts Diagram

  • Title

1

Toro 132-8813-03

MOUNT-WHEEL, LH
(Superseded to 132-8813-05)

$1419.99

$

Usually ships in 3-6 days

0

2

Toro 108-4691-03

ARM-TENSIONER
(Superseded to 108-4691-05)

$252.99

$

In Stock, only 1 left!

0

3

Toro 104-5745

TENSIONER WHEEL ASM

$825.99

$

Usually ships in 3-6 days

0

3:1

Toro 104-5747-03

WHEEL-TENSIONER
(Superseded to 104-5745)

$825.99

$

Usually ships in 3-6 days

0

3:2

Toro 98-9835

SPACER-WHEEL, TENSIONER

$19.99

$

In Stock, only 2 left!

0

3:3

Toro 120-5378

BEARING-BALL

$18.99

$

In Stock, Qty 20+

0

4

Toro 95-3624

SPRING-COMPRESSION

$209.99

$

In Stock, only 1 left!

0

5

Toro 108-4664

BLOCK-TENSIONER

$149.99

$

Usually ships in 3-6 days

0

6

Toro 127-9563

BOLT-TENSIONER

$285.99

$

Usually ships in 3-6 days

0

7

Toro 137-8712

TRACK

$1515.99

$

Usually ships in 3-6 days

0

8

Toro 138-5231

WHEEL ASM

$389.99

$

Usually ships in 3-6 days

0

8:2

Toro 138-0547

BEARING-BALL

$20.99

$

In Stock, only 4 left!

0

8:3

Toro 130-7564

SPACER-WHEEL

$17.99

$

In Stock, only 2 left!

0

9

Toro 132-8893-03

WHEEL-DRIVE
(Superseded to 132-8893-05)

$386.99

$

Usually ships in 3-6 days

0

10

Toro 132-8814-03

MOUNT-WHEEL, RH
(Superseded to 132-8814-05)

$1589.99

$

Usually ships in 3-6 days

0

11

Toro 26-3790

NUT-LOCK

$32.99

$

Usually ships in 3-6 days

0

12

Toro 98-4799

SPACER

$8.99

$

In Stock, Qty 13

0

13

Toro 327-17

SCREW-HH

$13.99

$

In Stock, Qty 11

0

14

Toro 3296-24

NUT-HEX

$5.49

$

In Stock, Qty 20+

0

15

Toro 130-1050

PIN-TRACK

$100.99

$

Usually ships in 3-6 days

0

16

Toro 125-0399

NUT-HH

$23.99

$

Usually ships in 3-6 days

0

17

Toro 132-8944

SPACER-TRACK, OUTSIDE MOUNT

$15.99

$

Usually ships in 3-6 days

0

18

Toro 132-6053

BLOCK-TRACK

$46.99

$

In Stock, only 1 left!

0

19

Toro 99-2659

WASHER

$12.99

$

Usually ships in 3-6 days

0

20

Toro 328-5

SCREW-HH

$4.99

$

Usually ships in 3-6 days

0

21

Toro 321-37

SCREW-HH

$12.99

$

In Stock, only 2 left!

0

22

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 5

0

23

Toro 32128-32

NUT-HHF

$3.49

$

In Stock, Qty 20+

0

24

Toro 3256-7

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0
