68141 (MB TX 2500 S) - Toro Mud Buggy (SN: 411796997 - 412337922) Engine Assembly Parts Diagram

Mud Buggy

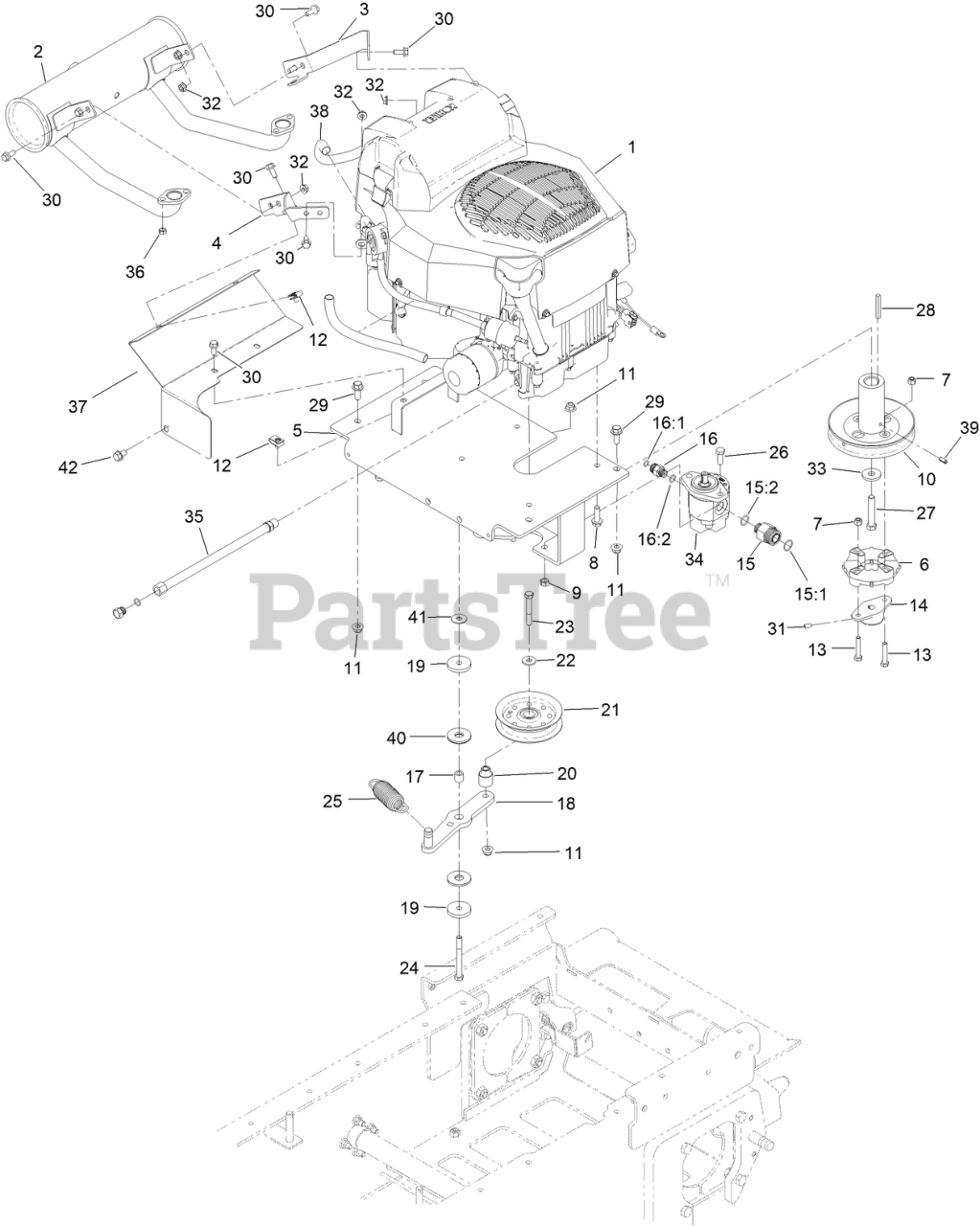

Engine Assembly Parts Diagram

  • Title

1

Toro 139-7245

ENGINE-KOHLER, ZT740 [SERVICE]

$4566.99

$

Usually ships in 3-6 days

0

2

Toro 132-8995

MUFFLER-KOHLER

$244.99

$

Usually ships in 3-6 days

0

3

Toro 132-8916-03

BRACKET-MUFFLER
(Superseded to 132-8916-05)

$26.99

$

Usually ships in 3-6 days

0

4

Toro 132-8917-03

BRACKET-MUFFLER
(Superseded to 132-8917-05)

$26.99

$

Usually ships in 3-6 days

0

5

Toro 132-8907-03

PLATE-ENGINE

$

$

Not available

6

Toro 119-0652

COUPLER-RUBBER

$115.99

$

Usually ships in 3-6 days

0

7

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

8

Toro 32144-109

SCREW-THD

$5.49

$

In Stock, Qty 20+

0

9

Toro 125-5069

NUT-HEX
(Superseded to 603773)

$2.99

$

In Stock, Qty 20+

0

10

Toro 132-8938

PULLEY-ENGINE

$157.99

$

Usually ships in 3-6 days

0

11

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

12

Toro 115-7721

NUT-CLIP, U

$2.49

$

Usually ships in 3-6 days

0

13

Toro 322-9

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

14

Toro 132-9033

HUB-PUMP

$118.99

$

Usually ships in 3-6 days

0

15

Toro 98-9921

FITTING-STRAIGHT

$57.99

$

Usually ships in 3-6 days

0

15:1

Toro 237-145

See Supercession: 237-58
(Superseded to 237-58)

$2.99

$

Usually ships in 3-6 days

0

15:2

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

16

Toro 340-2

FITTING-STRAIGHT

$13.99

$

In Stock, only 2 left!

0

16:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 16

0

16:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

17

Toro 75-5270

SPACER-KNOB, SEAT

$5.49

$

In Stock, only 1 left!

0

18

Toro 132-9086-03

ARM-IDLER
(Superseded to 132-9086-05)

$39.99

$

Usually ships in 3-6 days

0

19

Toro 110-9981

WASHER-PLAIN

$16.99

$

In Stock, Qty 20+

0

20

Toro 132-9080

BUSHING-IDLER

$16.99

$

In Stock, only 2 left!

0

21

Toro 116-3626

See Supercession: 132-4718
(Superseded to 132-4718)

$36.99

$

In Stock, Qty 20+

0

22

Toro 80-6990

WASHER-HARDENED

$6.49

$

In Stock, Qty 20+

0

23

Toro 323-12

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

24

Toro 323-15

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

25

Toro 138-7110

SPRING-EXTENSION

$18.99

$

Usually ships in 3-6 days

0

26

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

27

Toro 3212-10

SCREW-HH

$6.99

$

In Stock, Qty 11

0

28

Toro 103-4177

KEY

$5.99

$

In Stock, only 2 left!

0

29

Toro 3234-42

SCREW-HHF

$3.99

$

In Stock, Qty 20+

0

30

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

31

Toro 3245-9

SCREW-SET, HSH

$0.99

$

In Stock, Qty 13

0

32

Toro 32128-26

NUT-FLANGE

$6.99

$

Usually ships in 3-6 days

0

33

Toro 110-6147

WASHER-FLAT

$7.49

$

Usually ships in 3-6 days

0

34

Toro 139-7183

PUMP-GEAR

$822.99

$

Usually ships in 3-6 days

0

35

Toro 117-1261

HOSE-DRAIN, OIL

$34.99

$

In Stock, Qty 15

0

36

Toro 114-3549

NUT

$2.49

$

In Stock, Qty 20+

0

37

Toro 139-7232-03

SHIELD-MUFFLER
(Superseded to 139-7232-05)

$65.99

$

Usually ships in 3-6 days

0

38

Toro 136-4617

SLEEVE-THERMAL

$10.99

$

In Stock, only 1 left!

0

39

Toro 32121-134

PIN-ROLL

$0.99

$

Usually ships in 3-6 days

0

40

Toro 114-0463

WASHER-FRICTION, COMPOSITE

$5.99

$

In Stock, Qty 20+

0

41

Toro 119-4150

WASHER-FLAT

$0.99

$

In Stock, Qty 19

0

42

Toro 32144-15

SCREW-HHFTF

$9.49

$

Usually ships in 3-6 days

0
