683614 - Lawn-Boy F Engine (SN: 700000001 - 799999999) (1987) Handle And Grass Catcher Group Model: 8461 Parts Diagram

F Engine

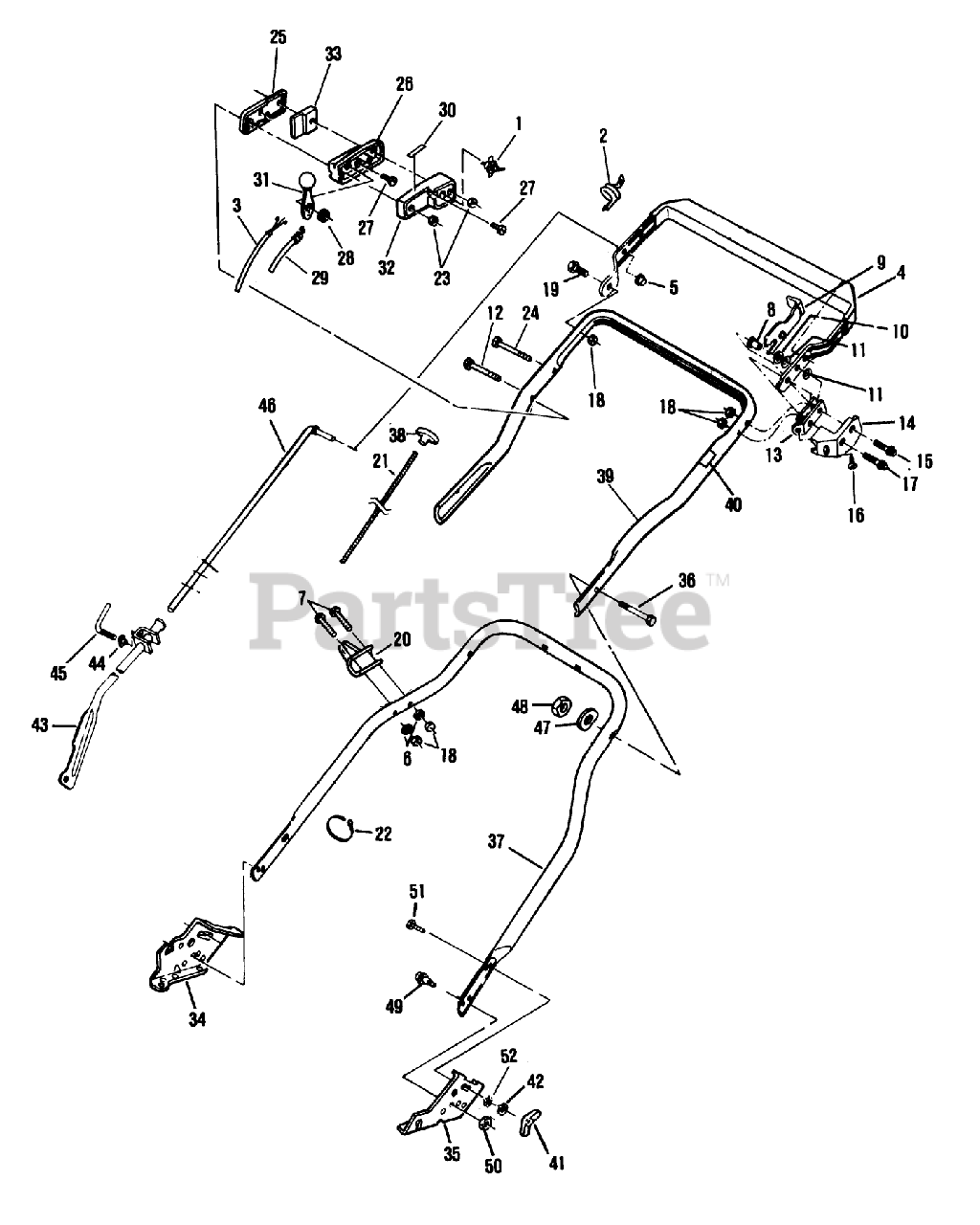

Handle And Grass Catcher Group Model: 8461 Parts Diagram

  • Title

1

Lawn-Boy 683847

DISCONTINUED

Note: Important Note: Replacement parts may not always be available in matching color.

$

$

Not available

2

Lawn-Boy 612867

DISCONTINUED

Note: Important Note: Replacement parts may not always be available in matching color.

$

$

Not available

3

Lawn-Boy 683758

DISCONTINUED

Note: Important Note: Replacement parts may not always be available in matching color.

$

$

Not available

4

Lawn-Boy 683811

DISCONTINUED

Note: Important Note: Replacement parts may not always be available in matching color.

$

$

Not available

5

Lawn-Boy 605546

See Supercession: 32112-11
(Superseded to 32112-11)

Note: Important Note: Replacement parts may not always be available in matching color.

$1.49

$

In Stock, only 4 left!

0

6

Lawn-Boy 602945

WASHER

Note: Important Note: Replacement parts may not always be available in matching color.

$

$

Not available

7

Lawn-Boy 611233

DISCONTINUED

Note: Important Note: Replacement parts may not always be available in matching color.

$

$

Not available

8

Lawn-Boy 611203

SPACER

Note: Important Note: Replacement parts may not always be available in matching color.

$

$

Not available

9

Lawn-Boy 612657

DISCONTINUED

Note: Important Note: Replacement parts may not always be available in matching color.

$

$

Not available

10

Lawn-Boy 306359

WASHER M

Note: Important Note: Replacement parts may not always be available in matching color.

$

$

Not available

11

Lawn-Boy 303254

See Supercession: 121-4605
(Superseded to 121-4605)

Note: Important Note: Replacement parts may not always be available in matching color.

$4.99

$

In Stock, only 1 left!

0

12

Lawn-Boy 611799

SCREW

Note: Important Note: Replacement parts may not always be available in matching color.

$

$

Not available

13

Lawn-Boy 611221

DOWN STOP

Note: Important Note: Replacement parts may not always be available in matching color.

$

$

Not available

14

Lawn-Boy 612639

DISCONTINUED

Note: Important Note: Replacement parts may not always be available in matching color.

$

$

Not available

15

Lawn-Boy 611220

BOLT SHOU

Note: Important Note: Replacement parts may not always be available in matching color.

$

$

Not available

16

Lawn-Boy 606537

SCREW F

Note: Important Note: Replacement parts may not always be available in matching color.

$2.49

$

In Stock, only 4 left!

0

17

Lawn-Boy 611217

SCREW

Note: Important Note: Replacement parts may not always be available in matching color.

$

$

Not available

18

Lawn-Boy 602315

LOCKNUT E

Note: Important Note: Replacement parts may not always be available in matching color.

$5.49

$

Usually ships in 3-6 days

0

19

Lawn-Boy 611202

BOLT

Note: Important Note: Replacement parts may not always be available in matching color.

$

$

Not available

20

Lawn-Boy 153254

DISCONTINUED
(Superseded to 682684)

Note: Important Note: Replacement parts may not always be available in matching color.

$

$

Not available

21

Lawn-Boy 612432

See Supercession: 613773
(Superseded to 613773)

Note: Important Note: Replacement parts may not always be available in matching color.

$

$

Not available

22

Lawn-Boy 320107

See Supercession: 614249
(Superseded to 614249)

Note: Important Note: Replacement parts may not always be available in matching color.

$1.49

$

In Stock, Qty 5

0

23

Lawn-Boy 611258

NUT C/LOCK E

Note: Important Note: Replacement parts may not always be available in matching color.

$

$

Not available

24

Lawn-Boy 612866

DISCONTINUED

Note: Important Note: Replacement parts may not always be available in matching color.

$

$

Not available

25

Lawn-Boy 611777

OUTER CONTROL CASE

Note: Important Note: Replacement parts may not always be available in matching color.

$36.99

$

Usually ships in 3-6 days

0

26

Lawn-Boy 612633

DISCONTINUED

Note: Important Note: Replacement parts may not always be available in matching color.

$

$

Not available

27

Lawn-Boy 611543

SCREW

Note: Important Note: Replacement parts may not always be available in matching color.

$4.99

$

In Stock, Qty 20+

0

28

Lawn-Boy 612586

WASHER-SPRING

Note: Important Note: Replacement parts may not always be available in matching color.

$3.49

$

In Stock, only 4 left!

0

29

Lawn-Boy 612588

CABLE THROT WES

Note: Important Note: Replacement parts may not always be available in matching color.

$68.99

$

Usually ships in 3-6 days

0

30

Lawn-Boy 612643

DISCONTINUED
(Superseded to 612698)

Note: Important Note: Replacement parts may not always be available in matching color.

$

$

Not available

31

Lawn-Boy 683663

LEVER&KNOB AY WES

Note: Important Note: Replacement parts may not always be available in matching color.

$

$

Not available

32

Lawn-Boy 612863

DISCONTINUED

Note: Important Note: Replacement parts may not always be available in matching color.

$

$

Not available

33

Lawn-Boy 612703

DISCONTINUED

Note: Important Note: Replacement parts may not always be available in matching color.

$

$

Not available

34

Lawn-Boy 683598

DISCONTINUED

Note: Important Note: Replacement parts may not always be available in matching color.

$

$

Not available

35

Lawn-Boy 612463

DISCONTINUED

Note: Important Note: Replacement parts may not always be available in matching color.

$

$

Not available

36

Lawn-Boy 611205

See Supercession: 322-7
(Superseded to 322-7)

Note: Important Note: Replacement parts may not always be available in matching color.

$1.49

$

In Stock, Qty 20+

0

37

Lawn-Boy 612682

DISCONTINUE

Note: Important Note: Replacement parts may not always be available in matching color.

$

$

Not available

38

Lawn-Boy 612825

See Supercession: 81-1630
(Superseded to 81-1630)

Note: Important Note: Replacement parts may not always be available in matching color.

$

$

Not available

39

Lawn-Boy 612828

DISCONTINUED

Note: Important Note: Replacement parts may not always be available in matching color.

$

$

Not available

40

Lawn-Boy 612688

DISCONTINUED

Note: Important Note: Replacement parts may not always be available in matching color.

$

$

Not available

41

Lawn-Boy 607544

NUT-WING

Note: Important Note: Replacement parts may not always be available in matching color.

$29.99

$

In Stock, only 2 left!

0

42

Lawn-Boy 145875

WASHER

Note: Important Note: Replacement parts may not always be available in matching color.

$

$

Not available

43

Lawn-Boy 683812

CONTROL LEVER AY

Note: Important Note: Replacement parts may not always be available in matching color.

$

$

Not available

44

Lawn-Boy 602992

DISCONTINUED

Note: Important Note: Replacement parts may not always be available in matching color.

$

$

Not available

45

Lawn-Boy 603699

DISCONTINUED

Note: Important Note: Replacement parts may not always be available in matching color.

$

$

Not available

46

Lawn-Boy 611229

CONTROL ROD

Note: Important Note: Replacement parts may not always be available in matching color.

$98.99

$

Usually ships in 3-6 days

0

47

Lawn-Boy 609739

WASHER-CURVED

Note: Important Note: Replacement parts may not always be available in matching color.

$3.99

$

In Stock, Qty 6

0

48

Lawn-Boy 608311

NUT-LOCK F

Note: Important Note: Replacement parts may not always be available in matching color.

$3.49

$

In Stock, only 1 left!

0

49

Lawn-Boy 610357

BOLT

Note: Important Note: Replacement parts may not always be available in matching color.

$

$

Not available

50

Lawn-Boy 610358

NUT-JAM, LOCKING

Note: Important Note: Replacement parts may not always be available in matching color.

$3.49

$

In Stock, Qty 15

0

51

Lawn-Boy 146012

See Supercession: 3230-3
(Superseded to 3230-3)

Note: Important Note: Replacement parts may not always be available in matching color.

$1.49

$

In Stock, Qty 20+

0

52

Lawn-Boy 145887

LOCK WASHER LARSON

Note: Important Note: Replacement parts may not always be available in matching color.

$2.49

$

In Stock, only 2 left!

0

Lawn-Boy 612824

CLIP-STARTER

Note: Important Note: Replacement parts may not always be available in matching color.

$4.99

$

In Stock, Qty 6

0
