7022 RLS - Husqvarna 22" Walk-Behind Mower (Original) FRAME Parts Diagram

22" Walk-Behind Mower

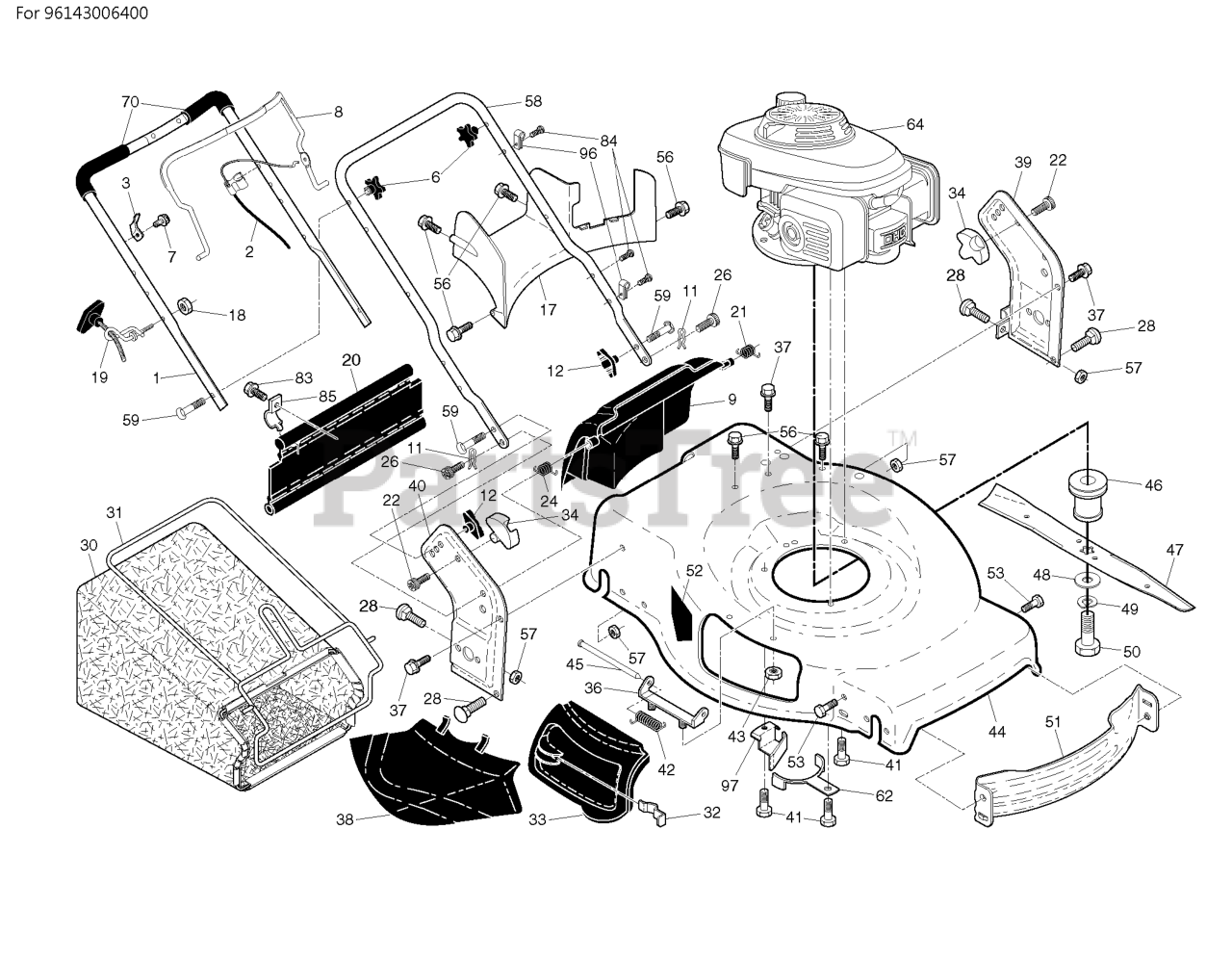

FRAME Parts Diagram

  • Title

46

Husqvarna 532421782

ADPTER.BLAD.25M.VS.22PLU.STAR
(Superseded to 581473301)

$20.99

$

In Stock, Qty 20+

0

33

Husqvarna 532423357

DOOR.ASM.MULCH.22.PLUS
(Superseded to 594942002)

$

$

Not available

52

Husqvarna 532404763

DANGER DECAL
(Superseded to 581579101)

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532429157

SKIRT.REAR.22PLUS.RGD/FGD.NEW

$9.99

$

In Stock, Qty 20+

0

30

Husqvarna 532429017

Grassbag

$

$

Currently unavailable

43

Husqvarna 532191730

NUT.HEX.FLANGE.1/4

$3.99

$

In Stock, Qty 7

0

57

Husqvarna 532155377

NUT.FLANGE.5/16
(Superseded to 596039201)

$3.99

$

In Stock, Qty 20+

0

42

Husqvarna 532193000

SPRING.TORSION

$8.49

$

In Stock, Qty 11

0

97

Husqvarna 532434893

BRACKE.BELT.GUIDE.22+
(Superseded to 580606902)

$

$

Not available

18

Husqvarna 532132004

NUT
(Superseded to 539976978)

$2.49

$

In Stock, Qty 20+

0

7

Husqvarna 532750634

SCREW

$3.49

$

In Stock, only 2 left!

0

62

Husqvarna 532425711

BRACKET.KEEPER.BELT

$

$

Not available

51

Husqvarna 532430599

BAFFLE.FRONT.22.PLUS

$

$

Not available

24

Husqvarna 532419948

SPRING.RH.GRAY

$5.99

$

In Stock, Qty 20+

0

85

Husqvarna 532434530

BRACKET.SKIRT.22+.BZP

$4.99

$

In Stock, Qty 17

0

70

Husqvarna 532182748

GRIP.HANDLE.FOAM.WIDE.(1 SIDE)

$

$

Not available

58

Husqvarna 532426072

HANDLE.LOWER.22+.BLACK
(Superseded to 501263201)

$31.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532430033

BRACKET.ASM.HANDLE.RT.22+.FG
(Superseded to 581353603)

$29.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532431390

DOOR.REAR.ASM.22+.HUSQ.FG/RGD
(Superseded to 593304501)

$59.99

$

In Stock, Qty 20+

0

26

Husqvarna 532419945

SCREW,DOOR/HANDLE.PIVOT

$7.49

$

In Stock, Qty 20+

0

38

Husqvarna 532426129

DEFLECTOR.CLIPPING.22.BLACK

$14.99

$

In Stock, Qty 20+

0

84

Husqvarna 532428124

FASTENER.PUSH.O.250X0.783

$2.49

$

In Stock, Qty 15

0

83

Husqvarna 532750097

TAPPING SCREW
(Superseded to 817021008)

$3.99

$

In Stock, Qty 20+

0

41

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$5.99

$

In Stock, only 3 left!

0

50

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$5.99

$

In Stock, Qty 20+

0

48

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, Qty 20+

0

64

000000000

Note: HONDA GCV160-LAS3A

$

$

Not available

8

Husqvarna 532426812

BAIL.CONTROL.MZR.BS.ORANGE

$

$

Not available

31

Husqvarna 532419951

RB FRAME.GBAG.22PLUS
(Superseded to 585054702)

$45.99

$

In Stock, Qty 20+

0

44

Husqvarna 532432263

KIT.HSG.22+RGD.MC.WO.ORG.CESYM

$

$

Not available

37

Husqvarna 532428867

BOLT.HEX.HD.WASHER.5/16-18X.75

$5.99

$

In Stock, Qty 20+

0

53

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$5.99

$

In Stock, Qty 13

0

17

Husqvarna 532431238

RP.BAFFLE.REAR.22+.RGD.PL
(Superseded to 581782101)

$37.99

$

In Stock, Qty 9

0

21

Husqvarna 532419949

SPRING.LH.BLACK

$5.99

$

In Stock, Qty 20+

0

45

Husqvarna 532175650

ROD.HINGE.21

$5.99

$

In Stock, Qty 5

0

34

Husqvarna 532426064

BRACKET.GRASSBAG.ATTAC

$

$

Not available

32

Husqvarna 532419944

Latch, Mulcher Door

$

$

Not available

6

Husqvarna 532182398

KNOB.HANDLE.PLASTIC.STAR.BLACK

$7.49

$

In Stock, Qty 15

0

19

Husqvarna 532194788

RB GUIDE.ROPE.STD.BLK.ZIN WSL
(Superseded to 586122501)

$9.99

$

In Stock, only 3 left!

0

12

Husqvarna 532191938

KNOB, DEFLECTOR
(Superseded to 532185577)

$9.99

$

In Stock, Qty 20+

0

3

Husqvarna 532430034

BRACKET.UPSTOP.RT

$

$

Not available

56

Husqvarna 817411312

SCREW.HX.13X.750

$5.99

$

In Stock, Qty 20+

0

59

Husqvarna 532191574

BOLT, HANDLE 5/16-18X1.75

$7.49

$

In Stock, Qty 20+

0

49

Husqvarna 532850263

LOCKWASHER
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

22

Husqvarna 532141841

SCREW.PAN.HEAD.#10

$3.99

$

In Stock, only 2 left!

0

2

Husqvarna 532424037

CABLE.MZR.RGD.PLUS.ERG
(Superseded to 532440386)

$21.99

$

In Stock, only 2 left!

0

36

Husqvarna 532175735

BRACKET.ASM.HINGE.21.FWGD.

$

$

Not available

39

Husqvarna 532430039

BRACKET.ASM.HANDLE.LT.22+.FG
(Superseded to 581353703)

$28.99

$

Usually ships in 3-10 days

0

96

Husqvarna 532197991

CLIP.CABLE.BLK

$3.99

$

In Stock, Qty 17

0

28

Husqvarna 872250505

BOLT
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

11

Husqvarna 532425575

COTTER.HAIRPIN.DOOR/HANDLE.PIV

$3.99

$

In Stock, Qty 16

0

47

Husqvarna 532420463

BLADE.22PLUS

$22.99

$

In Stock, Qty 20+

0

1

Husqvarna 532186296

HANDLE.ASM.UPPER.W/GRIP

Note: Includes Foam Grip

$

$

Not available
