71-16KS02 (C-160) - Toro Lawn Tractor (1977) Transaxle Parts Diagram

Lawn Tractor

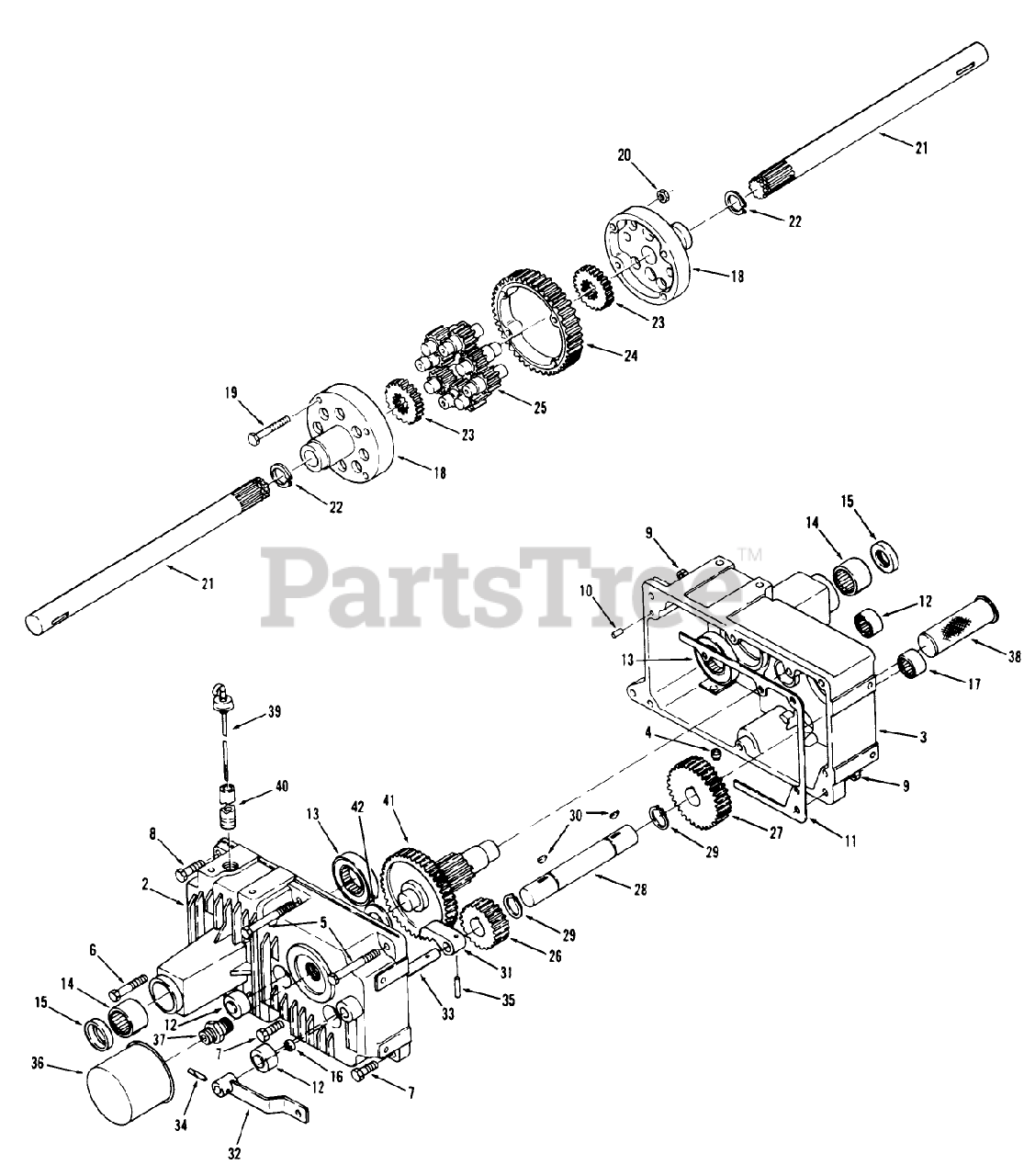

Transaxle Parts Diagram

  • Title

1

Toro 105931

Assy-Transaxle

$

$

Currently unavailable

2

Toro 103636

DISCONTINUED

$

$

Not available

3

Toro 102617

DISCONTINUED

$

$

Not available

4

Toro 943460

See Supercession: 285-22
(Superseded to 285-22)

$

$

Not available

5

Toro 908143

See Supercession: 323-39
(Superseded to 323-39)

$12.99

$

In Stock, Qty 20+

0

6

Toro 908043

See Supercession: 323-15
(Superseded to 323-15)

$2.49

$

In Stock, Qty 20+

0

7

Toro 908040

See Supercession: 323-12
(Superseded to 323-12)

$2.99

$

In Stock, Qty 20+

0

8

Toro 908038

See Supercession: 323-10
(Superseded to 323-10)

$1.49

$

In Stock, Qty 20+

0

9

Toro 915113

See Supercession: 32153-2
(Superseded to 32153-2)

$

$

Not available

10

Toro 3915

PIN-DOWEL

$8.99

$

Usually ships in 3-6 days

0

11

Toro 5999

DISCONTINUED

$

$

Not available

12

Toro 1532

BEARING-NEEDLE

$65.99

$

In Stock, only 2 left!

0

13

Toro 1533

DISCONTINUED

$

$

Not available

14

Toro 1526

DUP PART SEE $BOOK

$

$

Not available

15

Toro 6449

SEAL-OIL

$29.99

$

In Stock, Qty 20+

0

16

Toro 5959

DISCONTINUED

$

$

Not available

17

Toro 8049

DISCONTINUED
(Superseded to 5960)

$

$

Not available

18

Toro 105060

DIFFERENTIAL END CAP

$

$

Not available

19

Toro 911423

See Supercession: 1-800805
(Superseded to 1-800805)

$5.99

$

In Stock, Qty 20+

0

20

Toro 915663

See Supercession: 3296-39
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

21

Toro 105875

AXLE-REAR

$470.99

$

Usually ships in 3-6 days

0

22

Toro 105876

RING-SNAP

$6.49

$

Usually ships in 3-6 days

0

23

Toro 101889

GEAR-AXLE DIFFERENTIAL

$

$

Not available

24

Toro 105061

GEAR-DIFFERENTIAL RING, 43T

$1450.99

$

Usually ships in 3-6 days

0

25

Toro 101623

GEAR-PINION, 11T

$126.99

$

Usually ships in 3-6 days

0

26

Toro 102782

GEAR 24T

$

$

Not available

27

Toro 101885

DISCONTINUED

$

$

Not available

28

Toro 5965

DISCONTINUED

$

$

Not available

29

Toro 936131

See Supercession: 32151-29
(Superseded to 32151-29)

$5.99

$

In Stock, only 2 left!

0

30

Toro 937014

Key
(Superseded to 3257-5)

$6.49

$

In Stock, Qty 19

0

31

Toro 103888

DISCONTINUED

$

$

Not available

32

Toro 103496

DISCONTINUED

$

$

Not available

33

Toro 104348

DISCONTINUED

$

$

Not available

34

Toro 933152

See Supercession: 32121-50
(Superseded to 32121-50)

$3.99

$

In Stock, only 3 left!

0

35

Toro 933156

PIN-ROLL

$1.49

$

In Stock, only 3 left!

0

36

Toro 102819

See Supercession: 79-5270
(Superseded to 79-5270)

$24.99

$

In Stock, Qty 8

0

37

Toro 5991

FITTING

$

$

Not available

38

Toro 5992

See Supercession: 106047
(Superseded to 106047)

$

$

Not available

39

Toro 101847

See Supercession: 101847-03
(Superseded to 101847-03)

$

$

Not available

40

Toro 105209

See Supercession: 107968
(Superseded to 107968)

$

$

Not available

41

Toro 102865

DISCONTINUED

$

$

Not available

42

Toro 9547

WASHER-THRUST

$7.99

$

Usually ships in 3-6 days

0
