71184 (12-38 XL) - Toro Lawn Tractor (SN: 059000001 - 059100000) (1995) Hood Assembly Parts Diagram

Lawn Tractor

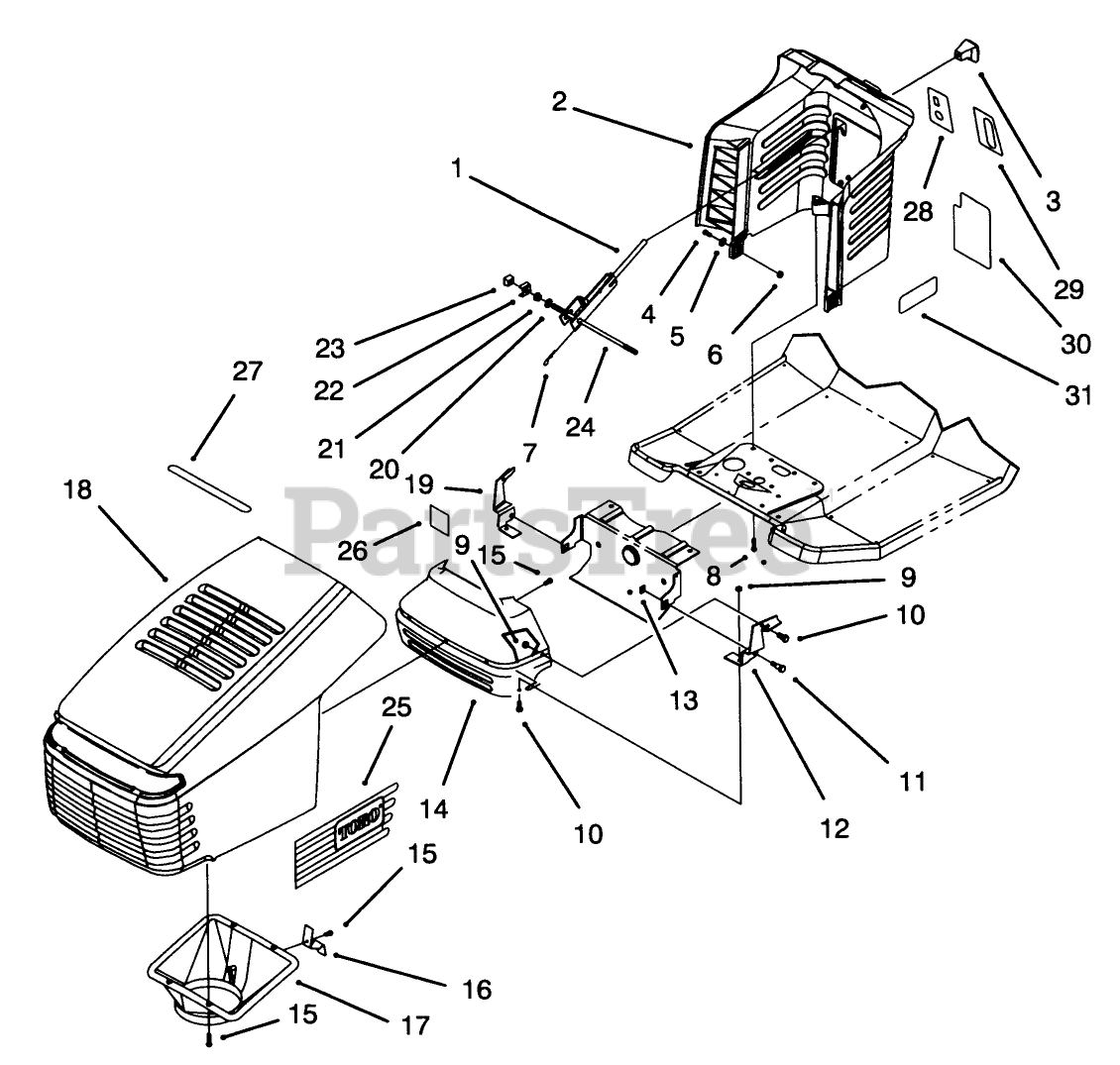

Hood Assembly Parts Diagram

  • Title

1

Toro 88-5190

See Supercession: 88-5190-03
(Superseded to 88-5190-03)

$

$

Not available

2

Toro 93-0303

See Supercession: 99-1947
(Superseded to 99-1947)

$606.99

$

Usually ships in 3-6 days

0

3

Toro 62-1292

SHIFT KNOB

$

$

Not available

4

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

5

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

6

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

7

Toro 3290-307

See Supercession: 1-806003
(Superseded to 1-806003)

$1.99

$

In Stock, Qty 20+

0

8

Toro 46-8091

SCREW-HWH

$4.49

$

In Stock, Qty 20+

0

9

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

10

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

11

Toro 28-0540

BOLT-SHOULDER

$13.99

$

In Stock, only 2 left!

0

12

Toro 88-6050

See Supercession: 88-6050-03
(Superseded to 88-6050-03)

$

$

Not available

13

Toro 3290-496

NUT-RETAINER

$7.49

$

In Stock, Qty 5

0

14

Toro 88-3930

See Supercession: 88-3930-03
(Superseded to 88-3930-03)

$

$

Not available

15

Toro 46-8090

SCREW-PLASTITE

$

$

Not available

16

Toro 88-4220

HOOD LATCH

$

$

Not available

17

Toro 88-4050

DUCT-AIR

$

$

Not available

18

Toro 92-8650

HOOD ASM

$

$

Not available

19

Toro 88-6040

See Supercession: 88-6040-03
(Superseded to 88-6040-03)

$14.99

$

In Stock, only 1 left!

0

20

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

21

Toro 32128-43

NUT-FLANGE

$1.49

$

In Stock, only 4 left!

0

22

Toro 88-4160

ROD-CLAMP PIVOT

$

$

Not available

23

Toro 88-4140

DISCONTINUED

$

$

Not available

24

Toro 88-4170

ROD-TOWER PIVOT

$

$

Not available

25

Toro 92-2467

DECAL - HOOD RIGHT

$

$

Not available

Toro 92-2468

DECAL - HOOD LEFT

Note: Not illustrated

$

$

Not available

26

Toro 92-5782

PICK AS EACH

$

$

Not available

27

Toro 92-5748

DECAL-AIR DUCT

$

$

Not available

28

Toro 92-2460

DECAL-IGNITION/LIGHTS

$27.99

$

Usually ships in 3-6 days

0

29

Toro 92-2461

DECAL-THROTTLE/CHOKE

$

$

Not available

30

Toro 92-2462

DECAL-DECK, ENGAGE

$

$

Not available

31

Toro 92-2474

DECAL - TOWER

$

$

Not available
