71184 (12-38 XL) - Toro Lawn Tractor (SN: 059000001 - 059100000) (1995) Housing Spindle Assembly (38" Cutting Unit) Parts Diagram

Lawn Tractor

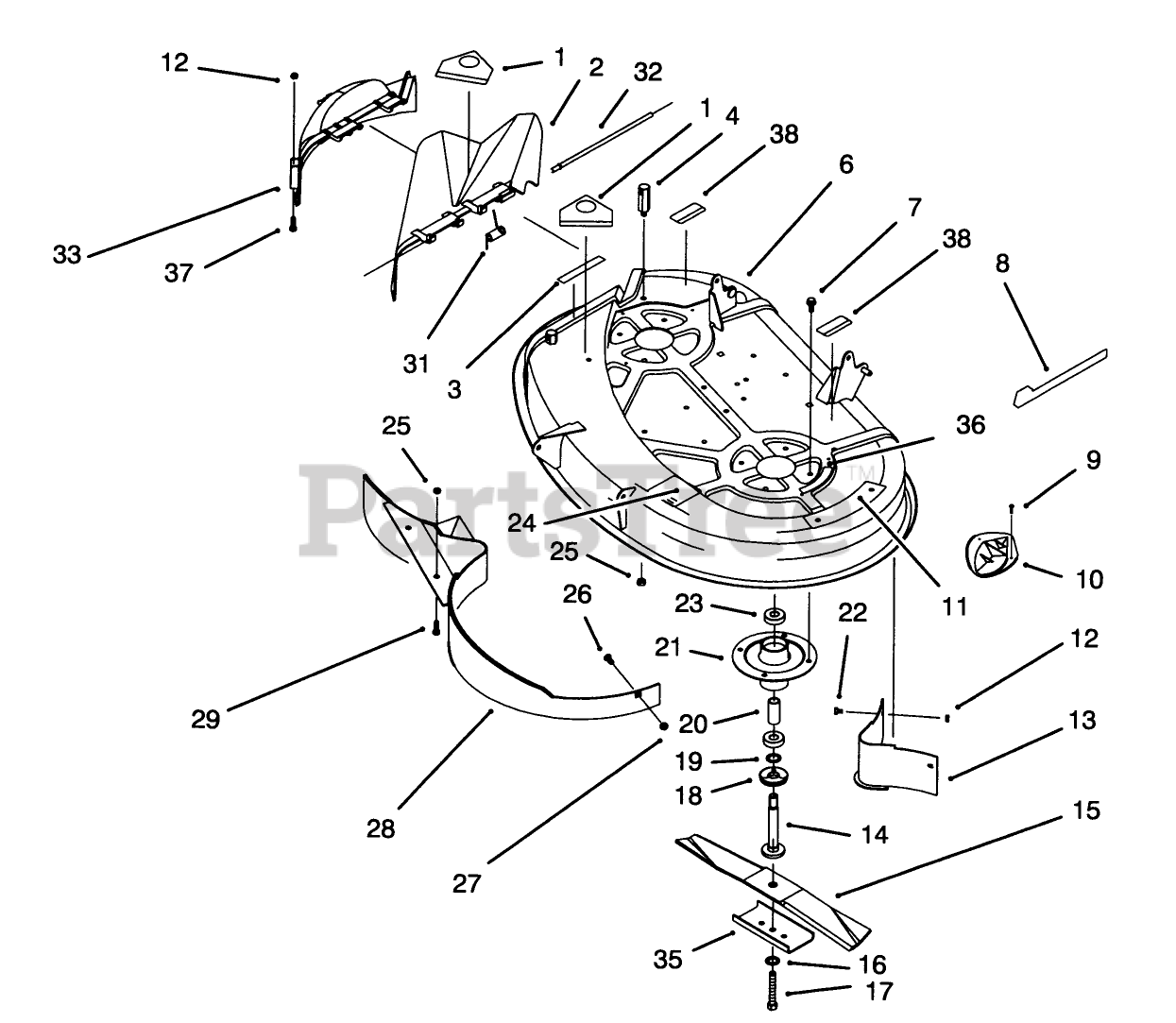

Housing Spindle Assembly (38" Cutting Unit) Parts Diagram

  • Title

1

Toro 93-1122

DECAL-DANGER

$10.99

$

In Stock, Qty 9

0

2

Toro 93-0317

DEFLECTOR ASM

$94.99

$

In Stock, Qty 7

0

3

Toro 68-3650

DECAL-DANGER, DEFLECTOR

$18.99

$

Usually ships in 3-6 days

0

4

Toro 57-4360

REAR PIVOT POST (PLTD)

$

$

Not available

6

Toro 88-5780-01

See Supercession: 16-9469
(Superseded to 16-9469)

$1135.99

$

Usually ships in 3-6 days

0

7

Toro 32144-41

SCREW-TAPTITE

$5.99

$

In Stock, Qty 20+

0

8

Toro 92-9520

DECAL-RECYCLER DECK 38"

$53.99

$

Usually ships in 3-6 days

0

9

Toro 32144-111

SCREW-PPH

$1.49

$

In Stock, Qty 10

0

10

Toro 76-2160

PLATE-KICKER

$17.99

$

Usually ships in 3-6 days

0

11

Toro 79-3140

DECAL-DANGER

$20.99

$

Usually ships in 3-6 days

0

12

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

13

Toro 79-1640

See Supercession: 79-1640-03
(Superseded to 79-1640-03)

$78.99

$

Usually ships in 3-6 days

0

14

Toro 80-4341

SHAFT-SPINDLE

$57.99

$

In Stock, Qty 10

0

15

Toro 79-3061

See Supercession: 14-7799
(Superseded to 14-7799)

$78.99

$

In Stock, only 4 left!

0

16

Toro 3290-465

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

17

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

18

Toro 80-4360

SHIELD-BEARING

$21.99

$

In Stock, Qty 20+

0

19

Toro 80-4380

SPACER

$7.49

$

In Stock, Qty 20+

0

20

Toro 62-3661

SPACER

$17.99

$

In Stock, Qty 20+

0

21

Toro 88-4510

HOUSING-SPINDLE

$116.99

$

In Stock, Qty 10

0

22

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

23

Toro 38-7820

BEARING-BALL

$15.99

$

In Stock, Qty 20+

0

24

Toro 117137

See Supercession: 117-0033
(Superseded to 117-0033)

$8.99

$

Usually ships in 3-6 days

0

25

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

26

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

27

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

28

Toro 79-1600

See Supercession: 79-1600-03
(Superseded to 79-1600-03)

$124.99

$

Usually ships in 3-6 days

0

29

Toro 323-5

SCREW-HH

$1.49

$

In Stock, Qty 5

0

31

Toro 57-6950

SPRING

$30.99

$

In Stock, Qty 6

0

32

Toro 57-4380

ROD-HINGE DEFLECTOR

$43.99

$

Usually ships in 3-6 days

0

33

Toro 88-4430

COVER-RECYCLER

$

$

Not available

35

Toro 80-0510

See Supercession: 80-0510-03
(Superseded to 80-0510-03)

$20.99

$

In Stock, Qty 5

0

36

Toro 68-3660

DECAL-DANGER, SHIELD

$14.99

$

In Stock, only 1 left!

0

37

Toro 321-14

SCREW-HH

$5.49

$

In Stock, Qty 7

0

38

Toro 55-4300

DECAL-WARNING

$15.99

$

Usually ships in 3-6 days

0
