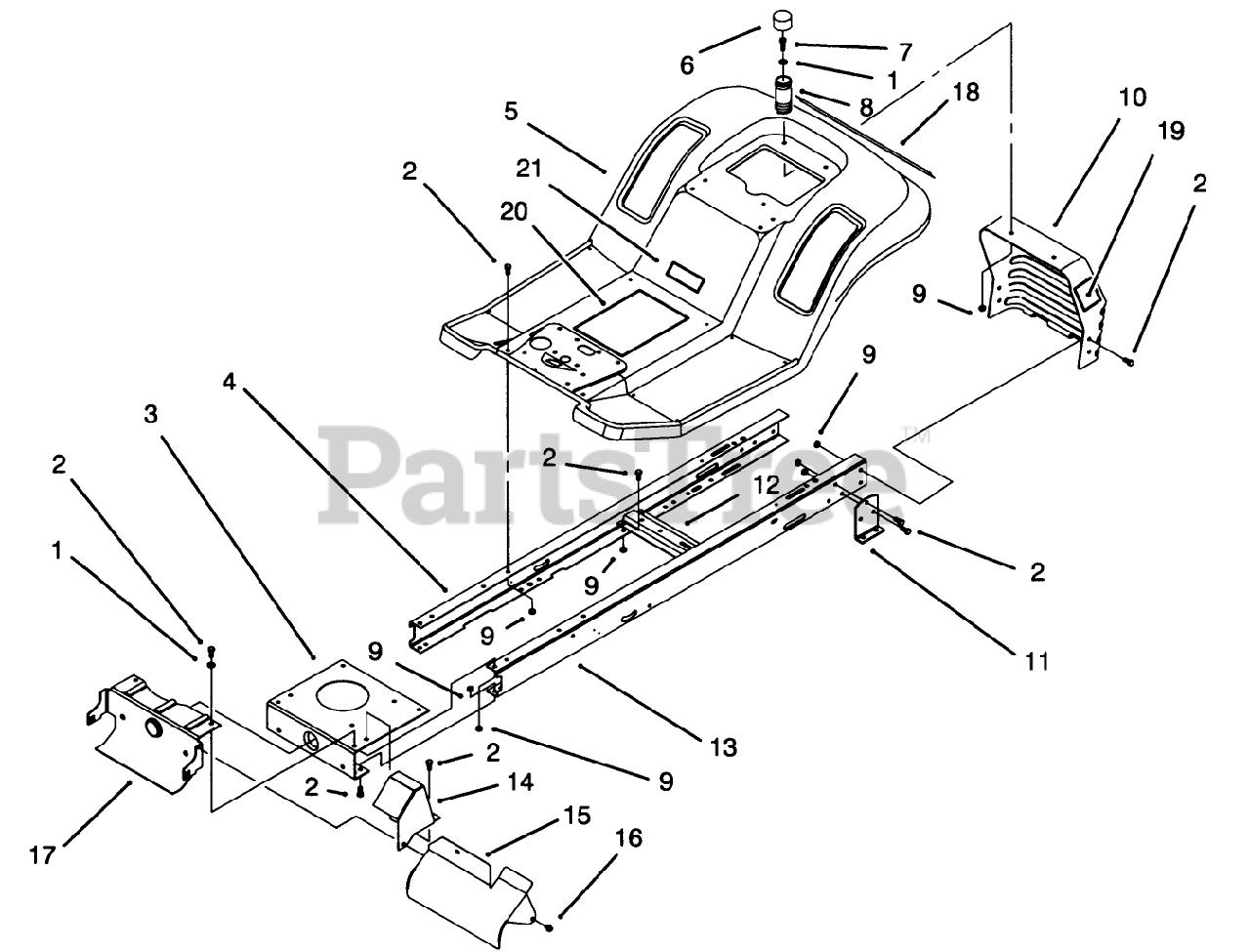

71191 (13-38 HXL) - Toro Lawn Tractor (SN: 059000001 - 059100000) (1995) Frame Assembly Parts Diagram

Lawn Tractor

Frame Assembly Parts Diagram

  • Title

1

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

2

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

3

Toro 88-4630

See Supercession: 88-4630-03
(Superseded to 88-4630-03)

$

$

Not available

4

Toro 88-4650

See Supercession: 99-2959-03
(Superseded to 99-2959-03)

$131.99

$

Usually ships in 3-6 days

0

5

Toro 88-3840-01

BODY-REAR

$863.99

$

Usually ships in 3-6 days

0

6

Toro 701178

CAP-PROTECTOR

$2.99

$

In Stock, Qty 15

0

7

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

8

Toro 88-6220

SPRING-COMPRESSION

$38.99

$

Usually ships in 3-6 days

0

9

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

10

Toro 88-3940

See Supercession: 99-2957-03
(Superseded to 99-2957-03)

$208.99

$

Usually ships in 3-6 days

0

11

Toro 88-5260

See Supercession: 88-5260-03
(Superseded to 88-5260-03)

$15.99

$

Usually ships in 3-6 days

0

12

Toro 88-4620

See Supercession: 88-4620-03
(Superseded to 88-4620-03)

$

$

Not available

13

Toro 88-4660

See Supercession: 99-2958-03
(Superseded to 99-2958-03)

$131.99

$

Usually ships in 3-6 days

0

14

Toro 88-4960

See Supercession: 88-4960-03
(Superseded to 88-4960-03)

$

$

Not available

15

Toro 88-6290

See Supercession: 88-6290-03
(Superseded to 88-6290-03)

$62.99

$

Usually ships in 3-6 days

0

16

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

17

Toro 88-5120

See Supercession: 110-8636-03
(Superseded to 110-8636-03)

$76.99

$

Usually ships in 3-6 days

0

18

Toro 92-8789

DECAL - REAR BODY

$58.99

$

Usually ships in 3-6 days

0

19

Toro 92-8784

DISCONTINUED

$

$

Not available

20

Toro 92-2486

See Supercession: 94-1238
(Superseded to 94-1238)

$

$

Not available

Toro 93-1366

DISCONTINUED

Note: Not illustrated

$

$

Not available

21

Toro 117242

See Supercession: 76-1340
(Superseded to 76-1340)

$

$

Not available
