71191 (13-38 HXL) - Toro Lawn Tractor (SN: 059010001 - 059999999) (1995) Height Of Cut Assembly Parts Diagram

Lawn Tractor

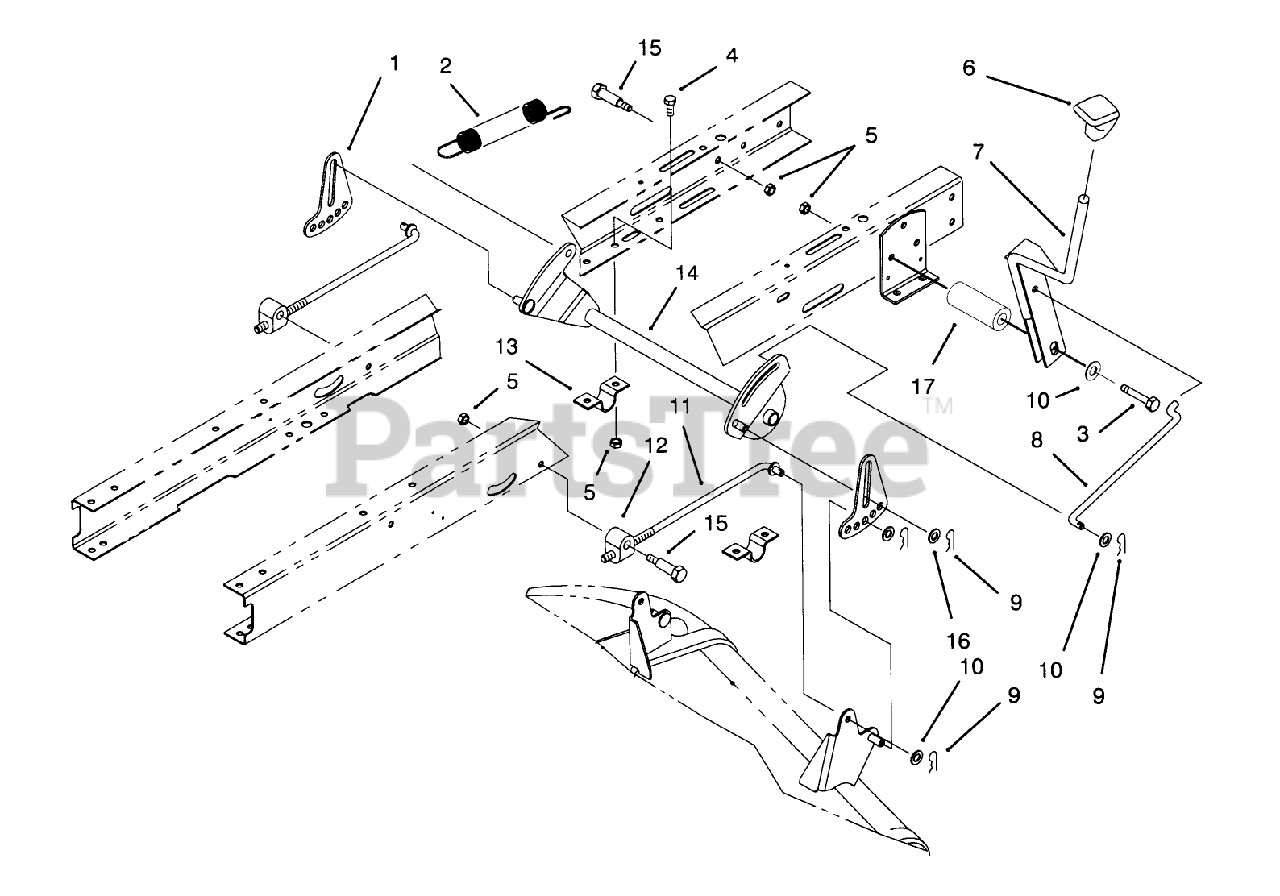

Height Of Cut Assembly Parts Diagram

  • Title

1

Toro 3-5570

See Supercession: 88-5570-03
(Superseded to 88-5570-03)

$16.99

$

Usually ships in 3-6 days

0

2

Toro 3-6460

See Supercession: 88-6460
(Superseded to 88-6460)

$

$

Not available

3

Toro 322-9

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

4

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

5

Toro 296-29

Nut-Lock

$

$

Currently unavailable

6

Toro 2-1292

Knob-Shift

$

$

Currently unavailable

7

Toro 3-3822

Lever-H.O.C.

$

$

Currently unavailable

8

Toro 3-5900

Link-H.O.C.

$

$

Currently unavailable

9

Toro 290-307

Pin-Hair Cotter

$

$

Currently unavailable

10

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Toro 88-5450

ROD-HANGER, REAR

$65.99

$

Usually ships in 3-6 days

0

12

Toro 88-4230

TRUNNION-HOC

$16.99

$

In Stock, only 4 left!

0

13

Toro 88-4730

CLAMP-PIVOT, HOC

$6.49

$

Usually ships in 3-6 days

0

14

Toro 88-5110

See Supercession: 88-5110-03
(Superseded to 88-5110-03)

$174.99

$

Usually ships in 3-6 days

0

15

Toro 7-0030

SCREW-SHOULDER, HH

$9.49

$

In Stock, Qty 6

0

16

Toro 80-6990

WASHER-HARDENED

$6.49

$

In Stock, Qty 20+

0

17

Toro 65-7210

SPACER

$3.99

$

In Stock, only 2 left!

0
