71192 (15-44 HXL) - Toro Lawn Tractor (SN: 059000001 - 059999999) (1995) Engine Assembly Parts Diagram

Lawn Tractor

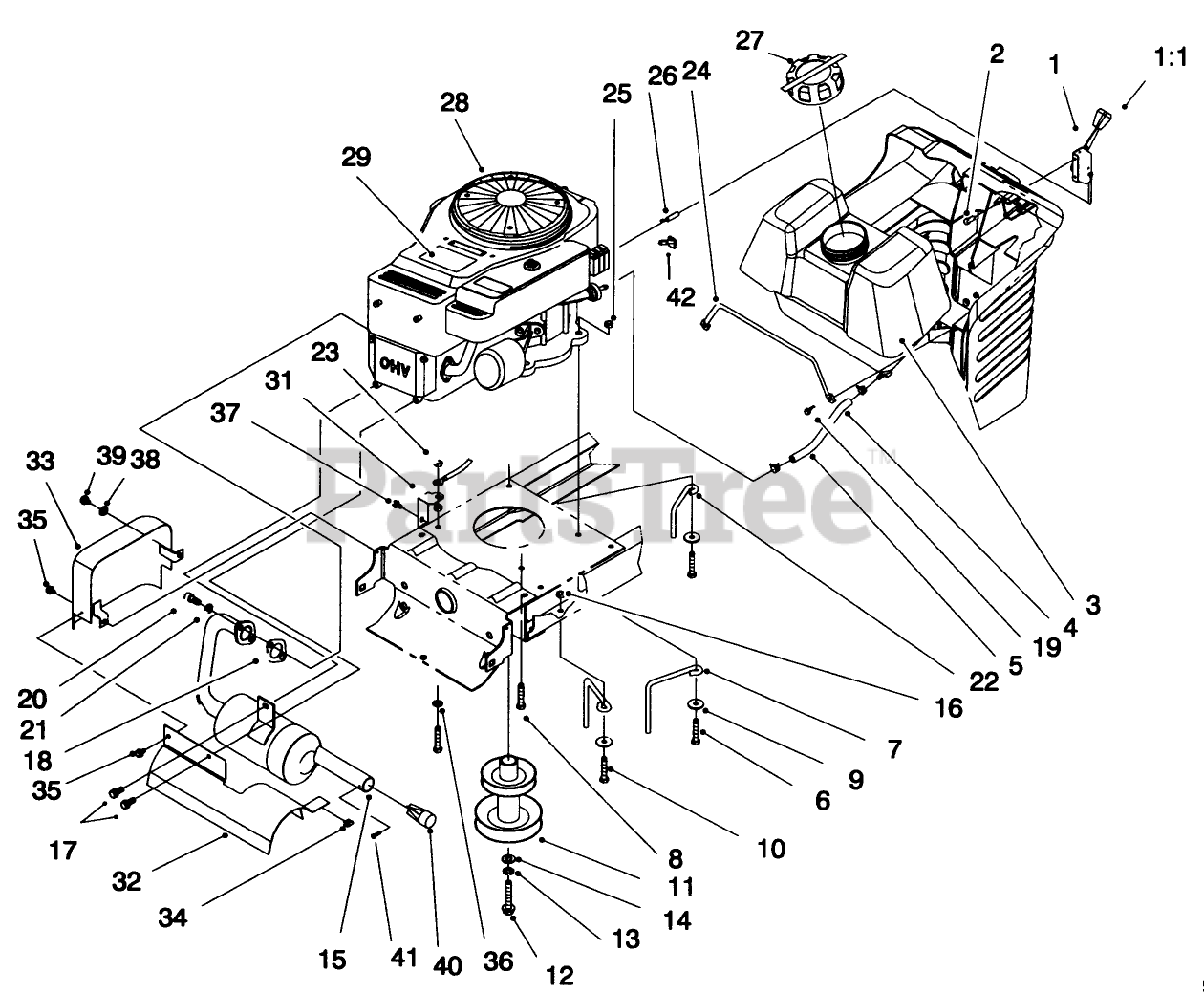

Engine Assembly Parts Diagram

  • Title

1

Toro 88-4340

THROTTLE CONTROL ASM

$47.99

$

Usually ships in 3-6 days

0

1:1

Toro 66-0120

KNOB

$6.49

$

In Stock, only 3 left!

0

2

Toro 27-0220

SCREW-SPECIAL

$8.49

$

In Stock, only 2 left!

0

3

Toro 88-3880

GAS TANK ASM

$252.99

$

Usually ships in 3-6 days

0

4

Toro 47-2963

See Supercession: 107-9297
(Superseded to 107-9297)

$8.99

$

In Stock, only 2 left!

0

5

Toro 2412-98

CLAMP-HOSE
(Superseded to 702355)

$107.99

$

Usually ships in 3-6 days

0

6

Toro 322-9

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

7

Toro 93-3854

GUIDE-BELT, ENGINE

$16.99

$

Usually ships in 3-6 days

0

8

Toro 9267154

SCREW-HWH, TAPTITE

$3.99

$

In Stock, Qty 6

0

9

Toro 5-4460

WASHER-PIVOT

$8.49

$

In Stock, Qty 20+

0

10

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

11

Toro 93-3832

DISCONTINUED

$

$

Not available

12

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

13

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 2 left!

0

14

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, only 2 left!

0

15

Toro 93-3892

See Supercession: 99-6845
(Superseded to 99-6845)

$535.99

$

Usually ships in 3-6 days

0

16

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

17

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

18

Toro 88-4410

GASKET-EXHAUST

$20.99

$

In Stock, only 4 left!

0

19

Toro 27-0220

SCREW-SPECIAL

$8.49

$

In Stock, only 2 left!

0

20

Toro 3274-10

SCREW-HSH

$11.99

$

In Stock, Qty 20+

0

21

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

22

Toro 93-3855

GUIDE-BELT, RH

$16.99

$

Usually ships in 3-6 days

0

23

Toro 32149-1

NUT-KEPS

$6.99

$

In Stock, only 2 left!

0

24

Toro 88-5920

GAS TANK ROD

$

$

Not available

25

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

26

Toro 88-4350

THROTTLE CABLE ASM

$33.99

$

Usually ships in 3-6 days

0

27

Toro 88-3980

GAS CAP ASM

$37.99

$

In Stock, Qty 12

0

28

Engine-15.5HP

$

$

Not available

29

Toro 93-3775

DISCONTINUED

$

$

Not available

31

Toro 93-3809

BRACKET-GROUND

$

$

Not available

32

Toro 93-3880

See Supercession: 93-3880-03
(Superseded to 93-3880-03)

$

$

Not available

33

Toro 93-8450

See Supercession: 93-8450-03
(Superseded to 93-8450-03)

$130.99

$

Usually ships in 3-6 days

0

34

Toro 93-3882

CLIP-TINNERMAN

$

$

Not available

35

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

36

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

37

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

38

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

39

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

40

Toro 93-9911

SCREEN-SILENCER, EXHAUST

$50.99

$

Usually ships in 3-6 days

0

41

Toro 32144-42

SCREW-THD FORM, HWH

$1.49

$

Usually ships in 3-6 days

0

42

Toro 88-4490

REDUCER-THROTTLE, RPM

$21.99

$

Usually ships in 3-6 days

0
