71200 (12-32 XL) - Toro Lawn Tractor (SN: 059000001 - 059100000) (1995) Pulley Belt Assembly (32" Cutting Unit) Parts Diagram

Lawn Tractor

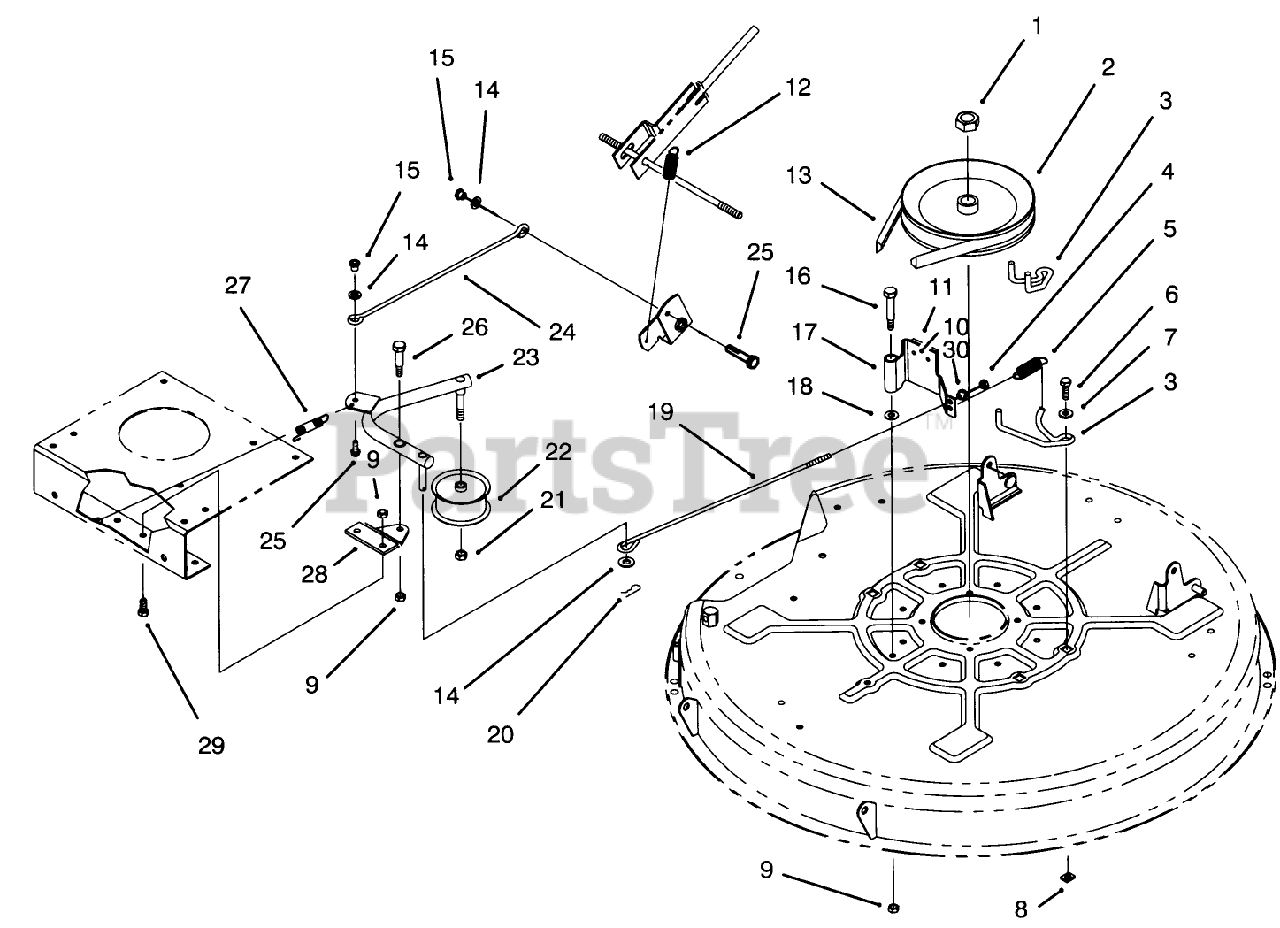

Pulley Belt Assembly (32" Cutting Unit) Parts Diagram

  • Title

1

Toro 3219-7

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

2

Toro 88-5060

PULLEY-DECK

$

$

Not available

3

Toro 88-5760

GUIDE-BELT, DECK

$

$

Not available

4

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

5

Toro 88-6330

SPRING-EXTENSION

$9.49

$

Usually ships in 3-6 days

0

6

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

7

Toro 5-4460

WASHER-PIVOT

$8.49

$

In Stock, Qty 20+

0

8

Toro 3290-496

NUT-RETAINER

$7.49

$

In Stock, Qty 5

0

9

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

10

Toro 3290-282

RIVET-BLIND

$0.99

$

In Stock, Qty 7

0

11

Toro 56-9830

PAD-BRAKE

$38.99

$

Usually ships in 3-6 days

0

12

Toro 88-6420

CABLE SPRING ASM

$55.99

$

In Stock, only 3 left!

0

13

Toro 88-6260

V-BELT

$60.99

$

In Stock, only 2 left!

0

14

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Toro 47-4990

POST-MOUNTING, LINKAGE

$29.99

$

Usually ships in 3-6 days

0

16

Toro 88-4590

BOLT-SHOULDER

$12.99

$

In Stock, only 2 left!

0

17

Toro 88-6110

BRAKE ARM ASM

$100.99

$

Usually ships in 3-6 days

0

18

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

19

Toro 88-5690

ROD-BRAKE, DECK

$

$

Not available

20

Toro 3290-307

See Supercession: 1-806003
(Superseded to 1-806003)

$1.99

$

In Stock, Qty 20+

0

21

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

22

Toro 56-9870

PULLEY-IDLER

$56.99

$

In Stock, only 2 left!

0

23

Toro 88-5850

See Supercession: 88-5850-03
(Superseded to 88-5850-03)

$420.99

$

Usually ships in 3-6 days

0

24

Toro 88-5980

ROD-ENGAGE, DECK

$32.99

$

Usually ships in 3-6 days

0

25

Toro 3234-13

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

26

Toro 7-0030

SCREW-SHOULDER, HH

$9.49

$

In Stock, Qty 6

0

27

Toro 26-6700

SPRING-RETURN, BRAKE

$

$

Not available

28

Toro 88-5370

See Supercession: 88-5370-03
(Superseded to 88-5370-03)

$

$

Not available

29

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

30

Toro 67-0710

BALL-SWIVEL, STOP

$4.99

$

Usually ships in 3-6 days

0
