71254 (XLS 380) - Toro Lawn Tractor (SN: 311000001 - 311999999) (2011) Crankshaft, Camshaft and Piston Assembly Parts Diagram

Lawn Tractor

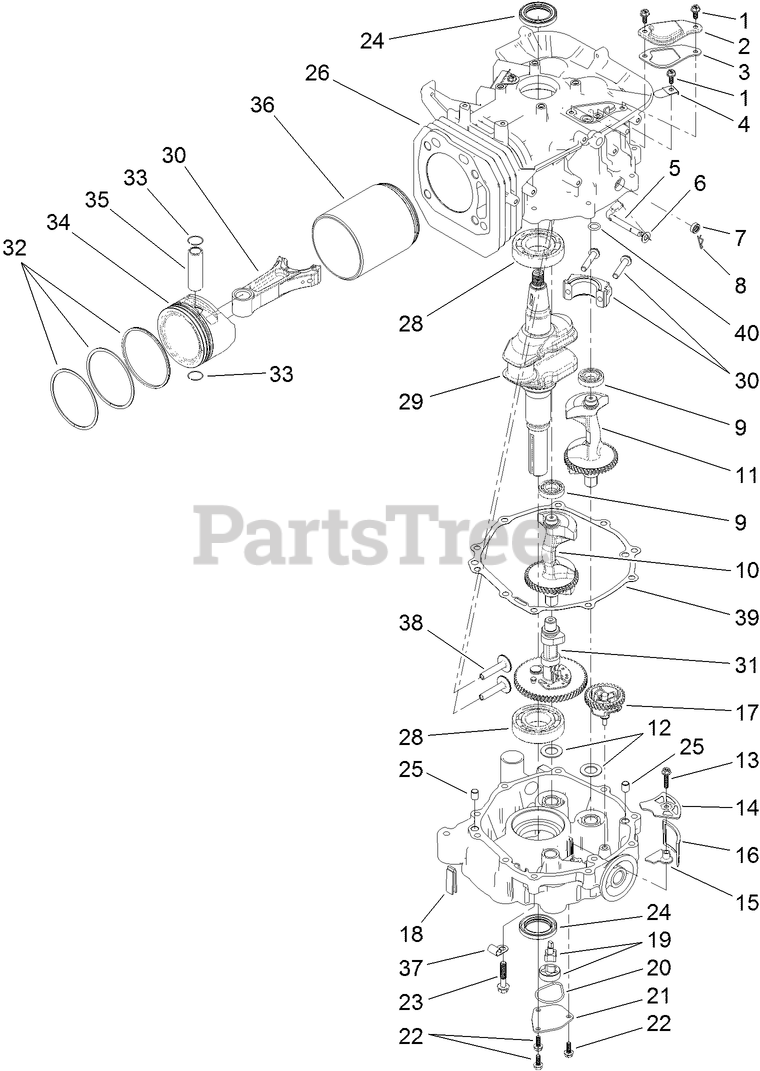

Crankshaft, Camshaft and Piston Assembly Parts Diagram

  • Title

1

Toro 120-4216

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

2

Toro 120-4265

PLATE-BREATHER

$5.99

$

Usually ships in 3-6 days

0

3

Toro 120-4264

GASKET-BREATHER

$5.99

$

Usually ships in 3-6 days

0

4

Toro 120-4263

VALVE-REED

$10.99

$

Usually ships in 3-6 days

0

5

Toro 120-4259

SHAFT-GOVERNOR
(Superseded to 120-4382)

$10.99

$

Usually ships in 3-6 days

0

6

Toro 120-4258

WASHER-PLAIN

$1.49

$

Usually ships in 3-6 days

0

7

Toro 120-4257

SEAL-OIL

$5.99

$

In Stock, only 2 left!

0

8

Toro 120-4256

PIN-HAIR

$1.49

$

Usually ships in 3-6 days

0

9

Toro 120-4266

BEARING-BALL

$26.99

$

Usually ships in 3-6 days

0

10

Toro 120-4294

BALANCER-RH

$70.99

$

Usually ships in 3-6 days

0

11

Toro 120-4296

See Supercession: 127-9180
(Superseded to 127-9180)

$70.99

$

Usually ships in 3-6 days

0

12

Toro 120-4295

WASHER

$5.99

$

Usually ships in 3-6 days

0

13

Toro 120-4225

SCREW-HHF

$1.99

$

In Stock, Qty 20+

0

14

Toro 120-4280

COVER-STRAINER, OIL

$

$

Not available

15

Toro 120-4279

PLATE-BAFFLE, OIL

$8.99

$

Usually ships in 3-6 days

0

16

Toro 120-4278

See Supercession: 120-4341
(Superseded to 120-4341)

$8.49

$

Usually ships in 3-6 days

0

17

Toro 120-4277

GOVERNOR ASM

$

$

Not available

18

Toro 120-4275

DEFLECTOR-OIL, RUBBER

$1.49

$

In Stock, only 1 left!

0

19

Toro 120-4272

PUMP-OIL

$

$

Not available

20

Toro 120-4271

See Supercession: 120-4343
(Superseded to 120-4343)

$3.49

$

In Stock, Qty 10

0

21

Toro 120-4270

COVER-PUMP, OIL

$6.99

$

Usually ships in 3-6 days

0

22

Toro 120-4232

SCREW-HHF

$1.49

$

In Stock, only 2 left!

0

23

Toro 120-4273

SCREW-HHF

$10.99

$

Usually ships in 3-6 days

0

24

Toro 120-4267

SEAL-OIL

$22.99

$

Usually ships in 3-6 days

0

25

Toro 120-4274

PIN-DOWEL

$1.49

$

Usually ships in 3-6 days

0

26

Toro 120-4286

See Supercession: 120-4327
(Superseded to 136-7828)

$158.99

$

Usually ships in 3-6 days

0

28

Toro 120-4261

BEARING-BALL

$26.99

$

Usually ships in 3-6 days

0

29

Toro 120-4293

CRANKSHAFT

$209.99

$

Usually ships in 3-6 days

0

30

Toro 120-4292

CONNECTING ROD ASM

$47.99

$

In Stock, only 2 left!

0

31

Toro 120-4297

CAMSHAFT

$106.99

$

Usually ships in 3-6 days

0

32

Toro 120-4289

RING SET

$30.99

$

In Stock, only 2 left!

0

33

Toro 120-4288

RING-RETAINING, PISTON PIN

$1.49

$

In Stock, Qty 9

0

34

Toro 120-4290

PISTON

$66.99

$

In Stock, only 2 left!

0

35

Toro 120-4291

PIN-PISTON

$10.99

$

Usually ships in 3-6 days

0

36

Toro 120-4269

CRANKCASE

$

$

Not available

37

Toro 120-4287

CLAMP-J

$3.49

$

Usually ships in 3-6 days

0

38

Toro 120-4298

LIFTER-VALVE

$15.99

$

Usually ships in 3-6 days

0

39

Toro 120-4260

GASKET-CRANKCASE

$15.99

$

In Stock, only 3 left!

0

40

Toro 120-4262

O-RING

$1.49

$

In Stock, Qty 12

0
