71254 (XLS 380) - Toro Lawn Tractor (SN: 312000001 - 312999999) (2012) 38 Inch Deck Belt and Blade Assembly Parts Diagram

Lawn Tractor

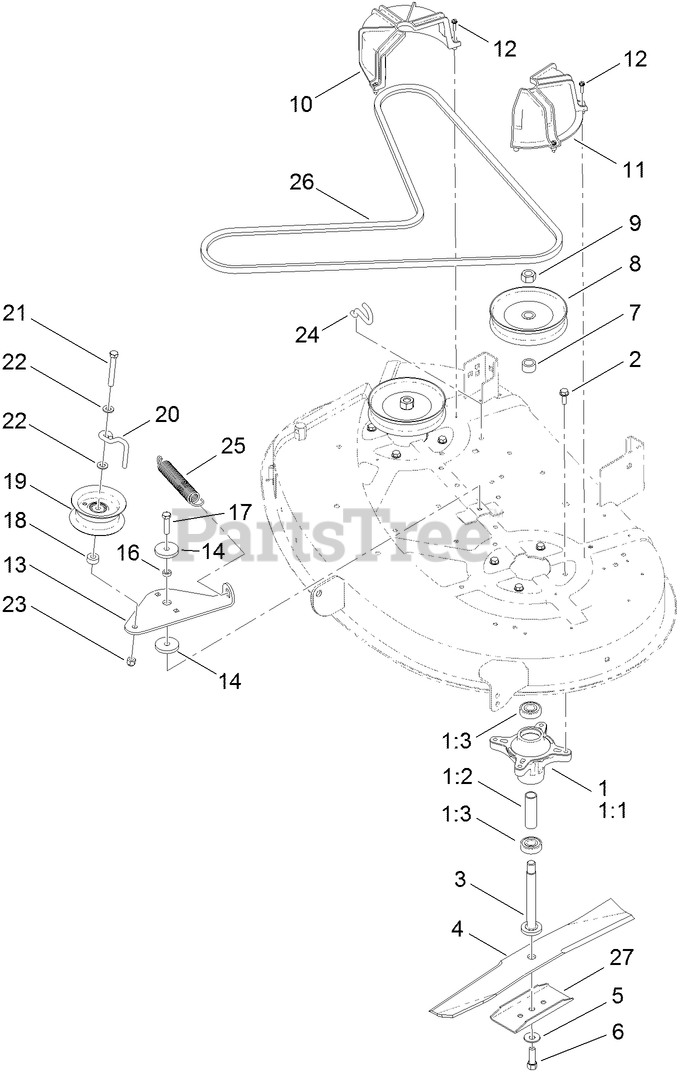

38 Inch Deck Belt and Blade Assembly Parts Diagram

  • Title

1

Toro 117-7439

See Supercession: 121-0751
(Superseded to 139-3214)

$84.99

$

In Stock, Qty 17

0

1:1

Toro 117-7267

See Supercession: 121-0751
(Superseded to 139-3214)

$84.99

$

In Stock, Qty 17

0

1:2

Toro 117-7269

SPACER

$8.49

$

In Stock, only 1 left!

0

1:3

Toro 100-1048

See Supercession: 38-7820
(Superseded to 38-7820)

$15.99

$

In Stock, Qty 20+

0

2

Toro 32144-41

SCREW-TAPTITE

$5.99

$

In Stock, Qty 20+

0

3

Toro 119-8229

SHAFT-SPINDLE

$36.99

$

Usually ships in 3-6 days

0

4

Toro 79-3061-03

See Supercession: 14-7799
(Superseded to 14-7799)

$78.99

$

In Stock, only 4 left!

0

5

Toro 3290-465

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

6

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

7

Toro 120-1113

SPACER-PULLEY

$

$

Not available

8

Toro 88-5330

PULLEY

$139.99

$

In Stock, only 2 left!

0

9

Toro 3219-6

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

10

Toro 120-1106

GUIDE-BELT, RH

$

$

Not available

11

Toro 120-1107

GUIDE-BELT, LH

$12.99

$

Usually ships in 3-6 days

0

12

Toro 32144-53

SCREW-SHWH, THREAD FORMING

$4.49

$

In Stock, Qty 17

0

13

Toro 120-1108

ARM-IDLER

$29.99

$

Usually ships in 3-6 days

0

14

Toro 110-9981

WASHER-PLAIN

$16.99

$

In Stock, Qty 17

0

16

Toro 120-1112

SPACER

$10.99

$

Usually ships in 3-6 days

0

17

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

18

Toro 104-8426

SPACER

$10.99

$

In Stock, only 1 left!

0

19

Toro 88-5630

See Supercession: 132-4717
(Superseded to 132-4717)

$25.99

$

In Stock, Qty 5

0

20

Toro 107-7307

GUIDE-IDLER, BELT
(Superseded to 138-7270)

$2.99

$

In Stock, Qty 20+

0

21

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$2.49

$

In Stock, Qty 20+

0

22

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

23

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

24

Toro 88-5970

HOOK-RETURN, SPRING
(Superseded to 138-7267)

$2.99

$

In Stock, Qty 20+

0

25

Toro 106-2177

SPRING-EXTENSION

$15.99

$

In Stock, Qty 10

0

26

Toro 120-1116

See Supercession: 121-3996
(Superseded to 121-3996)

$118.99

$

Usually ships in 3-6 days

0

27

Toro 80-0510-03

STIFFENER-BLADE

$20.99

$

In Stock, Qty 5

0
