71283 (17-44 HXLE) - Toro Lawn Tractor (SN: 220010001 - 220999999) (2002) Axle Assembly Parts Diagram

Lawn Tractor

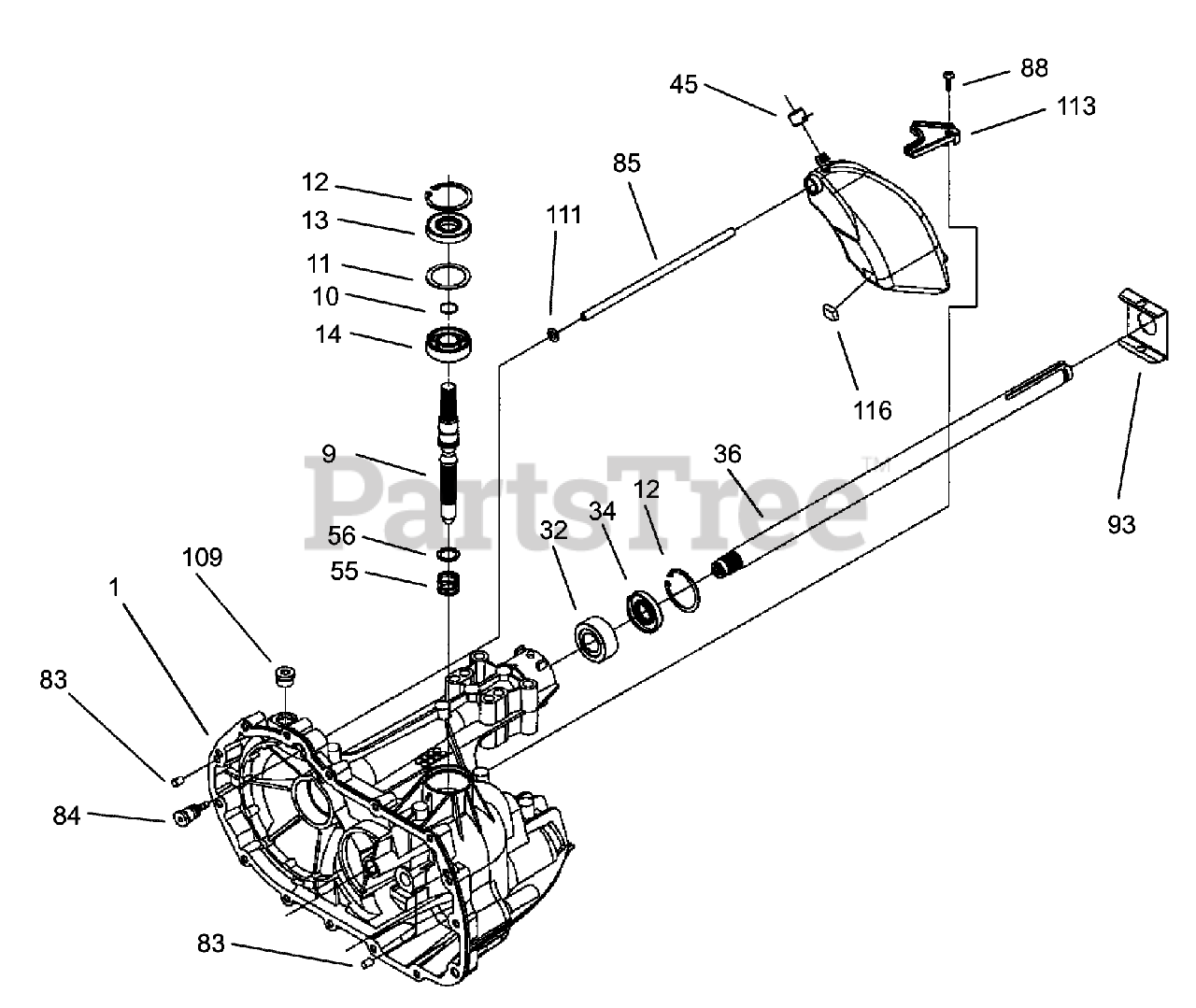

Axle Assembly Parts Diagram

  • Title

1

Toro 104-5301

MAIN HOUSING ASM

$

$

Not available

9

Toro 104-5306

SHAFT-INPUT

$422.99

$

Usually ships in 3-6 days

0

10

Toro 104-5307

RING-RETAINING

$8.49

$

Usually ships in 3-6 days

0

11

Toro 104-5308

SPACER

$9.49

$

In Stock, only 2 left!

0

12

Toro 104-5309

RING-RETAINING

$13.99

$

In Stock, only 3 left!

0

13

Toro 104-5310

SEAL-LIP

$43.99

$

In Stock, only 2 left!

0

14

Toro 104-5311

BEARING-BALL

$50.99

$

In Stock, only 3 left!

0

32

Toro 104-5321

BEARING-SLEEVE, OUTBOARD

$46.99

$

Usually ships in 3-6 days

0

34

Toro 104-5322

SEAL-LIP

$45.99

$

Usually ships in 3-6 days

0

36

Toro 104-5324

SHAFT-AXLE, LH

$

$

Not available

55

Toro 94-1936

SPRING-BLOCK

$9.49

$

In Stock, only 1 left!

0

56

Toro 94-1937

WASHER-THRUST

$7.49

$

In Stock, only 1 left!

0

83

Toro 104-2170

PIN

$9.49

$

Usually ships in 3-6 days

0

84

Toro 104-5349

FITTING-SAE

$78.99

$

Usually ships in 3-6 days

0

85

Toro 104-5350

HOSE-EXPANSION, TANK

$

$

Not available

87

Toro 104-5351

CAP-VENT

$

$

Not available

88

Toro 104-5352

BOLT-TAPPING, SELF

$

$

Not available

93

Toro 104-5353

CLIP-SPRING

$

$

Not available

111

Toro 104-5361

O-RING

$9.49

$

Usually ships in 3-6 days

0

113

Toro 104-5362

BRACKET-SUPPORT

$

$

Not available

116

Toro 104-5364

SPONGE-SILICONE

$

$

Not available
