71283 (17-44 HXLE) - Toro Lawn Tractor (SN: 230000001 - 230999999) (2003) Electrical Component Assembly Parts Diagram

Lawn Tractor

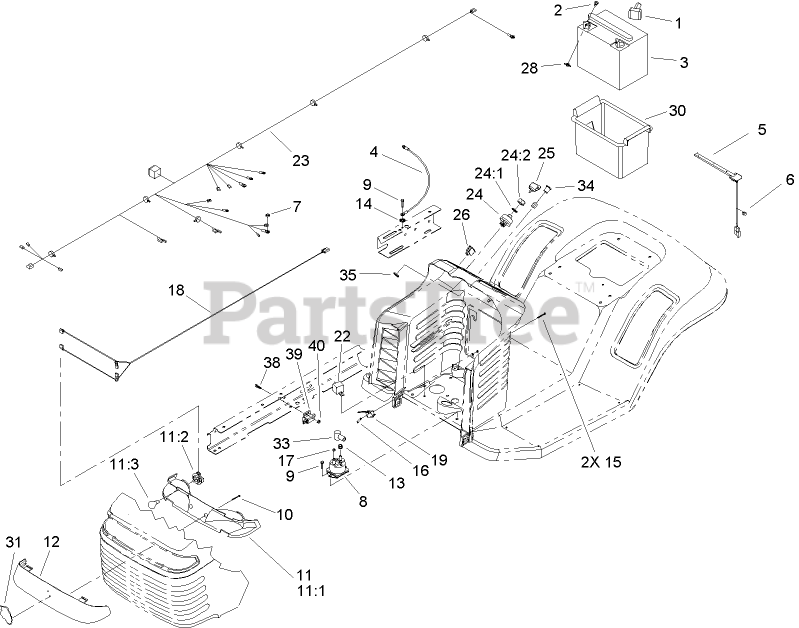

Electrical Component Assembly Parts Diagram

  • Title

1

Toro 28-8080

BOOT-TERMINAL

$27.99

$

Usually ships in 3-6 days

0

2

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

3

Toro 104-1755

See Supercession: 105-1692
(Superseded to 105-1692)

$

$

Not available

4

Toro 44-8110

WIRE ASM

$

$

Not available

5

Toro 38-1420

SWITCH-SEAT

$

$

Not available

6

Toro 702366

CLIP-RETAINER, WIRE

$

$

Not available

7

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

8

Toro 28-4210

SOLENOID

$85.99

$

In Stock, only 4 left!

0

9

Toro 9266714

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

10

Toro 32144-32

SCREW

$2.99

$

Usually ships in 3-6 days

0

11

Toro 88-3970

HEADLIGHT REFLECTOR ASM

$196.99

$

Usually ships in 3-6 days

0

11:1

Toro 93-8741

REFLECTOR-LIGHT

$

$

Not available

11:2

Toro 111686

See Supercession: 116262
(Superseded to 116262)

$60.99

$

Usually ships in 3-6 days

0

11:3

Toro 7228

BULB

$27.99

$

Usually ships in 3-6 days

0

12

Toro 88-3960

LENS-HEADLIGHT

$86.99

$

In Stock, only 1 left!

0

13

Toro 32149-1

NUT-KEPS

$6.99

$

In Stock, only 2 left!

0

14

Toro 3255-7

WASHER-LOCK/EXT

$1.99

$

In Stock, only 3 left!

0

15

Toro 93-0539

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

16

Toro 3290-354

NUT-SPEED

$11.99

$

Usually ships in 3-6 days

0

17

Toro 32149-8

NUT-KEPS

$1.49

$

Usually ships in 3-6 days

0

18

Toro 99-1935

HARNESS-HEADLIGHT

$

$

Not available

19

Toro 88-9932

SWITCH-MICRO

$41.99

$

In Stock, only 1 left!

0

22

Toro 98-7249

RELAY

$25.99

$

In Stock, Qty 10

0

23

Toro 99-6840

DISCONTINUED

$

$

Not available

24

Toro 88-9830

See Supercession: 104-2541
(Superseded to 104-2541)

$43.99

$

In Stock, Qty 20+

0

24:1

Toro 3254-5

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

24:2

Toro 218-461

NUT-HH

$4.49

$

In Stock, only 2 left!

0

25

Toro 63-8360

KEY-IGNITION

$6.49

$

In Stock, Qty 20+

0

26

Toro 92-8875

SWITCH-ROCKER

$18.99

$

In Stock, only 2 left!

0

28

Toro 32103-22

NUT-WING

$2.99

$

In Stock, only 3 left!

0

30

Toro 88-4040

BOX-BATTERY

$47.99

$

Usually ships in 3-6 days

0

31

Toro 95-4248

EMBLEM

$40.99

$

Usually ships in 3-6 days

0

33

Toro 93-3190

BOOT-INSULATOR, TERMINAL

$

$

Not available

34

Toro 95-7652

LIGHT-INDICATOR

$53.99

$

Usually ships in 3-6 days

0

35

Toro 99-6059

See Supercession: 32151-80
(Superseded to 32151-80)

$1.99

$

In Stock, only 4 left!

0

38

Toro 3274-14

SCREW-HSH

$0.99

$

Usually ships in 3-6 days

0

39

Toro 65-7410

See Supercession: 1-513051
(Superseded to 1-513051)

$21.99

$

In Stock, Qty 13

0

40

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0
