71428 (XL 380 H) - Toro Lawn Tractor (SN: 250000001 - 250999999) (2005) 38in Deck Assembly Parts Diagram

Lawn Tractor

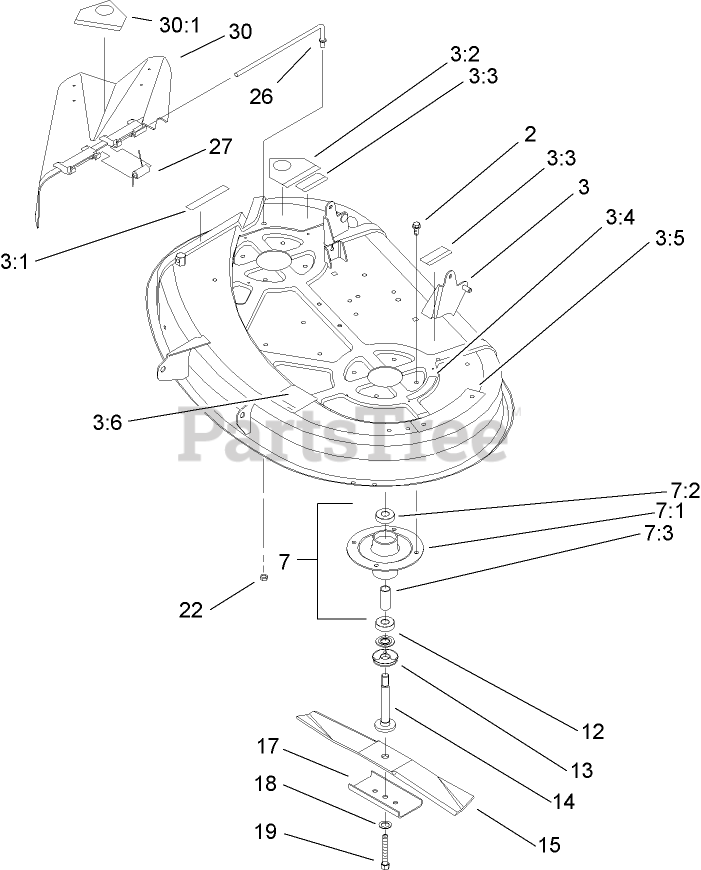

38in Deck Assembly Parts Diagram

  • Title

2

Toro 32144-41

SCREW-TAPTITE

$5.99

$

In Stock, Qty 20+

0

3

Toro 99-5846

DECK ASM

$

$

Not available

3:1

Toro 68-3650

DECAL-DANGER, DEFLECTOR

$18.99

$

Usually ships in 3-6 days

0

3:2

Toro 93-1122

DECAL-DANGER

$10.99

$

In Stock, Qty 9

0

3:3

Toro 55-4300

DECAL-WARNING

$15.99

$

Usually ships in 3-6 days

0

3:4

Toro 68-3660

DECAL-DANGER, SHIELD

$14.99

$

In Stock, only 1 left!

0

3:5

Toro 79-3140

DECAL-DANGER

$20.99

$

Usually ships in 3-6 days

0

3:6

Toro 93-6679

See Supercession: 117-0033
(Superseded to 117-0033)

$8.99

$

Usually ships in 3-6 days

0

7

Spindle ASM

$

$

Not available

7:1

Toro 88-4510

HOUSING-SPINDLE

$116.99

$

In Stock, Qty 10

0

7:2

Toro 100-1048

See Supercession: 38-7820
(Superseded to 38-7820)

$15.99

$

In Stock, Qty 20+

0

7:3

Toro 62-3661

SPACER

$17.99

$

In Stock, Qty 20+

0

12

Toro 80-4380

SPACER

$7.49

$

In Stock, Qty 20+

0

13

Toro 80-4360

SHIELD-BEARING

$21.99

$

In Stock, Qty 20+

0

14

Toro 80-4341

SHAFT-SPINDLE

$57.99

$

In Stock, Qty 10

0

15

Toro 14-7799

BLADE KIT

$78.99

$

In Stock, only 4 left!

0

17

Toro 80-0510-03

STIFFENER-BLADE

$20.99

$

In Stock, Qty 5

0

18

Toro 3290-465

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

19

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

22

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

26

Toro 95-1661

ROD-PIVOT

$23.99

$

In Stock, only 3 left!

0

27

Toro 57-6950

SPRING

$30.99

$

In Stock, Qty 6

0

30

Toro 93-0317

DEFLECTOR ASM

$94.99

$

In Stock, Qty 7

0

30:1

Toro 93-1122

DECAL-DANGER

$10.99

$

In Stock, Qty 9

0
