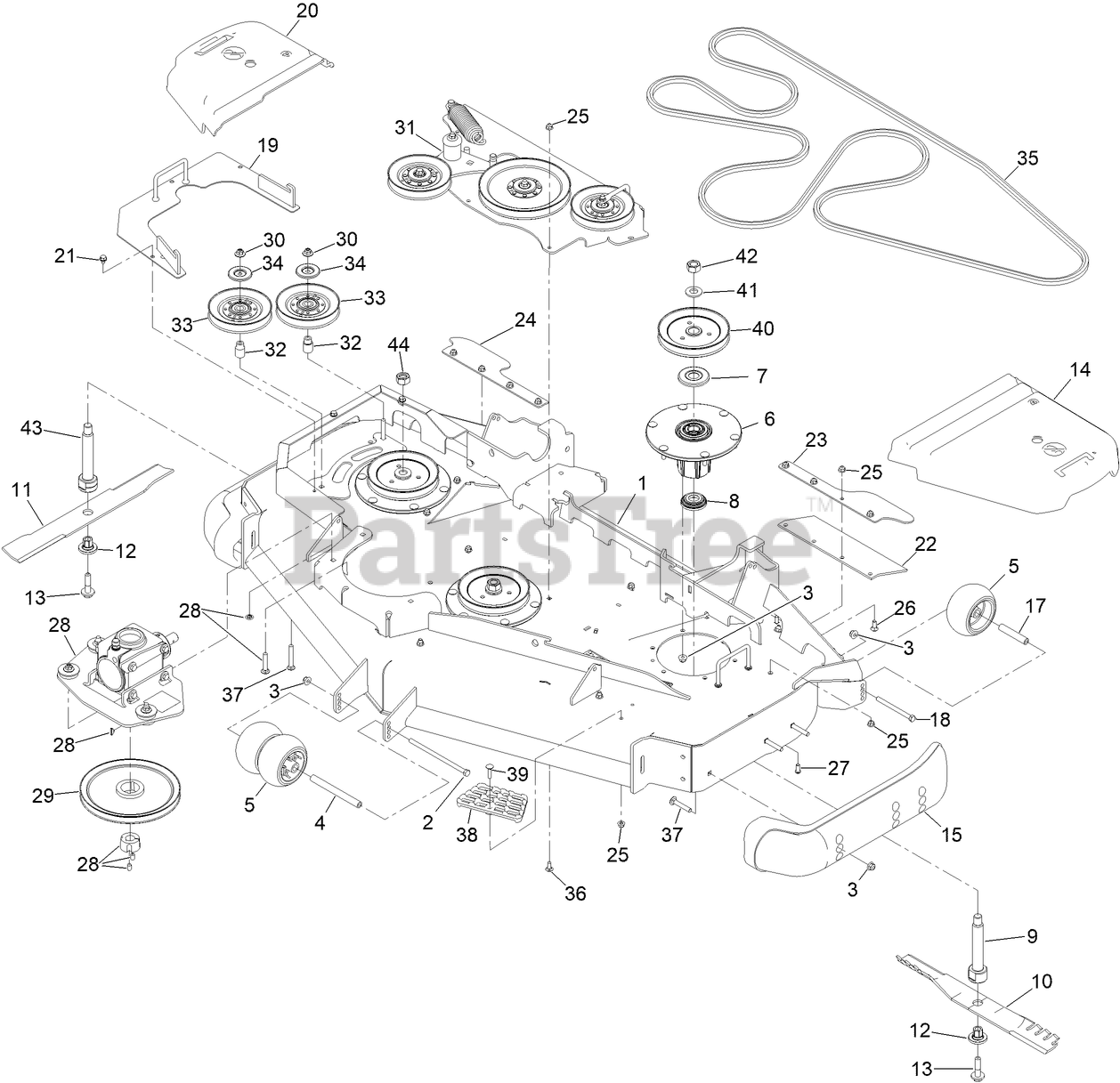

72028 (7500-D) - Toro 60" Z Master Zero-Turn Mower, Rear-Discharge Deck (SN: 418000000 - 418323963) Deck Assembly Parts Diagram

60" Z Master Zero-Turn Mower, Rear-Discharge Deck

Deck Assembly Parts Diagram

  • Title

1

Toro 140-0965

DECK DECAL ASM

$3406.99

$

Usually ships in 3-6 days

0

2

Toro 108-5388

SCREW-HH

$17.99

$

In Stock, Qty 20+

0

3

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

4

Toro 98-5967

SPACER-WHEEL

$17.99

$

In Stock, Qty 20+

0

5

Toro 1-603299

ROLLER-SCALP, ANTI

$26.99

$

In Stock, Qty 20+

0

6

Toro 137-9780

SPINDLE ASM

$168.99

$

In Stock, Qty 12

0

7

Toro 103-1330

GUARD-BEARING, TOP

$5.99

$

In Stock, Qty 20+

0

8

Toro 137-9784

GUARD-BOTTOM

$6.99

$

In Stock, Qty 11

0

9

Toro 138-6045

SHAFT-SPINDLE

$49.99

$

In Stock, only 4 left!

0

10

Toro 140-1241

BLADE-20.50 ATOMIC

$34.99

$

In Stock, Qty 7

0

11

Toro 140-1244

BLADE-20.50 CR LOW FLOW
(Superseded to 163-3493)

$36.99

$

Usually ships in 3-6 days

0

12

Toro 137-9787

BUSHING-HEX

$8.49

$

In Stock, Qty 20+

0

13

Toro 109-9220

SCREW-SEMS

$8.99

$

In Stock, Qty 20+

0

14

Toro 109-6938

COVER-BELT, LH

$109.99

$

In Stock, Qty 20+

0

15

Toro 112-1479

SKID-BUMPER, DECK

$114.99

$

Usually ships in 3-6 days

0

17

Toro 98-7912

TUBE-SPANNER

$15.99

$

In Stock, Qty 20+

0

18

Toro 323-23

SCREW-HH

$5.99

$

In Stock, Qty 20+

0

19

Toro 116-8195-01

COVER-DRIVE REVERSE

$213.99

$

Usually ships in 3-6 days

0

20

Toro 116-8190

COVER-BELT, RH

$47.99

$

In Stock, only 3 left!

0

21

Toro 9266934

SCREW

$10.99

$

In Stock, only 2 left!

0

22

Toro 116-8191

GUARD-TIRE

$18.99

$

Usually ships in 3-6 days

0

23

Toro 135-0401-01

SUPPORT-FLAP, OUTER (LH)

$50.99

$

Usually ships in 3-6 days

0

24

Toro 135-0329-01

SUPPORT-FLAP, OUTER (RH)

$50.99

$

Usually ships in 3-6 days

0

25

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

26

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 5

0

27

Toro 3274-55

SCREW-HSBH

$5.99

$

In Stock, Qty 6

0

28

GEARBOX ASM

Note: Not serviced separately

$

$

Not available

29

Toro 126-2822

PULLEY

$144.99

$

Usually ships in 3-6 days

0

30

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

31

Toro 126-3271

IDLER MOUNT ASM

$

$

Currently unavailable

32

Toro 126-3312

STANDOFF-IDLER

$18.99

$

Usually ships in 3-6 days

0

33

Toro 126-8766

IDLER V

$111.99

$

In Stock, only 2 left!

0

34

Toro 126-8043

SHIELD-DUST

$3.49

$

In Stock, Qty 20+

0

35

Toro 126-7631

BELT-BB

$199.99

$

Usually ships in 3-6 days

0

36

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

37

Toro 3231-31

SCREW-CARR

$7.99

$

In Stock, Qty 20+

0

38

Toro 126-4781-03

STEP-DECK

$32.99

$

In Stock, only 2 left!

0

39

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

40

Toro 138-6058

SHEAVE-BLADE DRIVE 6.50

$25.99

$

In Stock, only 2 left!

0

41

Toro 103-2802

WASHER

$5.99

$

In Stock, Qty 20+

0

42

Toro 116-7306

NUT-HEX

$3.49

$

In Stock, Qty 20+

0

43

Toro 140-1188

SHAFT-SPINDLE, INT. HEX LH THD

$49.99

$

Usually ships in 3-6 days

0

44

Toro 140-1230

NUT-HEX,LH,LOCK

$13.99

$

Usually ships in 3-6 days

0
